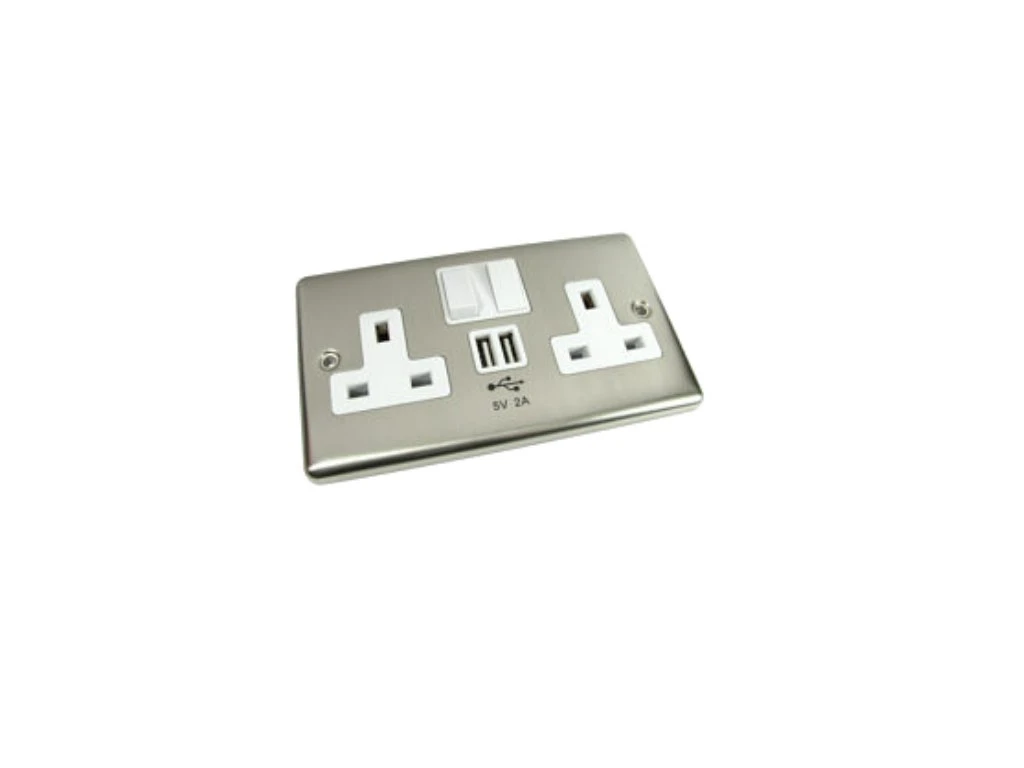

UK Brushed Chrome Wall Socket With 2 Built In USB Charging Ports
Original price was: $28.99.$20.29Current price is: $20.29.
This is a Brushed Chrome UK double wall socket with 2 built in USB charging ports, the USB charge ports can supply a shared maximum current of 2 Amps, ie 2A from 1 port or 1A from both ports. Please read the below instructions carefully before commencing with installation. Failure to install correctly will negate the product warranty.
- Product guarantee 100% satisfaction
- High quality products, low prices.
- High quality products, hassle-free returns.
- Control the delivery date and try to deliver it in the fastest time
– Wall Brushed Chrome USB Socket
The Dual Power Socket with Dual USB Outlet allows you to charge / power 2x USB devices and 2 other electrical items from one double wall plate. The USB charging sockets are compatible with items such as smart phones, tablets and other devices that require charging via a USB port. The USB charging sockets have a total output of 2 amps (combined); if the current exceeds this it will automatically shut down to protect your device.
We recommend using a competent person for installation in accordance with the current edition of the IET Wiring Regulations (BS7671) & Building Regulations. Before use please carry out a socket test. Before carrying out any electrical work, isolate the mains power supply & refer to the fitting instructions. For safe installation & connection ensure that the earth is connected.
UK-WS-USB-BC Key Highlights
- Only suitable for indoor installations
- Wire/wiring colours are in accordance with the current IET Wiring Regulations
- Working voltage: 13A, 250V
- Working temperature -15 to 40 C
- USB Output: 2A, 5V
- UK 3 pin socket output: 13A, 250V
- Manufactured to BS1362 SS145 BSEN 60950 BS5733
- Fits any standard dual back box (minimum depth of 25mm)
Instractions
- Firstly, ensure you isolate the mains power supply and remove the fuse in the fuse box or switch off the circuit breaker in the consumer unit
- Following the diagram over-leaf pass the cable through the entry holes and connect to the appropriate terminal
- If an Earth loop connection is required, use the additional earth terminal block located in the back box
- Re-connect the mains supply when the installation is correctly completed
- Before use we recommend that a socket test is carried out
- DO NOT MEGGER TEST – this will damage the USB charging circuit
