Ubiquiti UniFi In-Wall HD WiFi 5 Access Point (UAP-IW-HD)

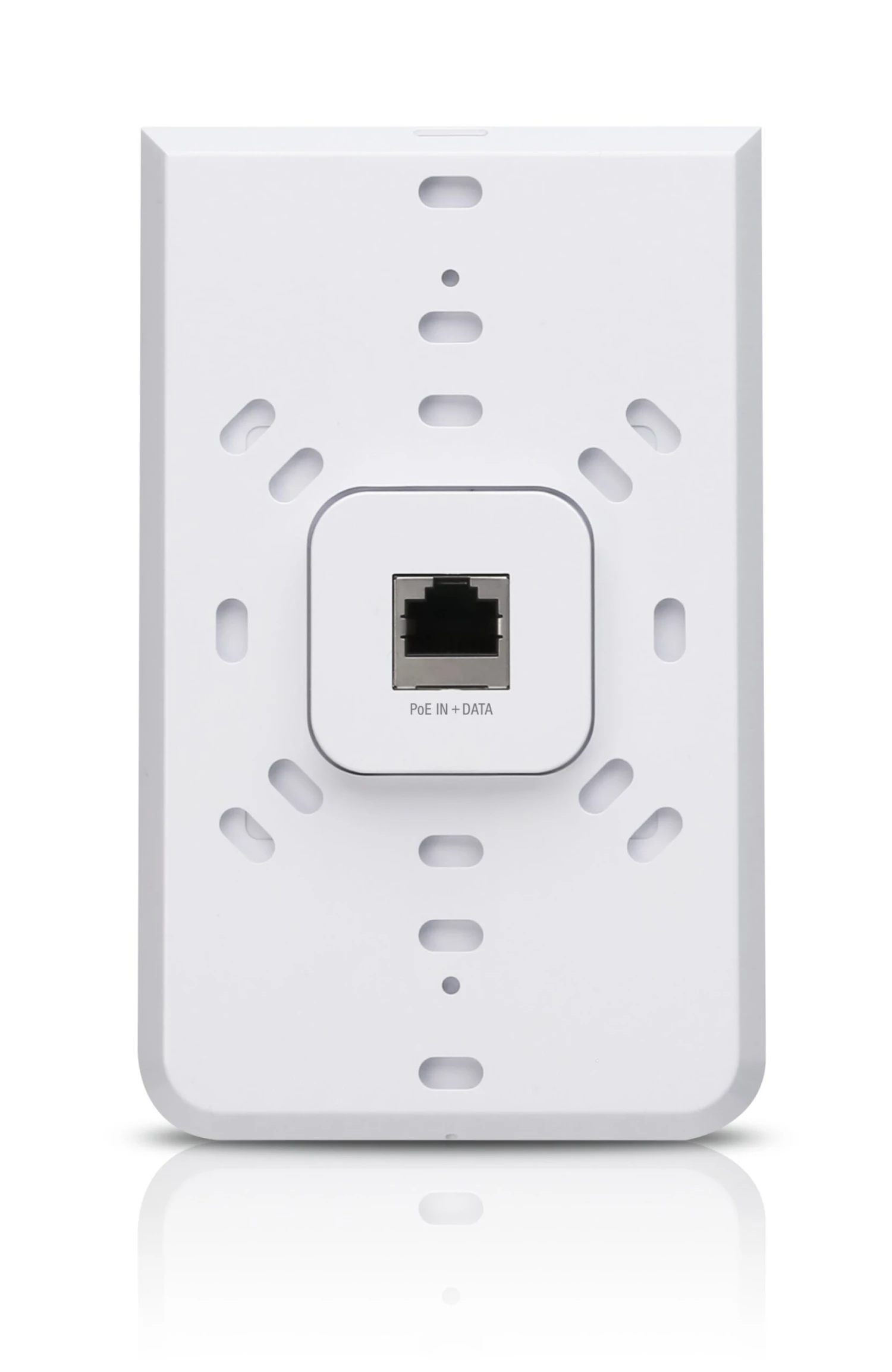

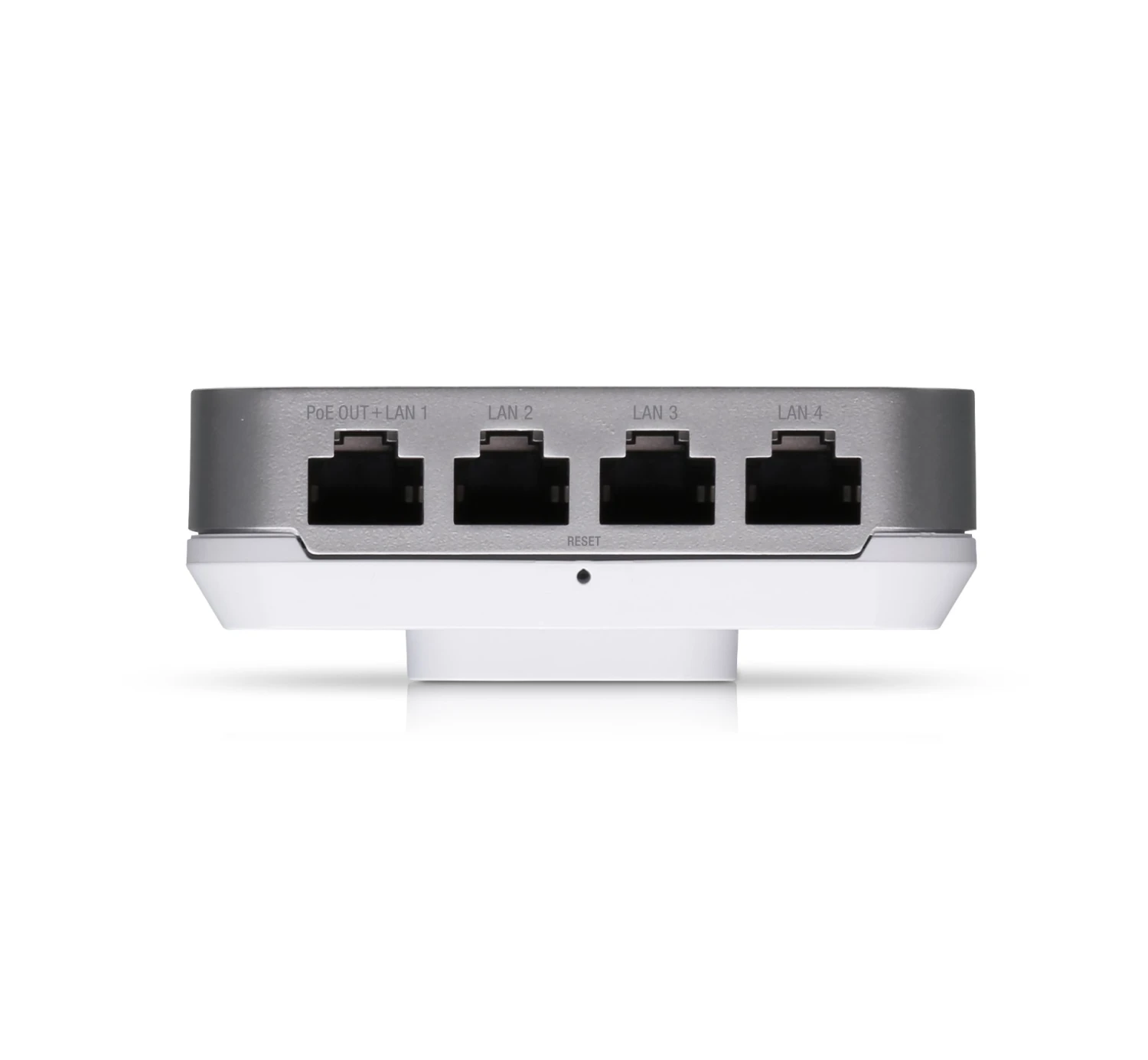

The UAP-IW-HD has 1 x Gigabit PoE port on the back and 4 x Gigabit ethernet ports on the base. Port 1 also provides PoE out. The unit is powered by 802.3af PoE. If PoE passthrough is being utilised, 802.3at PoE is required and is not included with this unit.

The UAP IW HD is the perfect plug-and-play access point for those looking for an easy-to-use, inconspicuous way to broaden their wireless coverage. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.

For help deciding which Ubiquiti Access Point is suitable for you, check out our guide
and for more information about setting up your Access Point,

UAP-IW-HD Key Highlights

• 5 GHz (4×4 MU-MIMO) band with a 1.733 Gbps throughput rate
• 2.4 GHz (2×2 MIMO) band with a 300 Mbps throughput rate
• 5 x GbE RJ45 ports, including 1 x for configurable PoE passthrough (Port 1)
• Powered by PoE (PoE+ required for PoE passthrough)
• 200+ concurrent client capacity
• In-wall mountable

What’s in the Box?

• UniFi UAP-IW-HD
• 1 x Back Plate
• 4 x Wall-Mount Screws
• 2 x Torx Screws
• 2 x Phillips Screws
• 1 x Torx Security Screw
• 1 x Phillips Security Screw
• Installation Guide
