Ubiquiti UFiber NanoG GPON CPE Optical Network Unit

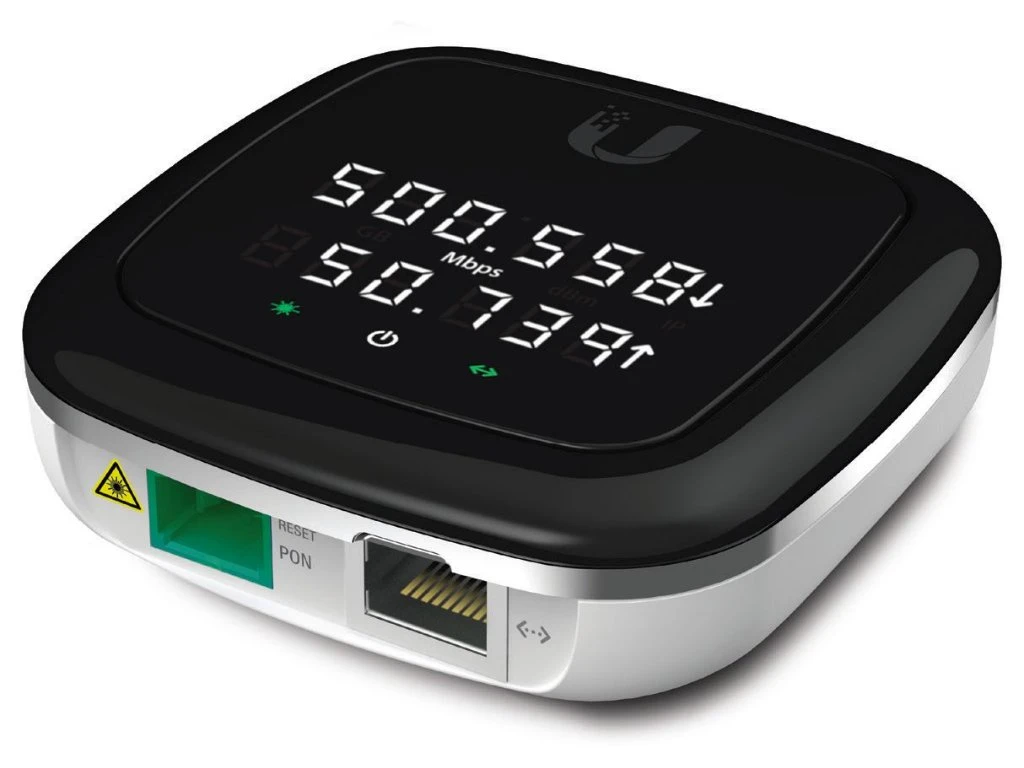

The easy-to-read display on the UF-NANO provides status information for IP address, signal strength, and current throughput.

The Nano G is powered by 24V passive PoE – a single cable to carry both power and data. Up to 128 Nano G devices can be connected to a single GPON port. Supporting GPON links of up to 20 km, the Nano G integrates with the UFiber OLT, UFiber OLT 4 and third-party OLT devices.

Ubiquiti UFiber NanoG GPON CPE Optical Network Unit Key Highlights

• WAN: 1 x GPON port
• LAN: 1 x Gigabit Ethernet port
• GPON Speeds: 2.488 Gbps downstream (RX), 1.244 Gbps upstream (TX)
• Wavelengths: 1490 nm downstream (RX), 1310 nm upstream (TX)
• Display: Digital LED for status reporting
• Max. Power Consumption: 7W
• Power Method: 24V Passive PoE
• Mounting: Wall-Mountable (Indoor)

What’s in the Box?

• 1 x Ubiquiti UF-NANO
• 1 x wall mount bracket
• 1 x PoE injector
• 4 x screws and anchors
• 1 x mains power lead
• 1 x Quick Start Guide
