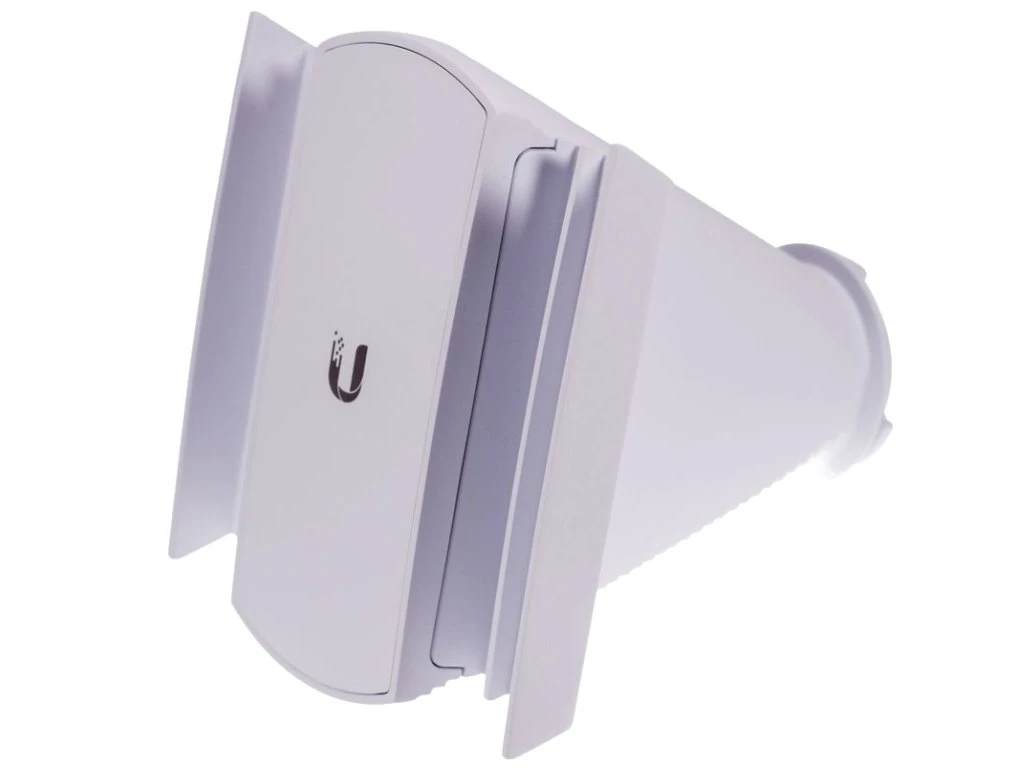

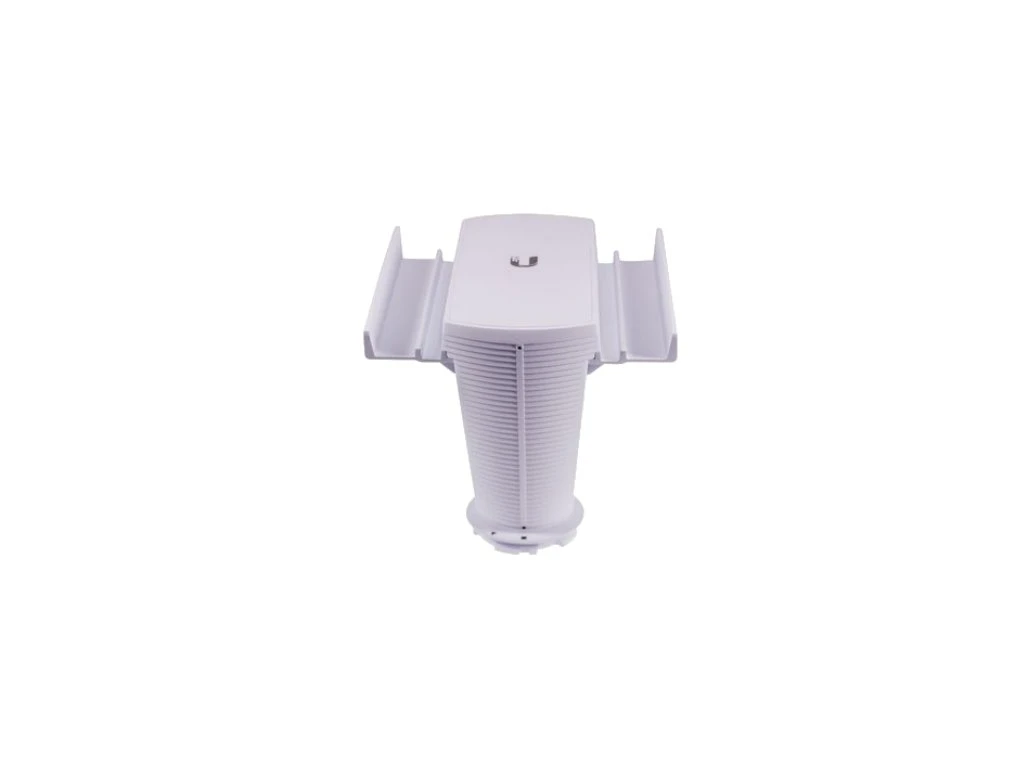

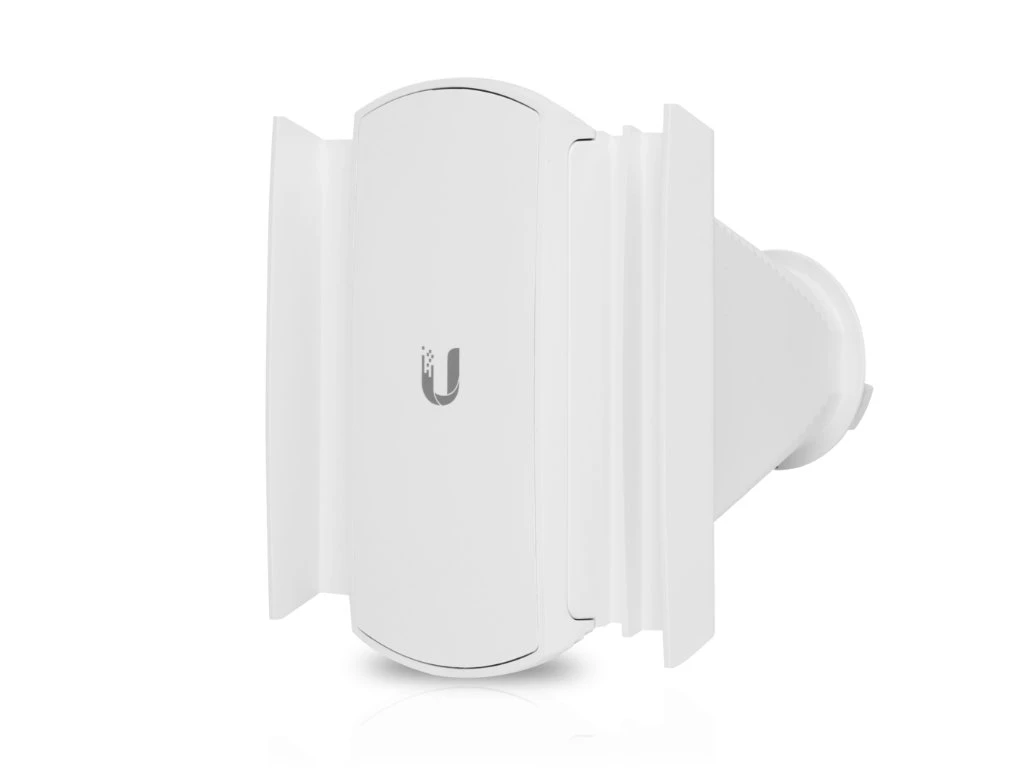

– Ubiquiti HORN-5-60
The Ubiquiti Horn-5-60 is an Isolation Horn that can be used to improve beam shaping for specific deployment and environment needs. It provides good co-location performance without needing to sacrifice gain. This asymmetrical Horn Antenna has attenuated side lobes and extremely low back radiation, offering great front-to-back ratio and the low side lobe radiation. The Horn-5-60 is ideal for cluster sector installations with high co-location requirements.
HORN-5-90 Key Highlights
- Supported Frequency Range: 5.15-5.85GHz
- Gain: 16 dBi
- HPOL Beam-width: 60 Degrees
- VPOL Beam-width: 96 Degrees
- Elevation Beam-width: 30 Degrees
- Maximum VSWR: 2:1
- Wind Loading: 50N @ 200 km/h
- Wind Survivability: 200 km/h (125 mph)
- Polarisation: Dual-Linear
- Cross-Pol Isolation: 17dB
What’s in the Box?
- 1 x HORN-5-60
- Quick Start Guide
