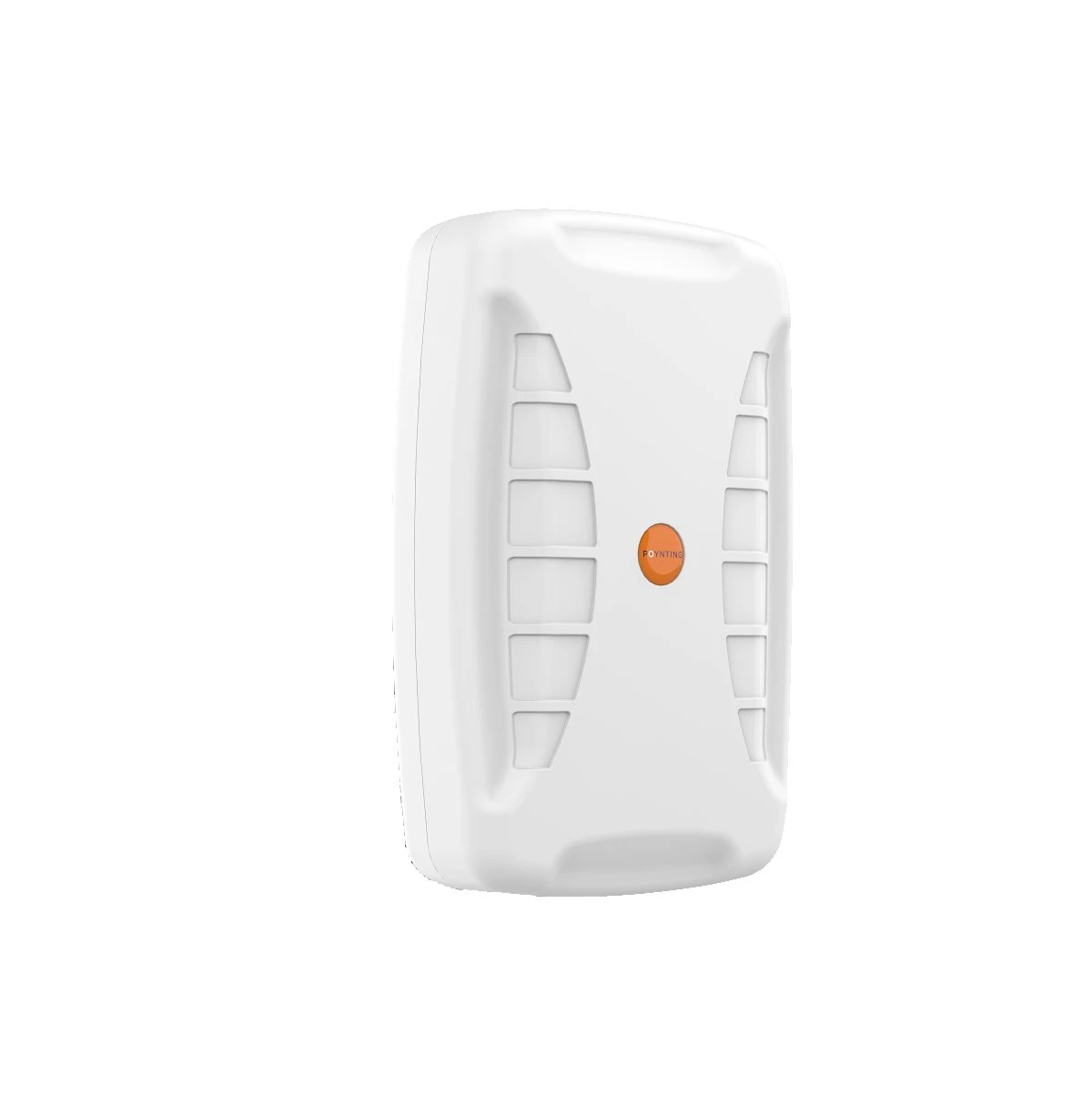

Poynting XPOL-24 Uni-Directional 5G/LTE Antenna (without Cable)
Original price was: $370.99.$95.99Current price is: $95.99.
The XPOL-24 expands Poynting’s very popular Cross Polarised (XPOL) antenna range. The XPOL-24 is their first ever uni-directional 4×4 MIMO 5G/LTE bands with exceptional performance. This is due to the incorporation of advanced meta material technology, making use of an Artificial Magnetic Conductor (AMC) and new registered/patent configuration, which has proven to yield exceptional improvements in bandwidth and gain. The radiation patterns of this antenna are exceptionally well controlled, which further adds to exceptional performance of the antenna.
- Product guarantee 100% satisfaction
- High quality products, low prices.
- High quality products, hassle-free returns.
- Control the delivery date and try to deliver it in the fastest time
– Poynting XPOL-24 5G Antenna (no cable)
The XPOL-24 offers wide-band frequency coverage from 617 to 4200 MHz, with a peak gain of 11dBi across the bands of operation. The antenna performs exceptionally well in the following frequency bands: 617 – 960 MHz, 1710 – 2170 MHz, 2300 – 2700 MHz & 3400 – 4200 MHz.
The exceptional wide-band performance is an important factor for 5G/LTE technologies, as these technologies rely on features such as Carrier Aggregation (CA) to provide the best possible reception and throughput over multiple frequency bands simultaneously. This makes the XPOL-24 the go to solution for current and future 5G/LTE antenna deployments.
Poynting XPOL-24 (without cable) Key Highlights
- X-Polarised 4×4 MIMO for current and future technologies
- Wideband coverage with exceptional performance
- Operates from 617 to 4200 MHz with 11dBi gain
- Consistent broadband performance
- Various mounting options for ease of installation (Wall or pole)
- Weatherproof & waterproof (IP65)
- Connector Type: N-Type (F)
Application Areas
- Outdoor antenna for Fixed Wireless Access (FWA)
- Consumer LTE/5G internet connectivity
- Industrial & Commercial LTE/5G deployments
- Urban and rural household reception enhancement
- Agricultural & Farming LTE/5G data distribution
- Power, Energy & Water telemetry access
- Oil & Gas communication systems
- Repeaters & coverage enhancement amplifiers
What’s in the Box?
- Poynting XPOL-24-V1-02 Antenna
- Pole and wall mount bracket (BRKT-062)
- Please note: the XPOL-24-V1-02 does not come with any factory mounted cable
