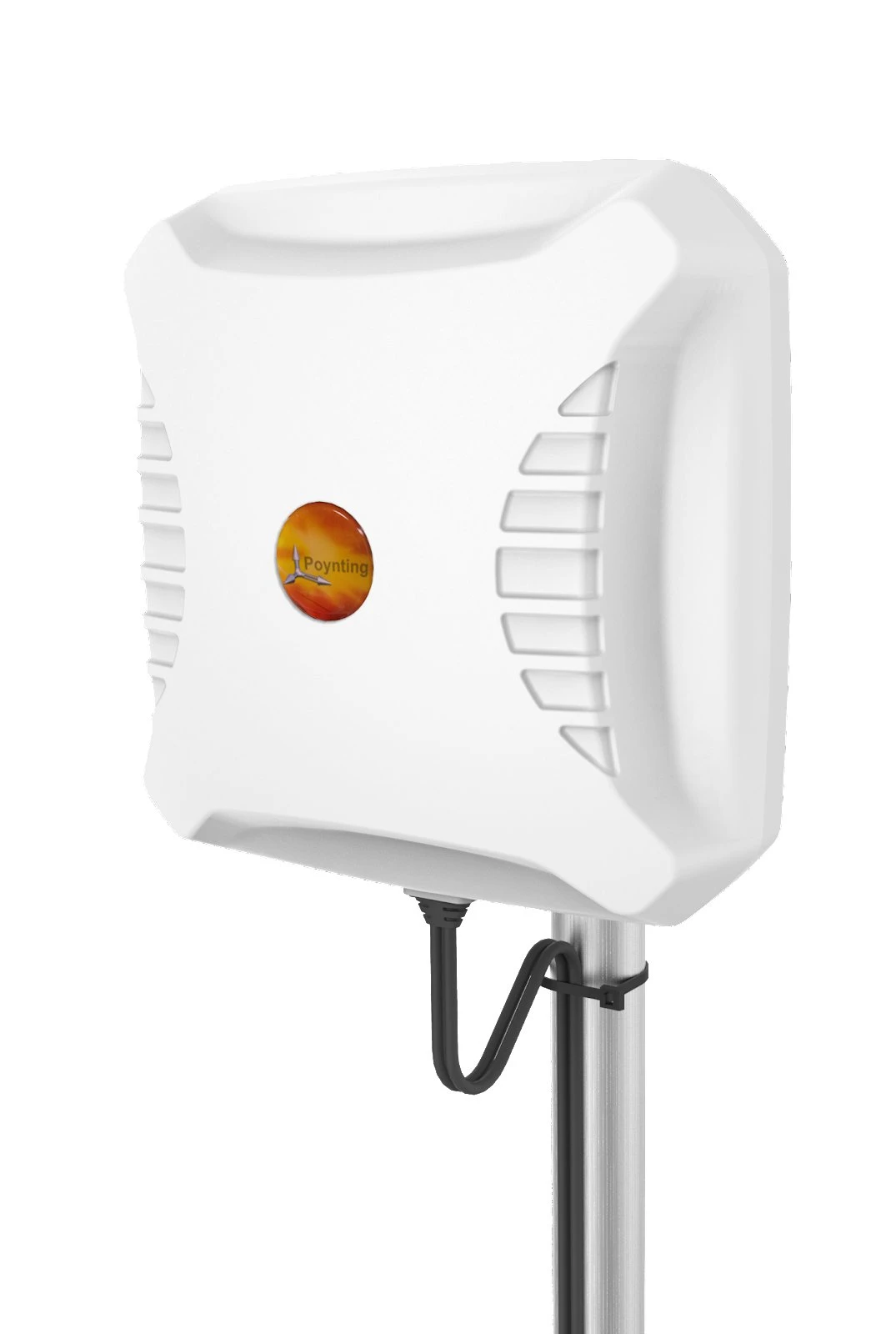

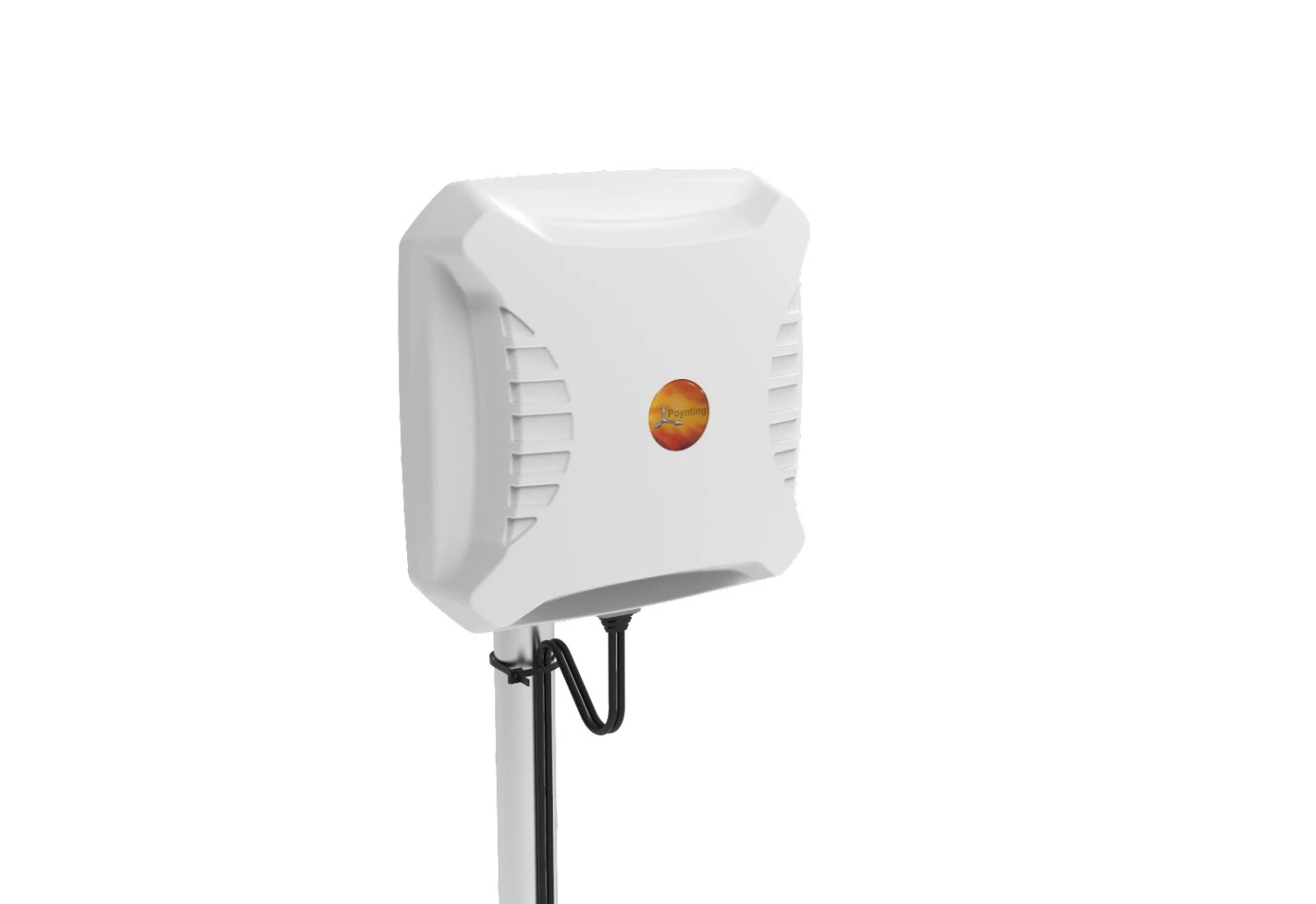

Poynting XPOL-2 V2 Directional Cross Polarised LTE MIMO Antenna

The XPOL-2 antenna increases signal reliability, ensures higher data throughput for users and provides a stable, high quality connection. This improves subscriber user experience and secures client retention. It is ideal for any application using the GSM network (LTE/HSPA/3G/EDGE/GPRS).

Product Dimensions (L x W x D): 259 mm x 259 mm x 85 mm

For further information about whether the XPOL-1 or XPOL-2 is best for you ,

XPOL-2 Key Highlights

• High gain directional antenna (Max Gain: 9 dBi)
• Broadband covering multiple operational frequencies
• Frequency Bands: 698 – 960 MHz; 1710 – 2170 MHz; 2300 – 2700 MHz

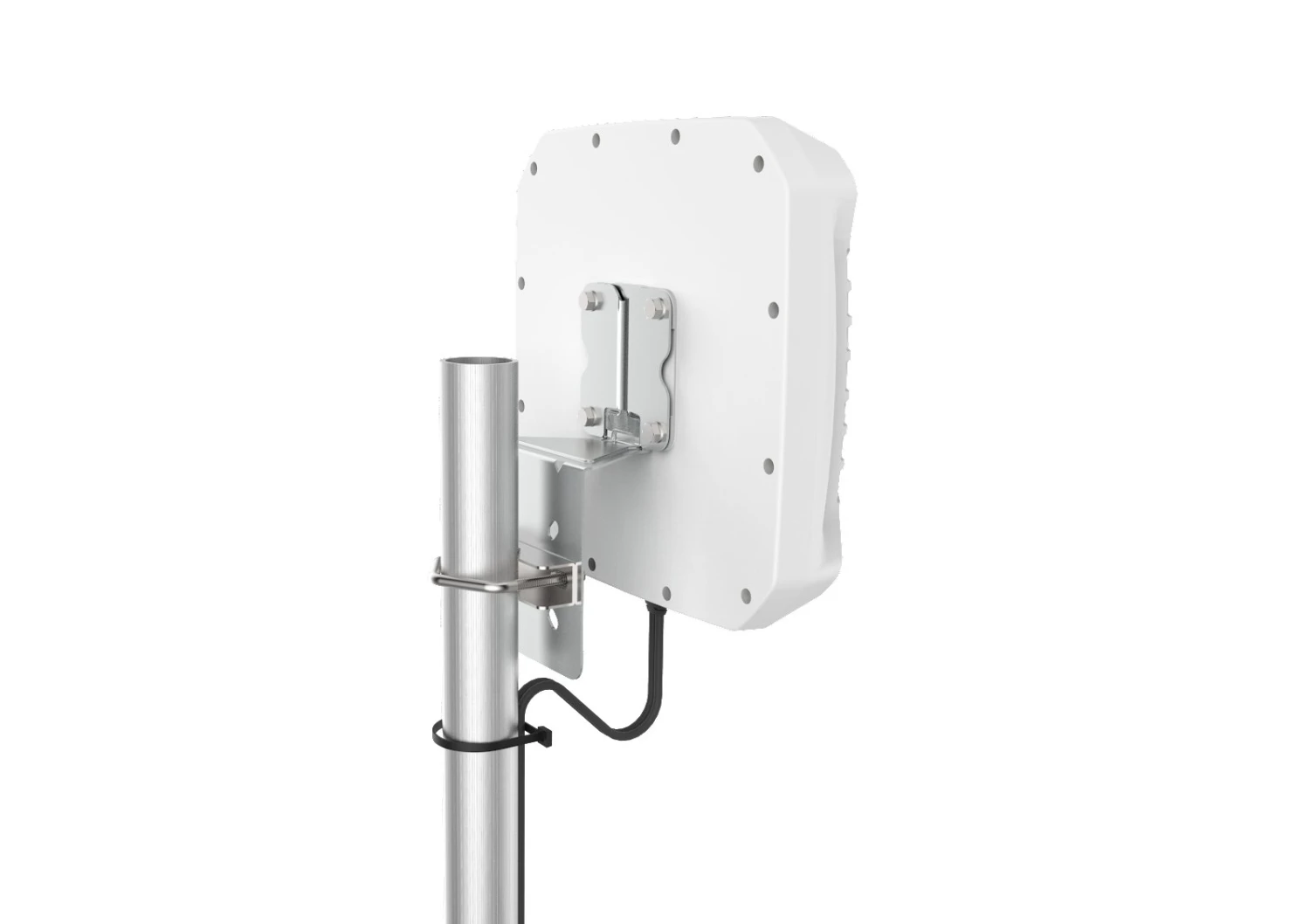

• Wall or pole mountable
• Lightweight
• Waterproof
• Two cross polarised antennas in one enclosure (LTE & WIFI)
• Factory-mounted 5m Cable
• Cable type: HDF 195
• Connector type: 2 x SMA (Male) Gold plated -factory mounted
• IP65 Rating

Application Areas

• Rural and urban areas
• Poor data signal reception (indoor or outdoor)
• Slow data transmission connection areas
• Unstable connection
• Increase system transmission reliability
• LTE fringe areas (close to an LTE area, but just out of reach)

What’s in the Box?

• A-XPOL-0002-V2
• 1 x Z-shaped mounting bracket suitable for wall or pole mount
