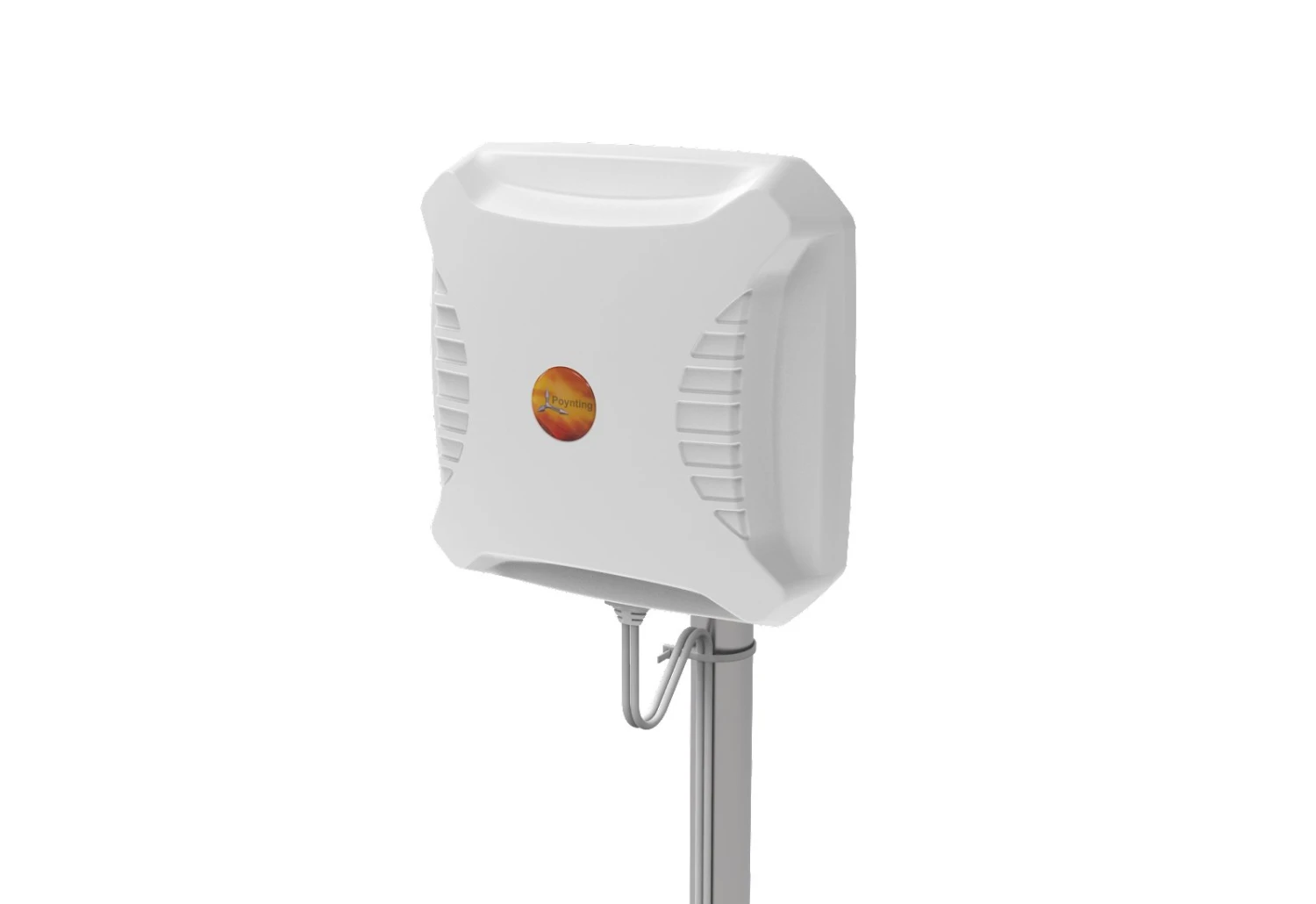

Poynting XPOL-2-5G V3 Directional Cross Polarised LTE MIMO Antenna

The XPOL-2-5G antenna includes newer 3400 – 3800 MHz bands, which were not previously covered by the “V2” antenna. This updated antenna version is suitable for 2G, 3G, 4G as well as 5G. XPOL-2-5G will perform well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands.

For further information about whether the XPOL-1 or XPOL-2 is best for you,

Product Dimensions (L x W x D): 255mm x 255 mm x 80 mm

XPOL-2-5G Key Highlights

• 2-3dB higher over all the bands compared to XPOL-2
• New 3400MHz-3800MHz, 5G band with 11dBi gain
• Frequency Bands: 698-960 MHz; 1710-2700 MHz; 3400-3800 MHz
• Broadband, including the latest 3.5GHz bands
• X-Polarised 2×2 MIMO Antenna

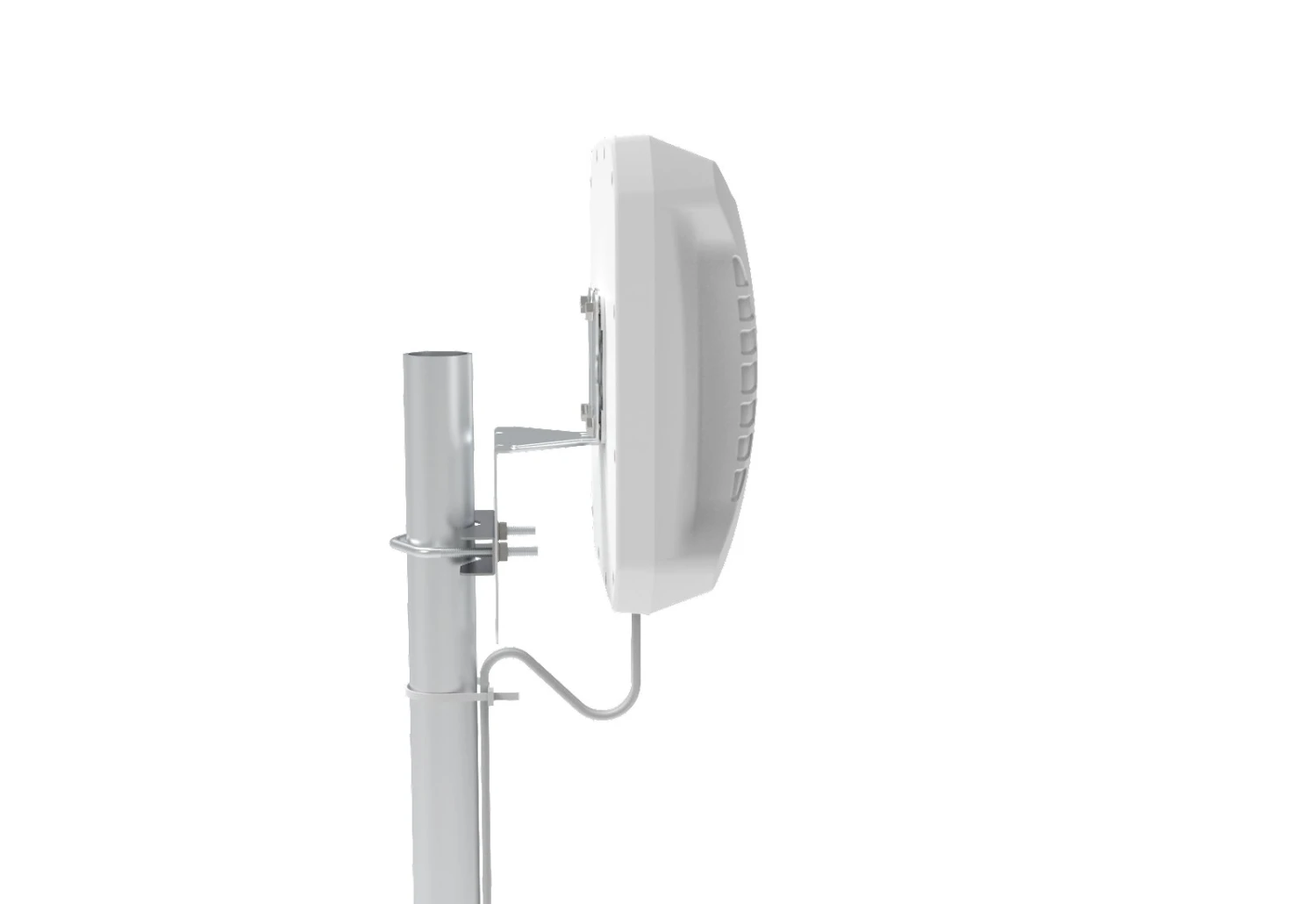

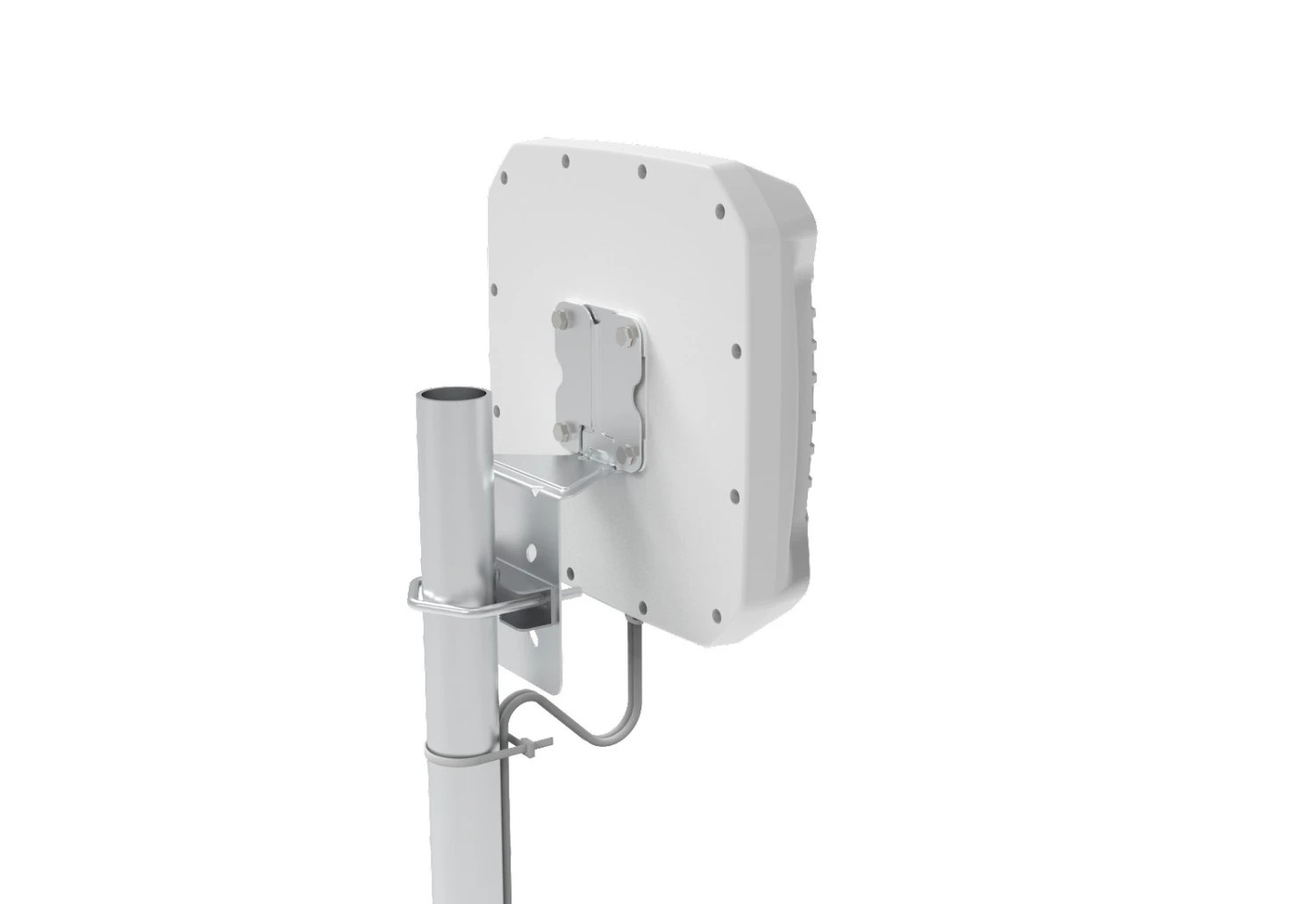

• Wall or pole mountable
• Lightweight & Rugged
• Weatherproof & waterproof (IP65)
• High pattern consistency across bands for 4G/5G carrier aggregation

Application Areas

• 5m of factory mounted SMA cable
• Outdoor antenna for Fixed Wireless Access (FWA)
• Consumer LTE/5G internet connectivity
• Industrial & Commercial LTE/5G deployments
• Urban and rural household reception enhancement
• Agricultural & Farming LTE/5G data distribution
• Power, Energy & Water telemetry access
• Oil & Gas communication systems
• Municipal & Government systems
• Repeaters & coverage enhancement amplifiers

What’s in the Box?

• A-XPOL-0002-V3-01
• Z-shaped Mounting Bracket
• Coax Cable included
• User Guide
