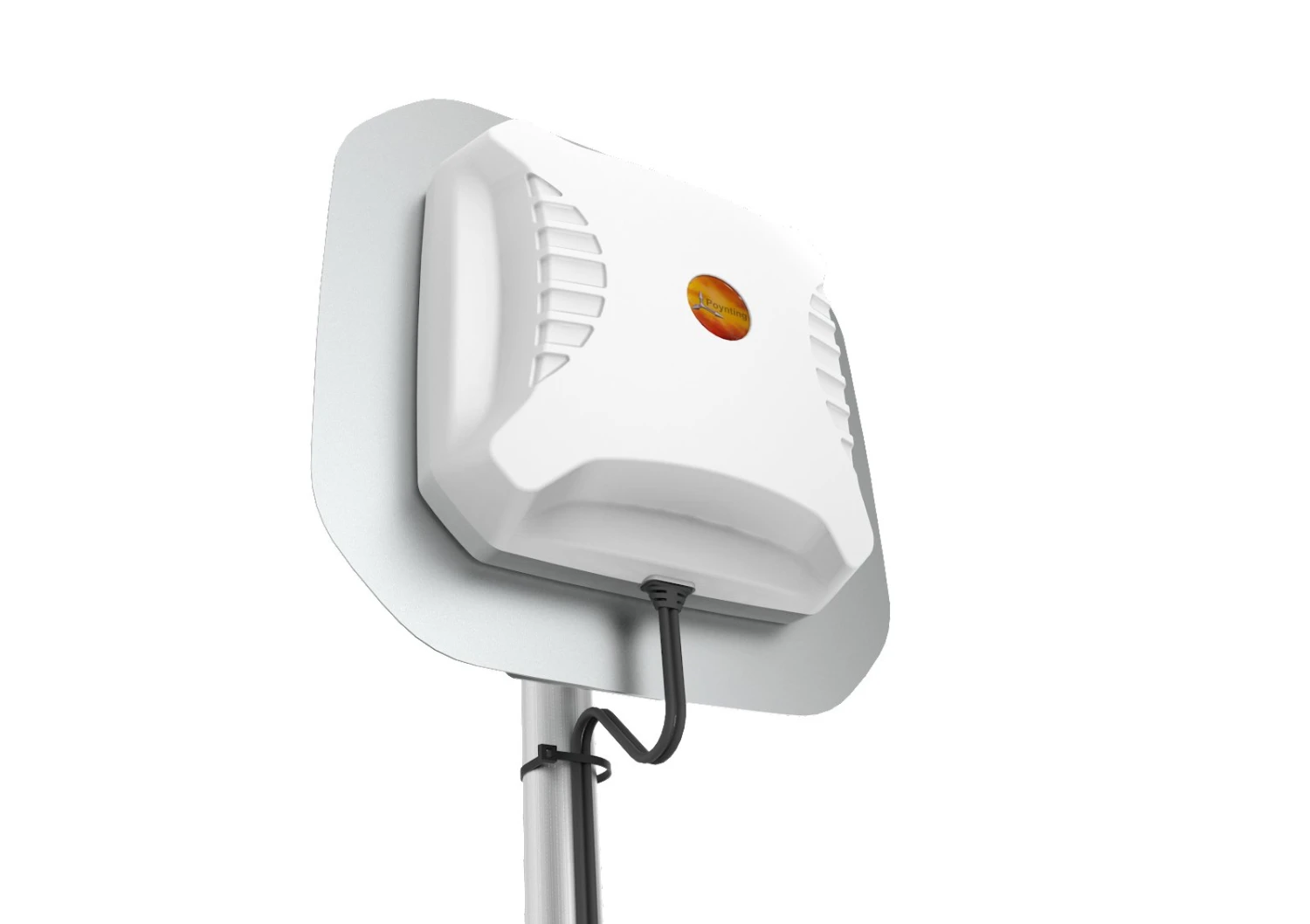

Poynting XPOL-16 X-Polarised High Gain Uni-Directional LTE Antenna

The XPOL-16 is a dual-polarised full LTE band antenna and is wall- or pole-mountable. The antenna is equipped to provide client-side MIMO and diversity support for the networks of today and tomorrow by incorporating two separately fed ultra-wideband elements in a single housing. This is a cost-effective solution for enhancing signal reception and throughput.

The XPOL-16 antenna increases signal reliability, ensures higher data throughput for users and provides a stable, high quality connection. This improves subscriber’s user experience and secures client retention. It is ideal for any application using the GSM network (LTE/ HSPA/3G/EDGE/GPRS).

For further information about whether the XPOL-16 and more from Poynting XPOL range read out blog

Poynting XPOL-16 Uni-Directional LTE Antenna Key Highlights

• Future-proof wideband LTE antenna
• Wideband frequency ranges from 450 – 2170 MHz, includes the new 450 – 470 MHz frequency band
• Two antennas in one enclosure for optimal LTE performance (2×2 MIMO)
• 2 x Ports
• Peak Gain: 8 dBi
• Coax Cable Type: Twin HDF 195
• Coax Cable Length: 5m
• Connector Type: SMA (M)
• Wall or pole mountable
• Weather- and vandal resistant enclosure (IP 65)

Application Areas

• Machine-to-Machine (M2M) applications
• Urban and rural areas
• Poor data signal reception (Indoor or outdoor)
• Slow data transmission connectivity
• Unstable connection
• Increase system transmission reliability
• LTE fringe areas (close to an LTE area, but just out of reach)
• Network operator flexibility – as the antennas are wideband, a new antenna is not needed per network operator – works on most networks

What’s in the Box?

• Poynting A-XPOL-0016 Antenna
• 1 x Z-shaped mounting bracket suitable for wall or pole mount
