Poynting XPOL-1 Omni-Directional LTE Cross Polarised MIMO Antenna

The XPOL-1 Indoor / Outdoor Cellular Antenna is a cost-effective solution that will enhance signal reception and throughput, increase signal reliability, ensure higher data throughput and provide a stable, high quality connection. Ideal for any application using the GSM network (LTE/HSPA/3G/EDGE/GPRS).

Please note, XPOL-1 does not support Three’s new 4G frequency band, whereas the (V2) does.

XPOL-1 dimensions: 204mm x 140mm x 95mm

For further information about whether the XPOL-1 or XPOL-2 is best for you ,

A-XPOL-0001 Key Highlights

• Two antennas in one enclosure
• Medium gain (Max: 4dBi)
• Backwards compatible with 3G/2G technologies
• Wideband – covers wide frequency band
• Frequency Bands: 790 – 960 MHz & 1710 – 2700 MHz

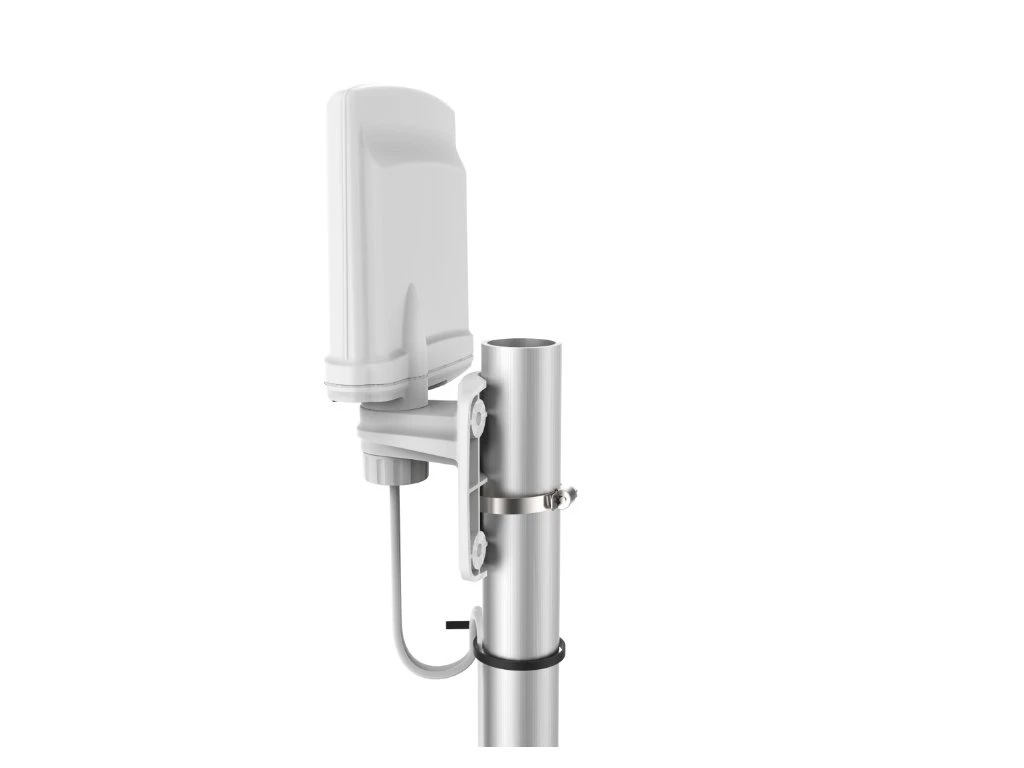

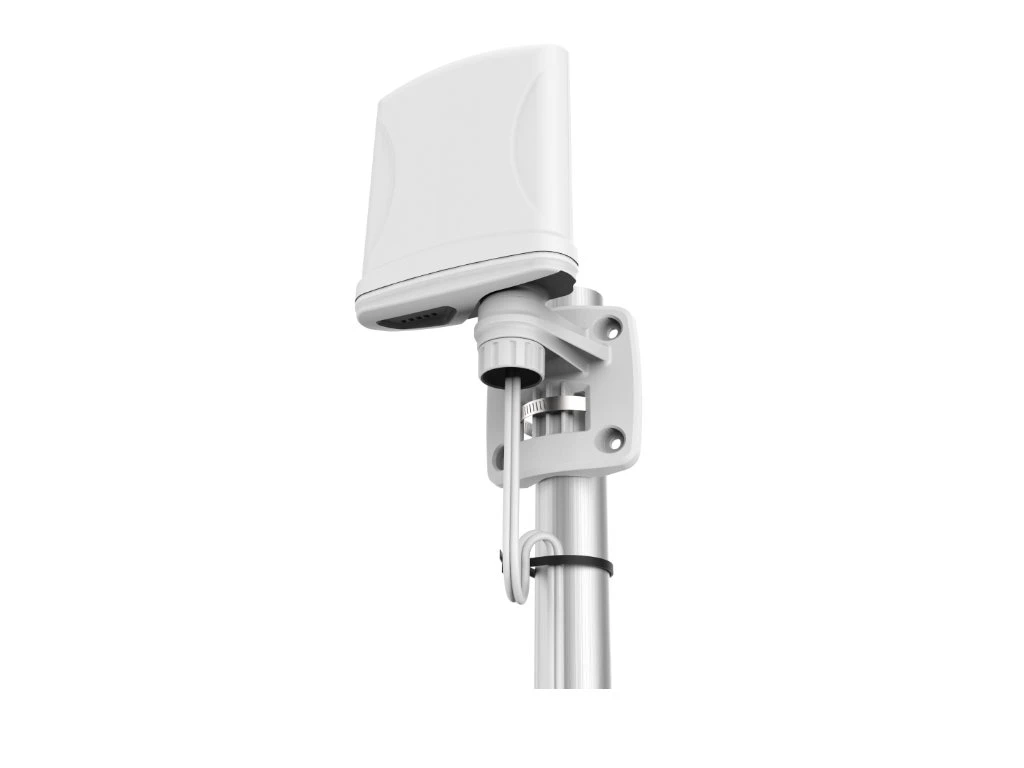

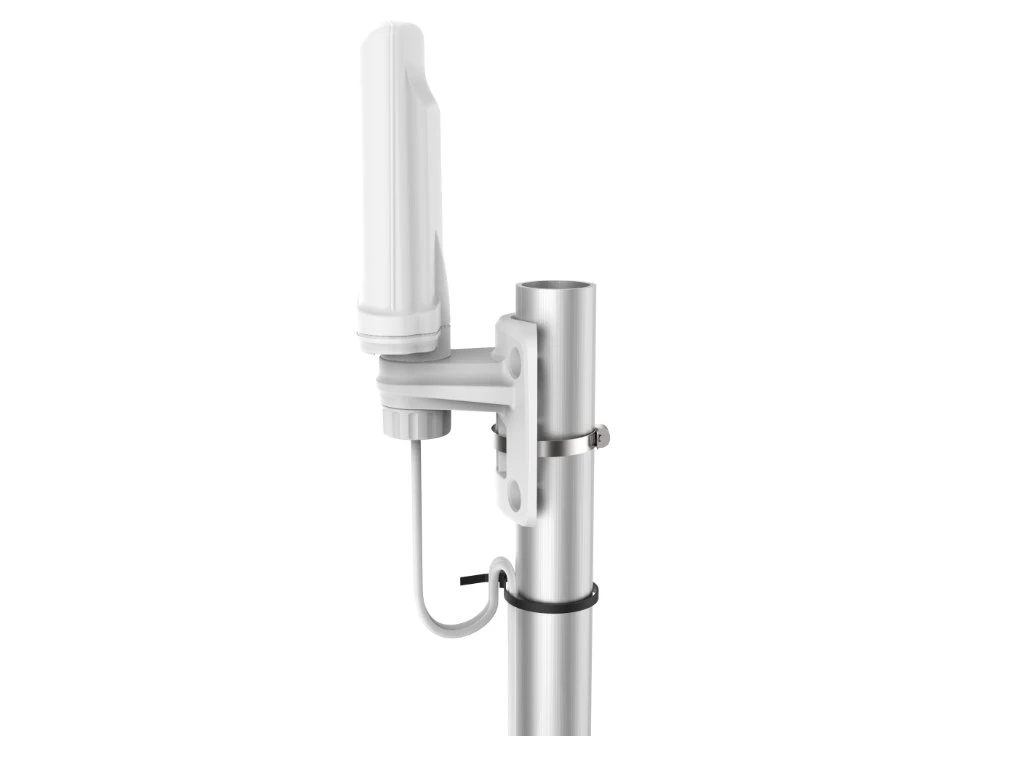

• Window, wall or pole mountable
• Lightweight
• Weather and vandal-proof enclosure
• 2 x 5m Cable
• Cable type: HDF 195
• Connector type: 2 x SMA (Male) – factory mounted

Applications

• Urban and suburban areas
• Residential and Small & Medium Business
• Small offices in semi underground areas
• Poor data signal reception (indoor or outdoor)
• Slow data transmission connection
• Unstable connection
• LTE fringe areas (close to an LTE area, but just out of reach)

What’s in the Box?

• Antenna: A-XPOL-0001
• Mounting Brackets: pole, wall and window suckers
