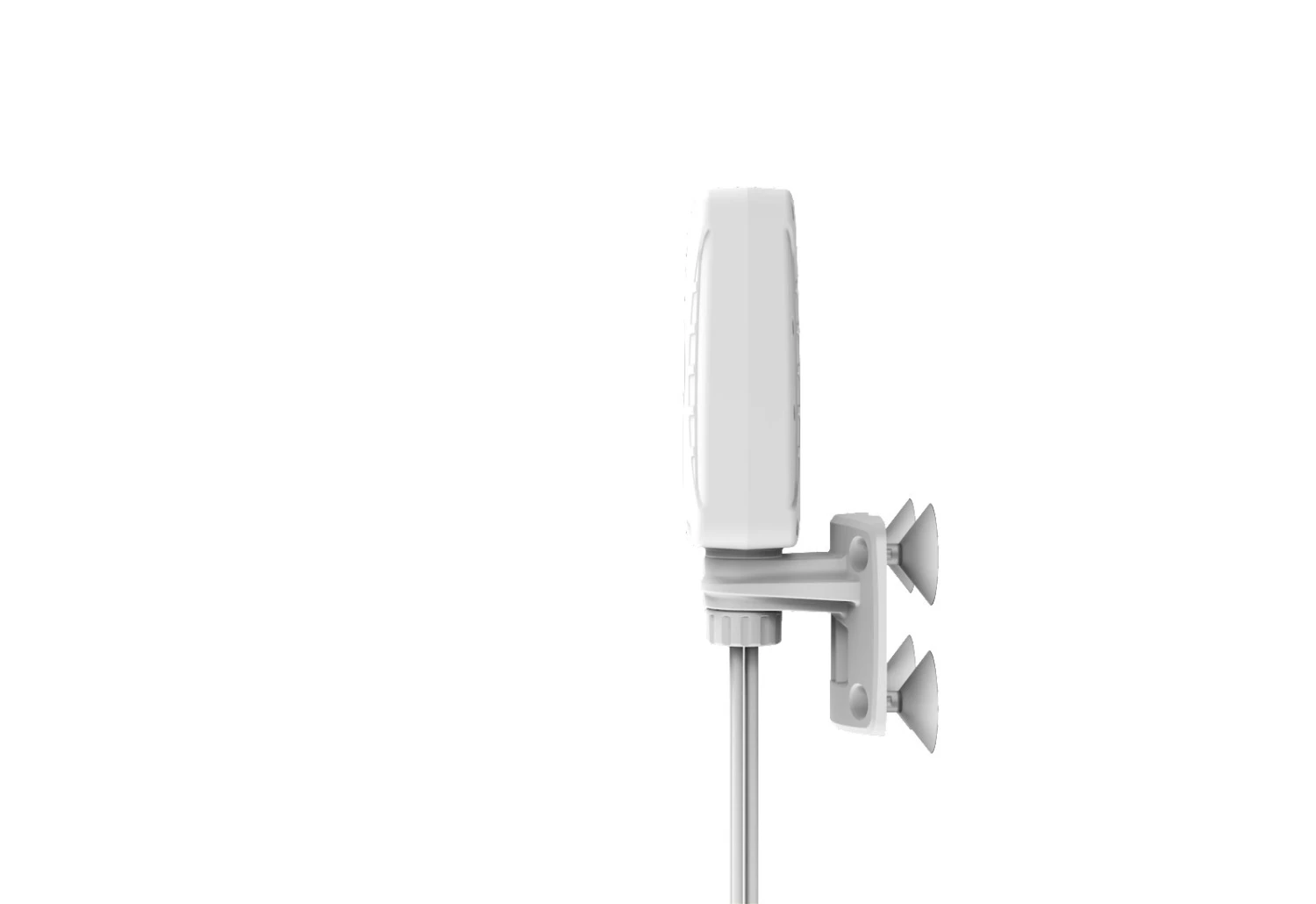

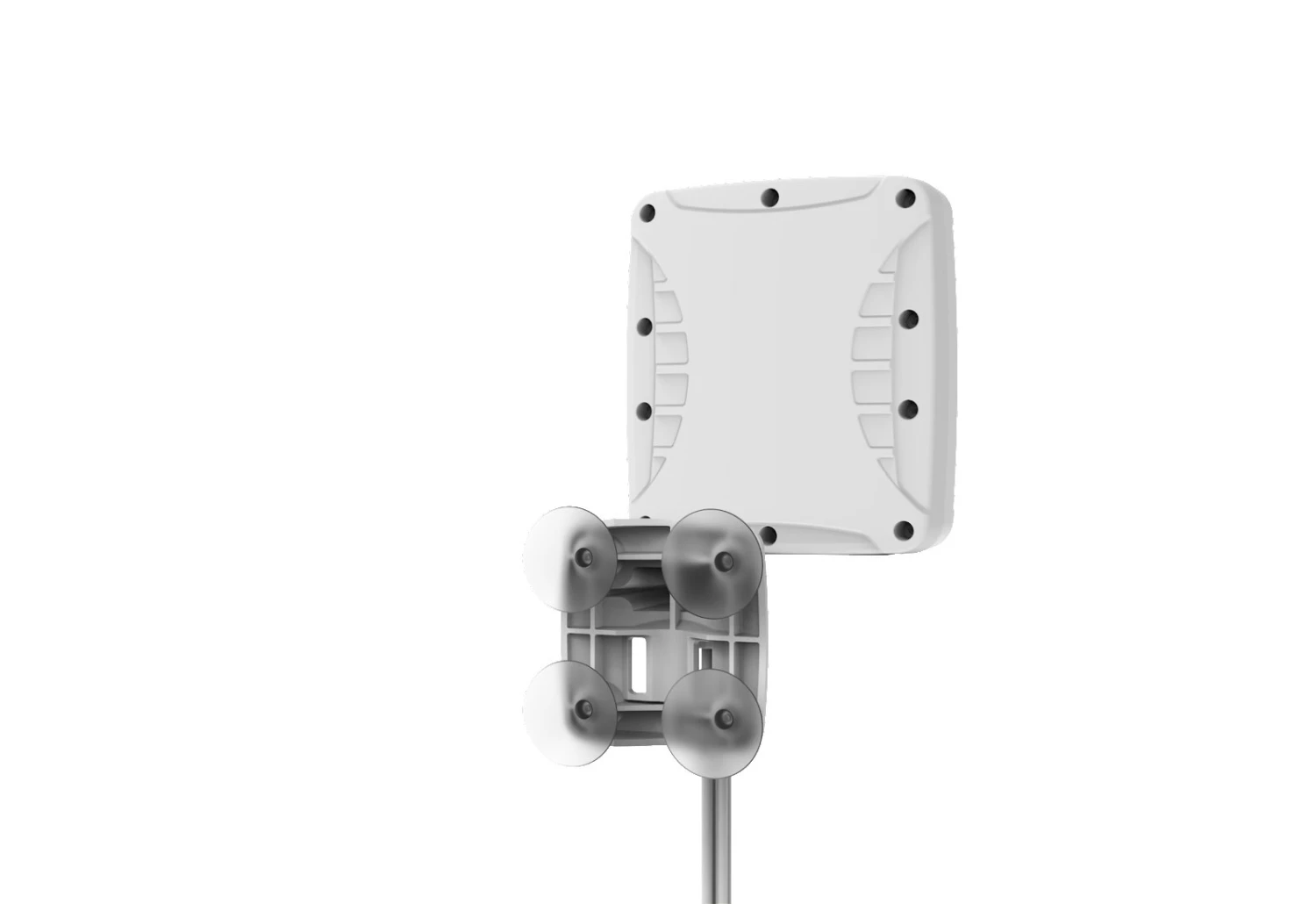

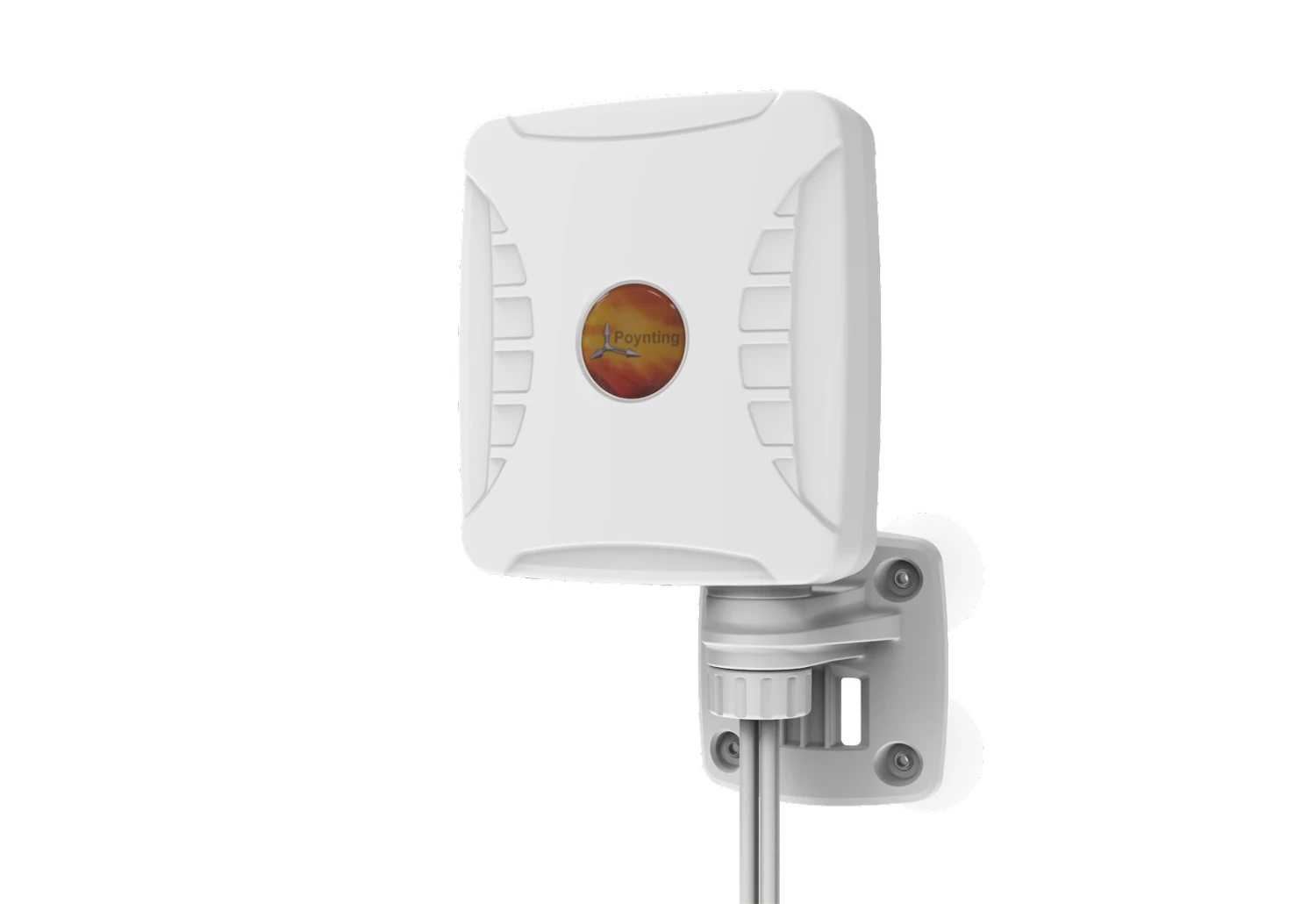

Poynting XPOL-1-5G 4×4 MIMO Cross Polarised Antenna

The XPOL-1-5G includes newer 3400-3800 MHz bands, as well as the in demand, lower 698 MHz band.The radiation patterns of the XPOL-1-5G are omni-directional and exceptionally well controlled. This makes the antenna suitable for most application areas, such as urban, rural, agricultural and commercial, to ensure the best possible coverage over a large area. The robust mechanical enclosure design makes the XPOL-1-5G weather, dust and vandal resistant and gives the antenna an IP65 rating; suitable for harsh environments.

XPOL-1 dimensions: 247mm x 157mm x 88mm

A-XPOL-0001-V2-41 Key Highlights

• New 3400 to 38–MHz, 5G band
• Broadband, including the latest 3.5GHz bands
• X-polarised 4×4 MIMO Antenna
• Wall or pole mountable
• Lightweight and Rugged
• High pattern consistency across bands for 4G/5G carrier aggregation
• Weather and vandal-proof enclosure
• Cable type: HDF 195
• Connector type: 4 x SMA (Male) – factory mounted
• Medium gain Antenna of 3 dBi
• 2×2 and 4×4 MIMO derivatives
• Works on all cellular LTE networks across the world; Including new 3.5GHz 5G/CBRS band
• DC grounded to prevent static build-up discharge from damaging router equipment

Applications

• Outdoor antenna for Fixed Wireless Access (FWA)
• Urban and Rural household reception enhancement
• Industrial and Commercial LTE/5G data distribution
• Agricultural and Farming LTE/5G data distribution
• Power, Energy and water telemetry access
• Oil and Gas communication systems
• Municipal and Government systems
• Repeaters and coverage enhancement amplifiers
• Wall, Pole and window Mounting

What’s in the Box?

• 1 x Poynting A-XPOL-0001-V2-41 Antenna
• 1 x pipe clamp
• 4 x Window suckers
• 4 x Wall knock-in screws
• User guide
