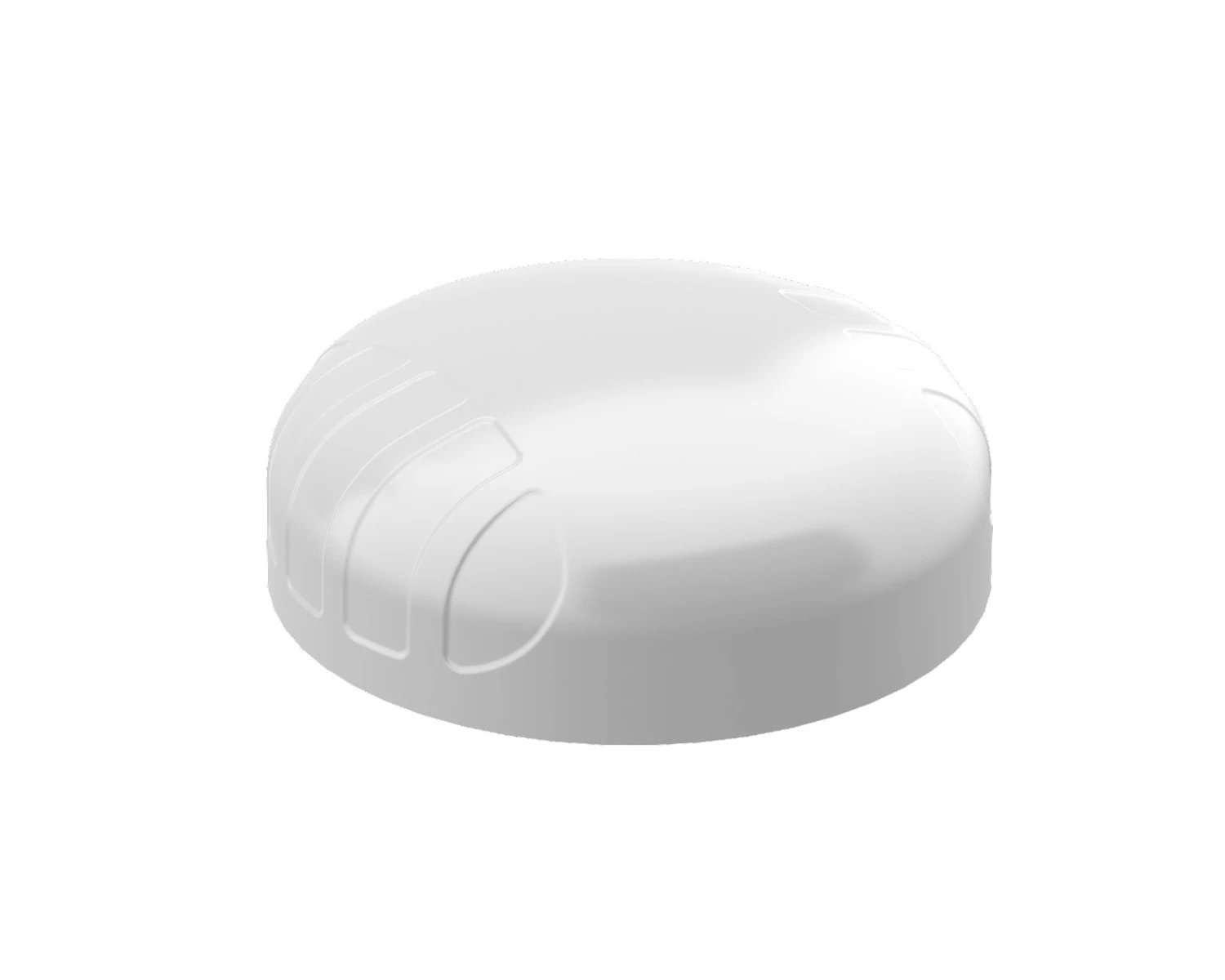

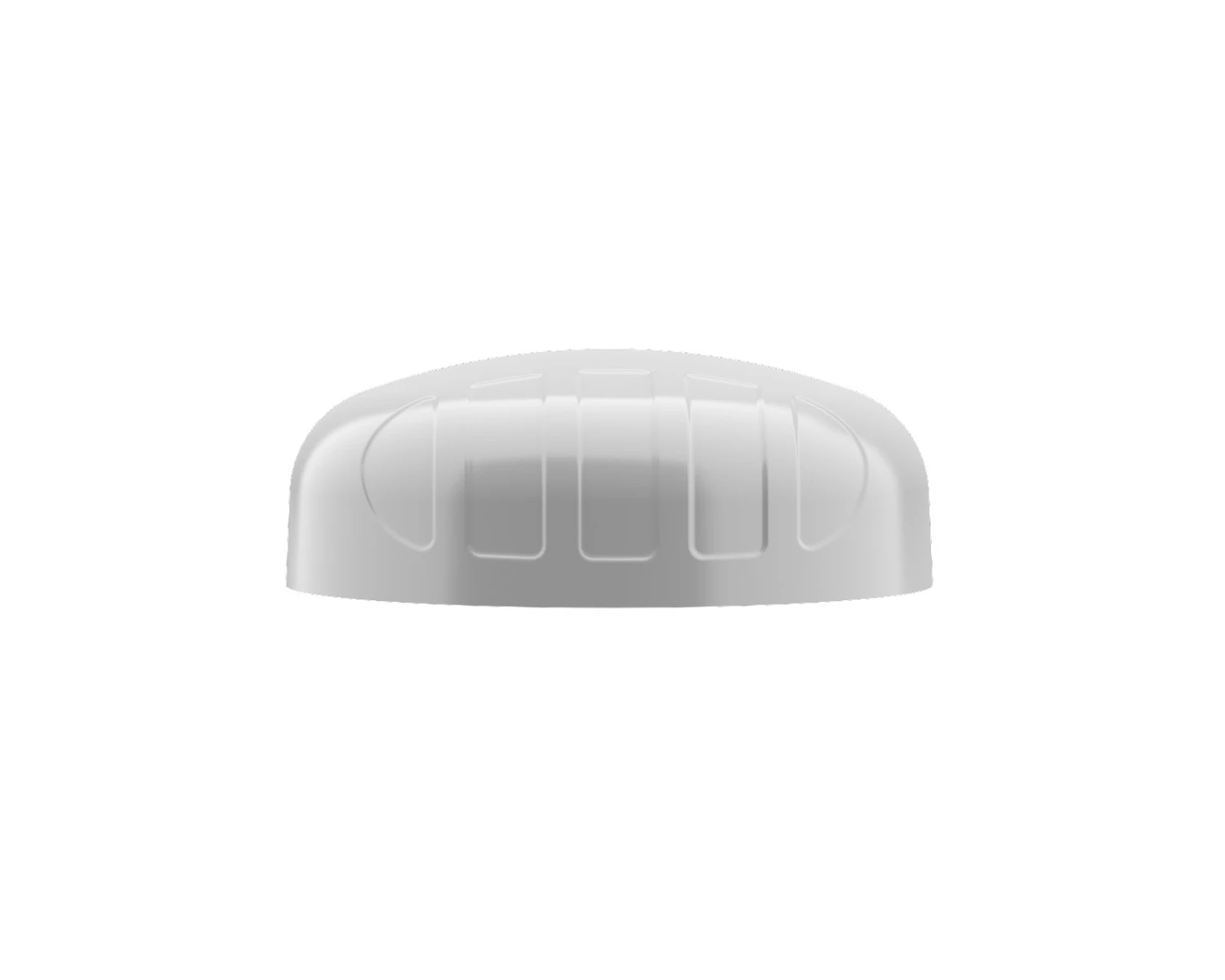

Poynting Vandal Resistant PUCK-12-W Omni-Directional IOT M2M Antenna
Original price was: $50.99.$35.69Current price is: $35.69.
Poynting’s PUCK-12-W consists of a 2-in-1 antenna system within a single housing. It provides two separate dual-band WiFi antennas offering concurrent 2.4GHz and 5GHz bands, capable of 802.11n and 802.11ac/ax with 2×2 MIMO.
- Product guarantee 100% satisfaction
- High quality products, low prices.
- High quality products, hassle-free returns.
- Control the delivery date and try to deliver it in the fastest time
– Poynting PUCK-12-W Antenna
The PUCK-12-W’s radiation patterns of all radiating elements provide a good balance between omnidirectionality, pattern diversity and good radiation abilities at the desired elevation. This antenna gives great performance at the higher frequency bands.
For further information about our antennas see our blogs for and
Product dimensions: Ø99.3 mm x h 36 mm
PUCK-12-W Key Highlights
- Industrial Omni-Directional Wi-Fi PUCK Antenna
- Small and low-profile
- 2-in-1 IOT/M2M multi frequency
- 2X2 Dualband WiFi (MIMO)
- 2.4 & 5 GHz
- Gain (Max): 7 dBi
- SMA-RP
- Ground plane independent – performs consistently with and without a ground plane
- Robust, vandal resistant and water proof (IP68) antenna
- Fire Resistant (complies with ECE-R 118.02)
- UV stable enclosure
- Versatile mounting options for easy installation
- Mounting Type: Ø20 Threaded Spigot, Pole, Wall, Surface and Magnetic mount (not all included – see ‘What’s in the Box?’ section below)
Application Areas
- Smart Utilities: Smart Power, Gas & Water Metering
- Smart Buildings: Climate control, access control, security, irrigation
- Digital Signage
- Warehouses & Logistic systems
- Industrial factory automation, robotic machinery and other M2M systems
- Transport (Busses, Utility & Public Safety)
- Mining Vehicles & Machinery communications, telemetry and automation (M2M & IoT)
- Agricultural machinery
- Marine: small boats, yachts near to coastlines or inner waters
What’s in the Box?
- Antenna: PUCK-12-W
- Mounting brackets: Ø20 Threaded Spigots (Up to 60mm clamping thickness) with Surface and Magnetic mounts
- Adapters: 2x RPSMA(m) To SMA (f)
