Poynting RIPPLE-8 X-Polarised Omni-Directional 5G/LTE 8×8 Antenna

The RIPPLE-8 is a marine antenna enclosure designed to fit a variety of router and networking modules, transforming the antenna enclosure into a CPE (Customer Premises Equipment) device, just add your own LTE/5G routers.

This antenna contains 8 cross-polarised, omni-directional antennas with 4 x vertically and 4 x horizontally polarised. The antennas offer wideband coverage from 617 to 7200 MHz, with a peak gain of 9.5 dBi which makes it ideal for multi-router LTE & 5G bonded and aggregated deployments.

The RIPPLE-8 can withstand adverse weather conditions with its weatherproof IP65 rating. The antenna enclosure was designed specifically for marine & coastal applications.

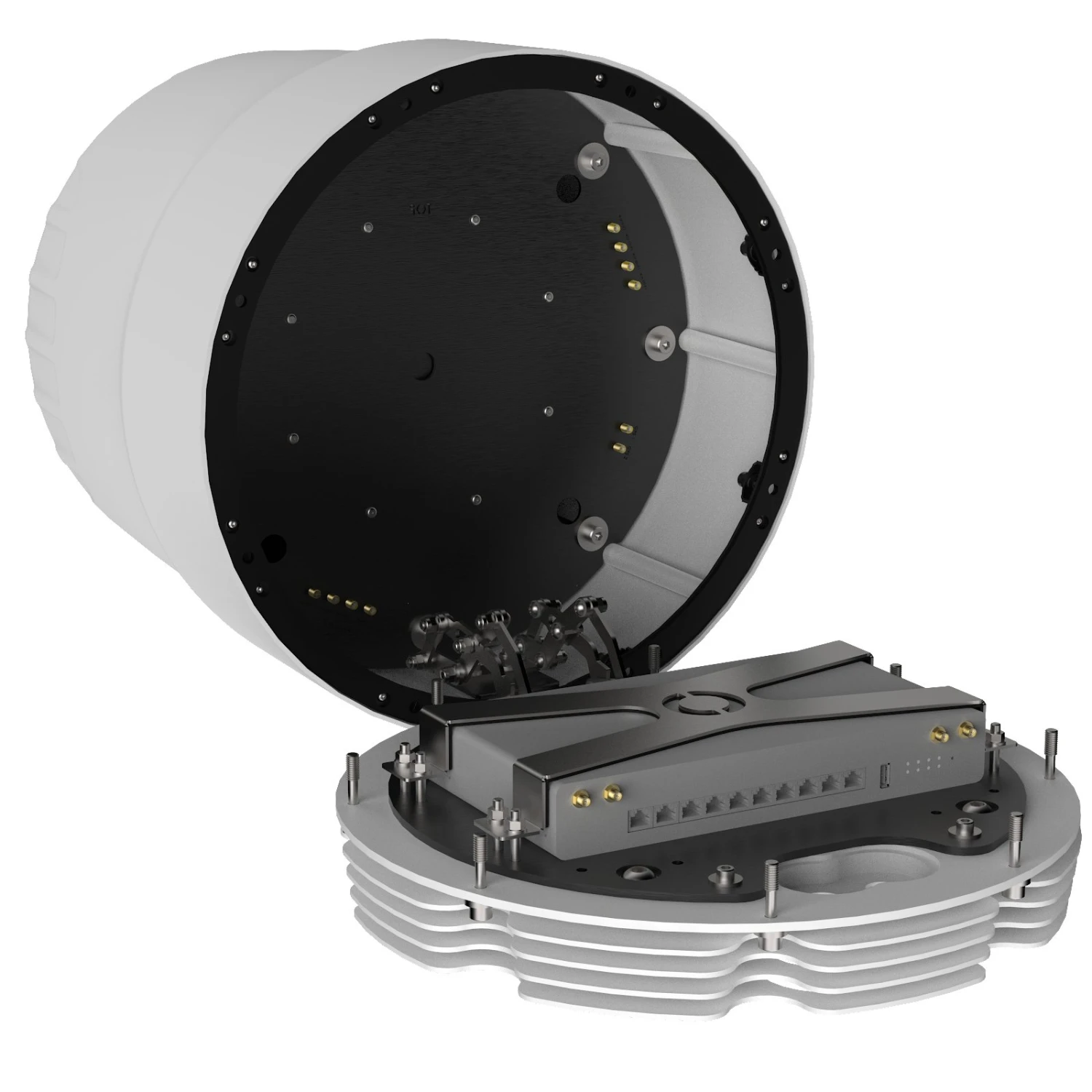

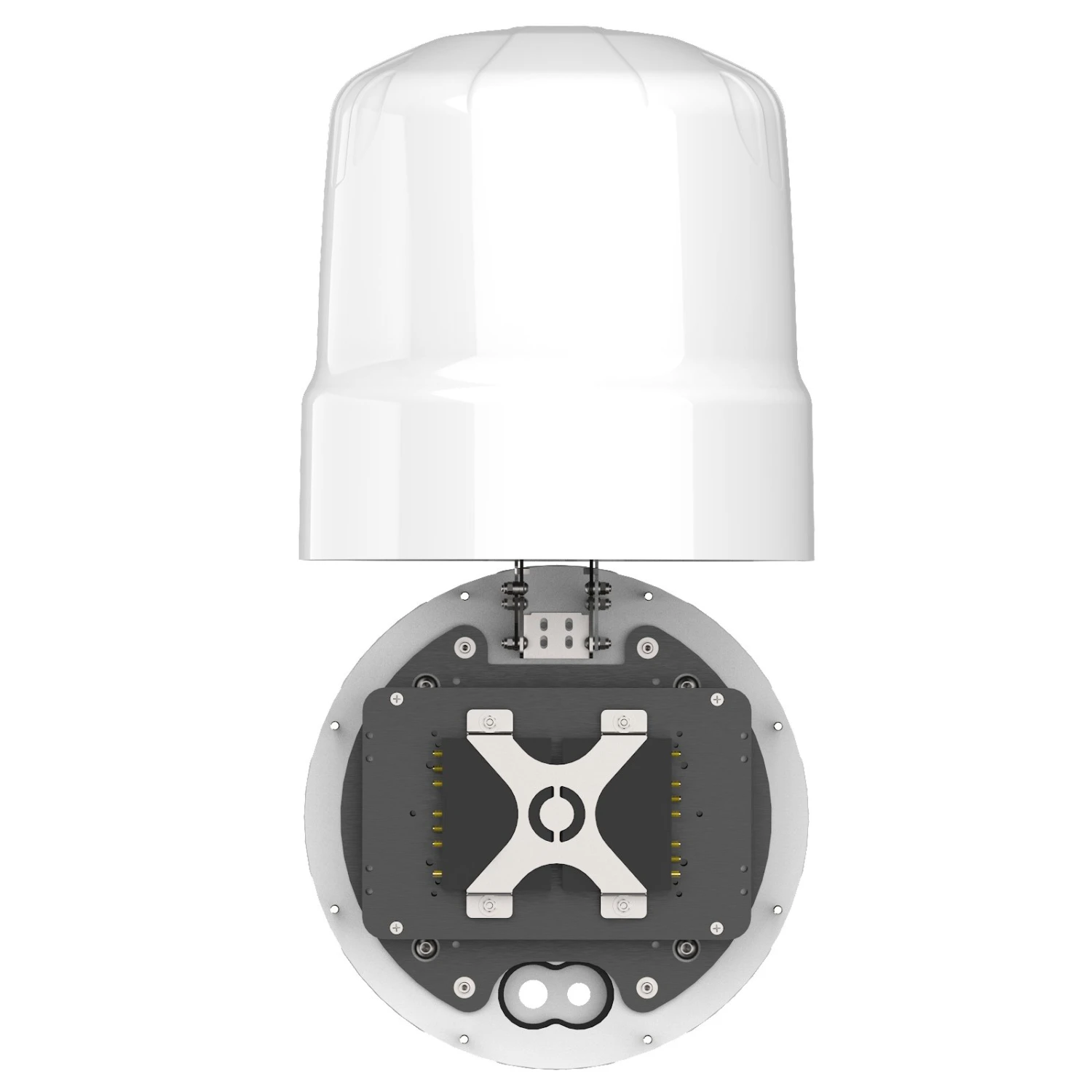

The Ripple enclosure can accommodate routers up to the size of 300 x 250 x 110 mm³, which can be mounted directly onto the base.

The RIPPLE is a circular array of omni-directional antennas that operate in the following frequency bands: 617 – 960 MHz; 1427 – 1517 MHz; 1710 – 2700 MHz; 3400 – 4200 MHz; 5000 – 7200 MHz. It also covers the following Wi-Fi frequency bands: 2400 – 2500 MHz; 5000 – 7200 MHz.

Poynting RIPPLE-8 5G/LTE 8×8 Antenna Enclosure Key Highlights

• High performance, omni-directional marine & coastal antenna
• Up to 8 x 8 MIMO capability for improved performance
• Covers contemporary 5G/LTE band from 617 to 7200 MHz
• Innovative heat sink design for improved temperature regulation
• UV and saltwater protected for marine and coastal applications
• Weatherproof and water-resistant enclosure (IP 65)
• Ports: LTE- Vertical Polarised (x 4); LTE- Horizontal Polarised (x 4); Wi-Fi- Vertical Polarised (x 2); Wi-Fi- Horizontal Polarised (x 2); GPS (x 2)
• MIMO: 2×2 or 4×4 MIMO- LTE; 4×4 MIMO – Wi-Fi
• Polarisation: Vertical & Horizontal
• Peak Gain: 9.5 dBi
• Connector Type: 14 x SMA (F)
• Coax Cable Type: 10 x RG 316 (RA-SMA-M to RASMA-M): LTE & GPS; 4 x RG 316 (RA-RPSMA-M to RASMA-M): Wi-Fi
• Coax Cable Length: 650 mm – LTE, Wi-Fi & GPS

Applications

• Marine applications: Super yachts, commercial vessels, cruise ships, ferries, private yachts, and towing vessels
• Harsh environments such as harbour buildings, and buoys
• Enhanced LTE/4G and 5G reception
• Increase system transmission reliability

What’s in the Box?

• Poynting RIPPLE-16
