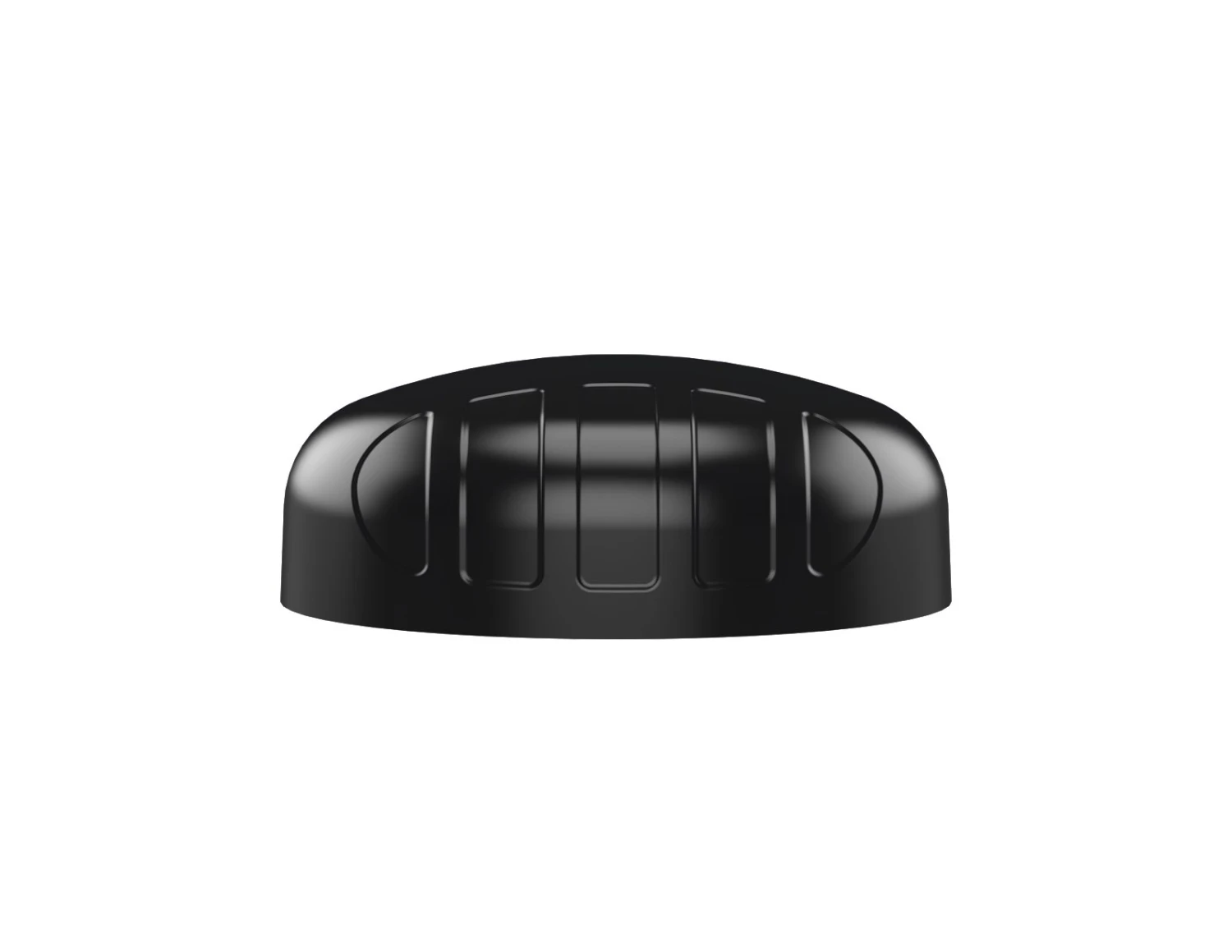

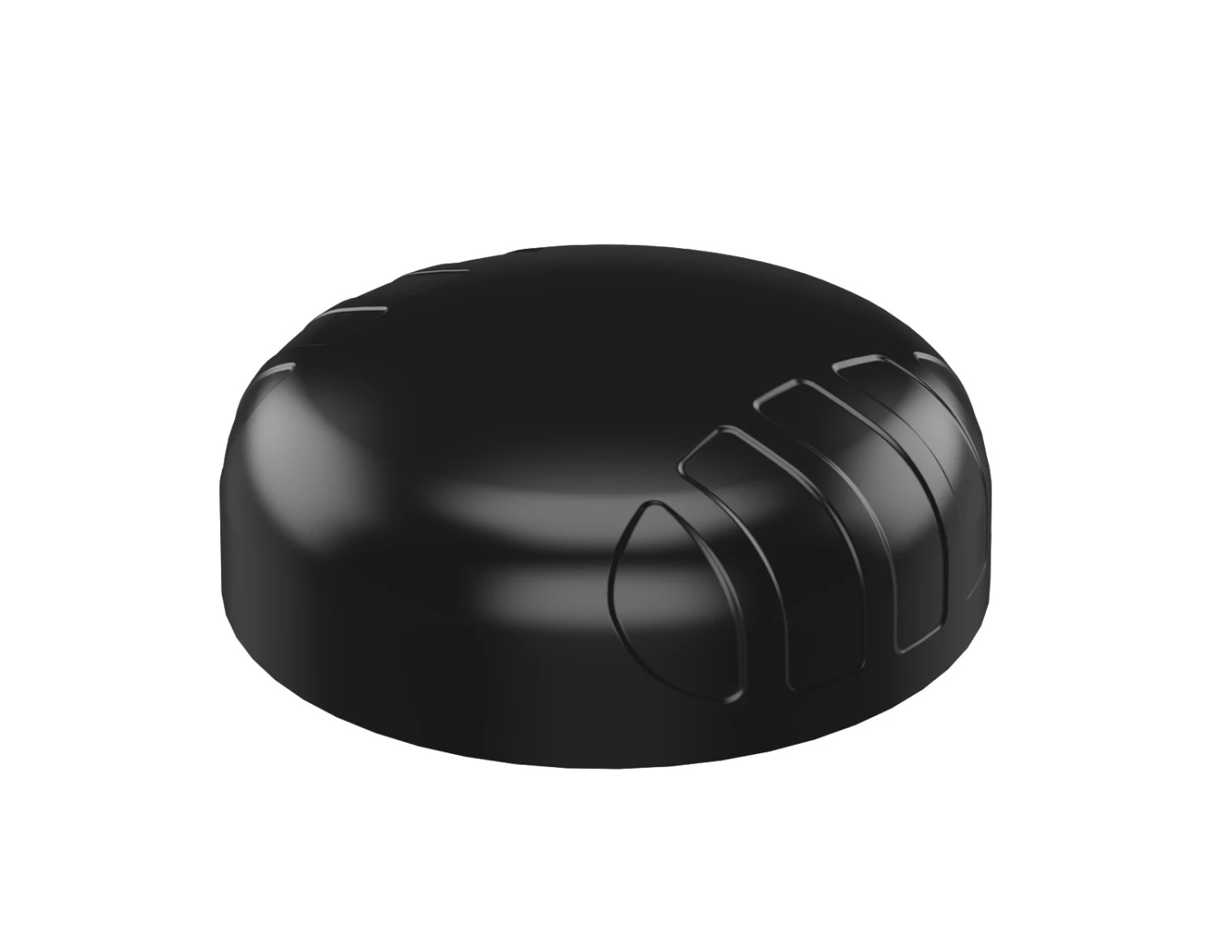

Poynting PUCK-7 Transportation & IOT, M2M Antenna

The PUCK-7 consists of a 4-in-1 antenna system within a single housing, featuring 2×2 MIMO LTE and 2×2 MIMO Wi-Fi (Dual-band 2.4GHz & 5GHz) The 2x Cellular MIMO antennas (for 2G/3G/4G) cover the 698MHz to 3800MHz band, this includes the most popular international LTE bands.

The antenna provides two separate dual-band Wi-Fi antennas offering concurrent 2.4GHz and 5GHz bands, capable of 802.11n and 802.11ac/ax with 2×2 MIMO. The PUCK exceeds the performance of many competitors due to the attention to design of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omni-directionality, pattern diversity and good radiation abilities at the desired elevation, which is often overlooked in such a small size antenna.

Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance.

Poynting PUCK-7 Antenna Key Highlights

• 4-in-1 high performance multi frequency
• 2G/3G/4G/LTE antenna (5G Ready)
• LTE (2 x MiMo), Dualband Wi-Fi (2 x MiMo)
• Wideband – covers wide frequency band, incl. the CBRS band
• Ground plane independent
• Robust, vandal resistant and water proof (IP68) antenna
• Ideal for transportation, marine and IoT/M2M use
• Ultra-versatile mounting options for easy installation
