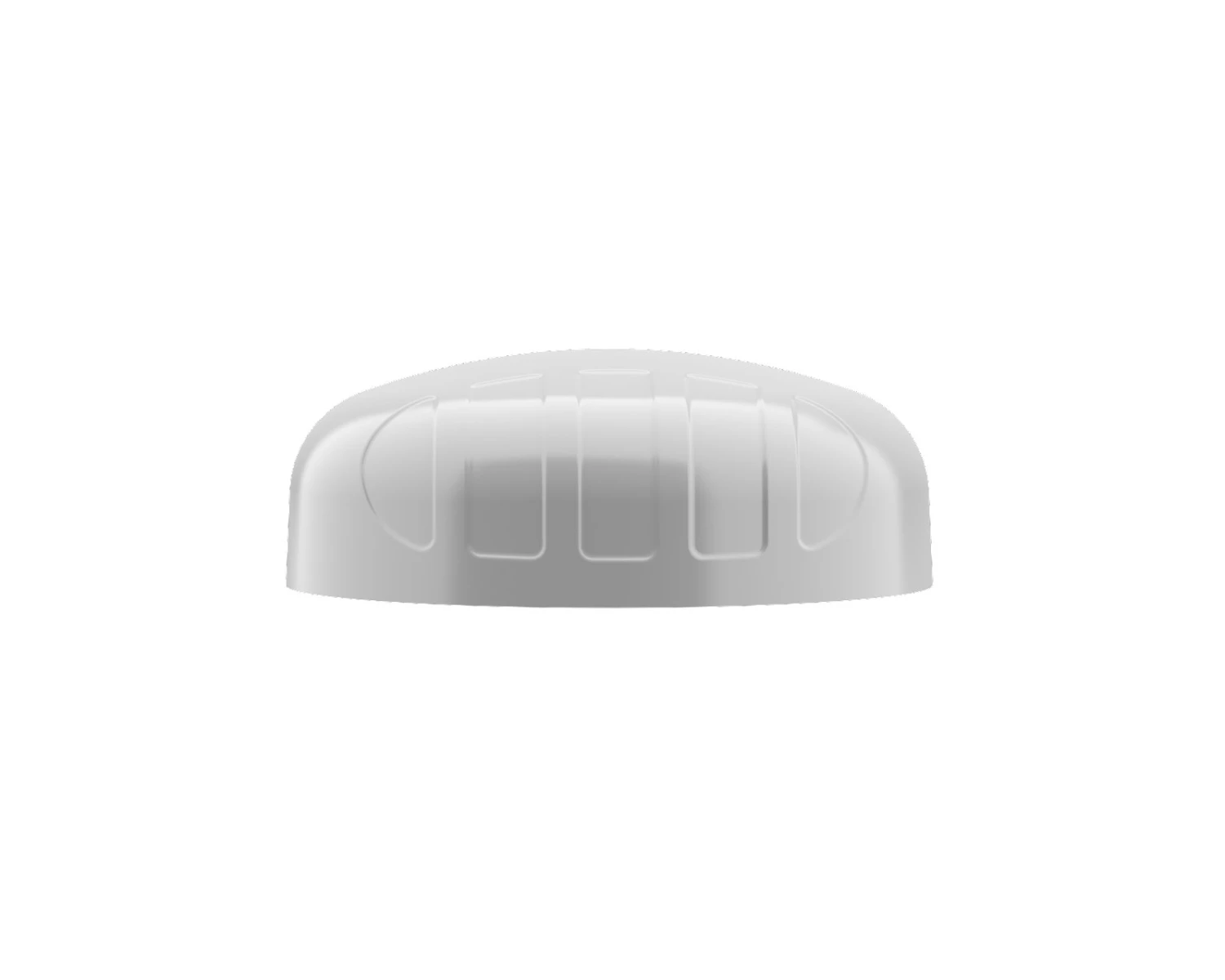

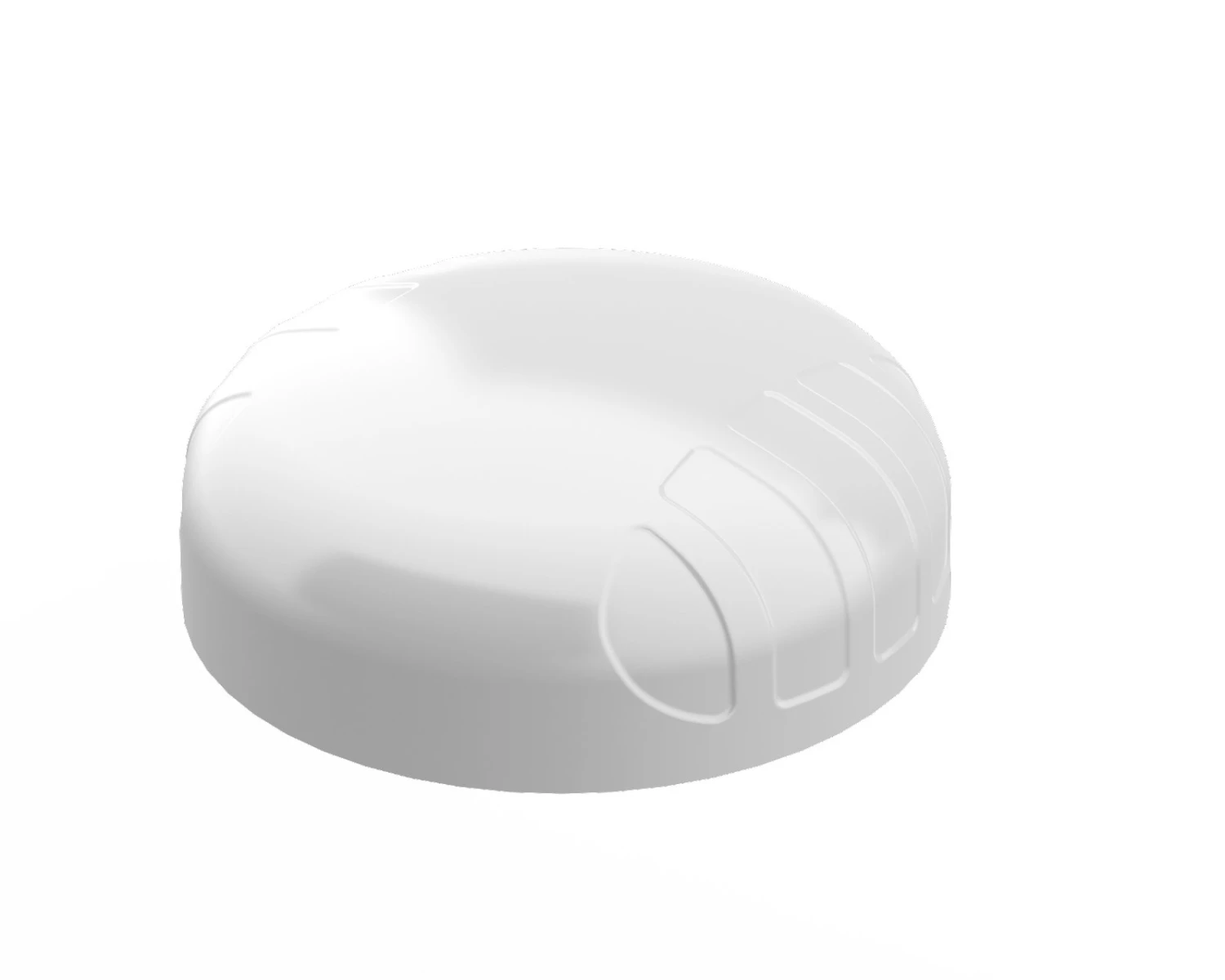

Poynting PUCK-5-W Omni-Directional Antenna – In White
Original price was: $104.49.$73.14Current price is: $73.14.
Poynting’s PUCK-5-W is an Ultra wide band Omni-directional Antenna. The PUCK-5-W consists of a 5-in-1 Antenna System within a robust single housing, featuring 2×2 MIMO LTE, 2×2 MIMO Wi-Fi (Dual-band 2.4GHz & 5GHz) and GPS/GLONASS. This small profile antenna is suitable for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and Agricultural markets. It is designed so that both the LTE ports are connected to the router or device to ensure the best performance.
- Product guarantee 100% satisfaction
- High quality products, low prices.
- High quality products, hassle-free returns.
- Control the delivery date and try to deliver it in the fastest time
– Poynting PUCK-5-W Antenna
The PUCK-5-W provides two separate dual-band Wi-Fi antennas offering concurrent 2.4GHz and 5GHz bands, capable of 802.11n and 802.11ac/ax with 2×2 MIMO. The fifth antenna is a high-performance active GPS/GLONASS system operating at temperatures as low as -40ºC.
The PUCK-5-W is also available in Black:
For further information about our antennas see our blog for
A-PUCK-0005-V1-01-W Key Highlights
- 2G/3G/4G/LTE Antenna
- 5G Ready
- 5-in-1 High Performance multi Frequency
- Cellular Frequency Bands: 690-960 MHz | 1710 2700 MHz | 3200 – 3800 MHz
- Wi-Fi Frequency Bands: 2400 – 2500 MHz | 5000 – 6000 MHz
- Max Gain: LTE 6dBi | Wi-Fi 7.5dBi | GPS 21 dBi
- Vandal Resistant: corrosion, water and dust resistant (IP68)
- Fire Resistant: Complies with ECE-R 118.02
- UV Stable Enclosure
- 2m Coax RKT-031 Cable
- Connector Type: SMA (Male)
- Variety of Mount Options (Included): Spigot, Magnetic, Adhesive Tape, Pole, Wall
- Dimensions: 94 mm x 94 mm x 38 mm
Applications
- Smart Utilities: Smart Power, Gas & Water Metering
- Smart Buildings: Climate control, access control, security,
irrigation - Digital Signage
- Warehouses & Logistic systems
- Industrial factory automation, robotic machinery and other M2M systems
- Transport (Busses, Utility & Public Safety)
- Mining Vehicles & Machinery Communications, Telemetry and Automation (M2M & IoT)
- Agricultural Machinery
- Marine: small boats, yachts near to coastlines or inner waters
What’s in the Box?
- 1 x PUCK-5-W
- Threaded Spigot Mounting
- Magnetic Mount
- Adhesive Surface Mount
