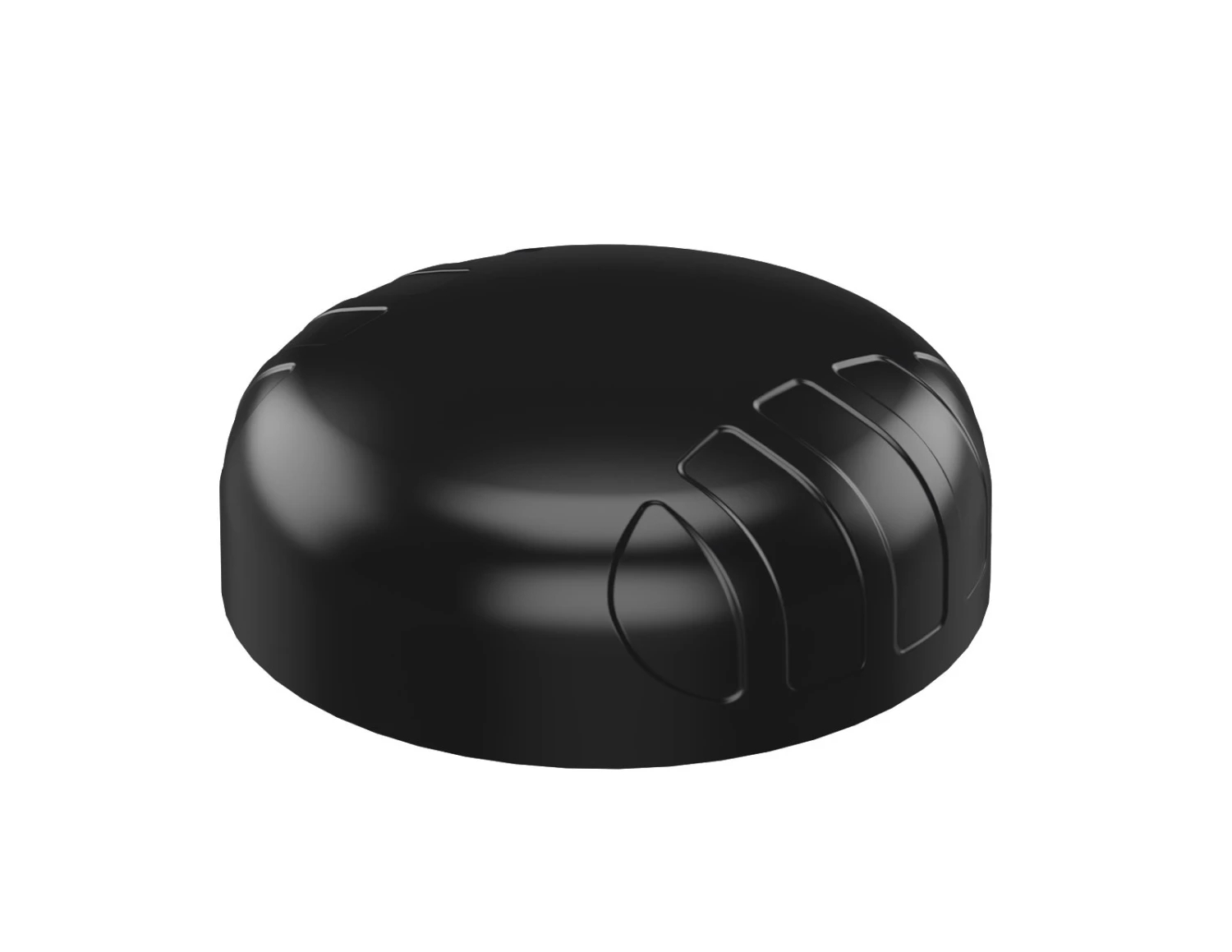

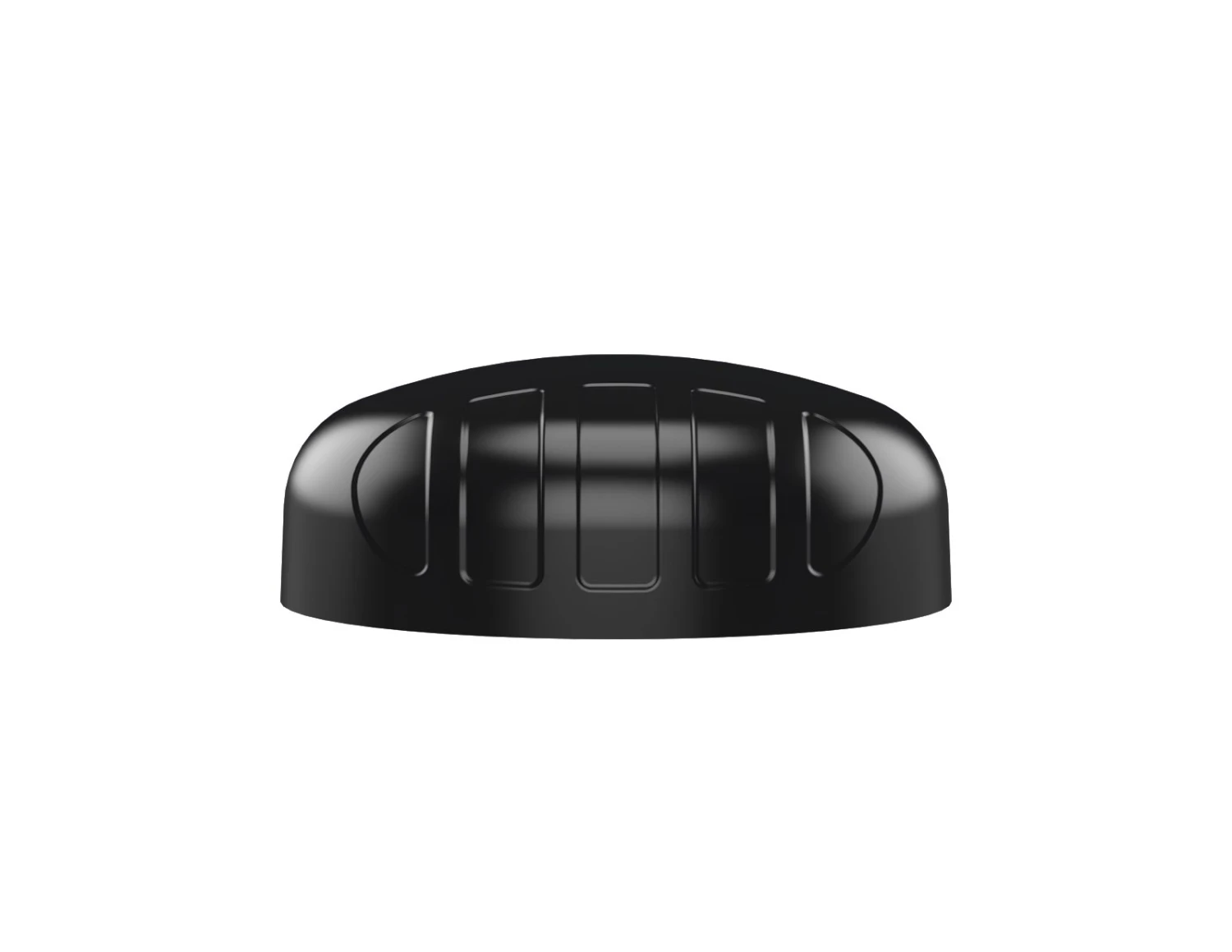

Poynting PUCK-4 Wide-Band 3-in-1 Transportation, IOT & M2M Antenna

Despite its small size, this antenna provides excellent performance especially at the higher frequency bands, where performance is critical for LTE throughput and connection stability. This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance. Please see other derivatives of the PUCK range that are more suitable for a SISO application.

PUCK-4 dimensions: 150mm x 150mm x 120mm

A-PUCK-0004-V1-01 Key Highlights

• Small & Low-Profile
• Rugged with IP68
• Fire Resistant (complies with ECE-R 118.02)
• UV Stable Enclosure
• Ground plane independent – performs consistently with and without a ground plane
• 5G Ready; includes 3.2GHz to 3.8GHz CBRS Band
• Easy installation; multi implementation options as standard

Applications

• Smart Utilities: Smart Power, Gas & Water Metering
• Smart Buildings: Climate control, access control, security, irrigation
• Digital Signage
• Warehouses & Logistic systems
• Industrial factory automation, robotic machinery and other M2M systems
• Transport (Busses, Utility & Public Safety)
• Mining Vehicles & Machinery communications, telemetry and automation (M2M & IoT)
• Agricultural machinery
• Marine: small boats, yachts near to coastlines or inner waters

What’s in the Box?

• A-PUCK-0004-V1-01
• Ø20 Threaded Spigots (Up to 60mm clamping thickness), Adhesive Surface Mounting & Magnetic Mount
