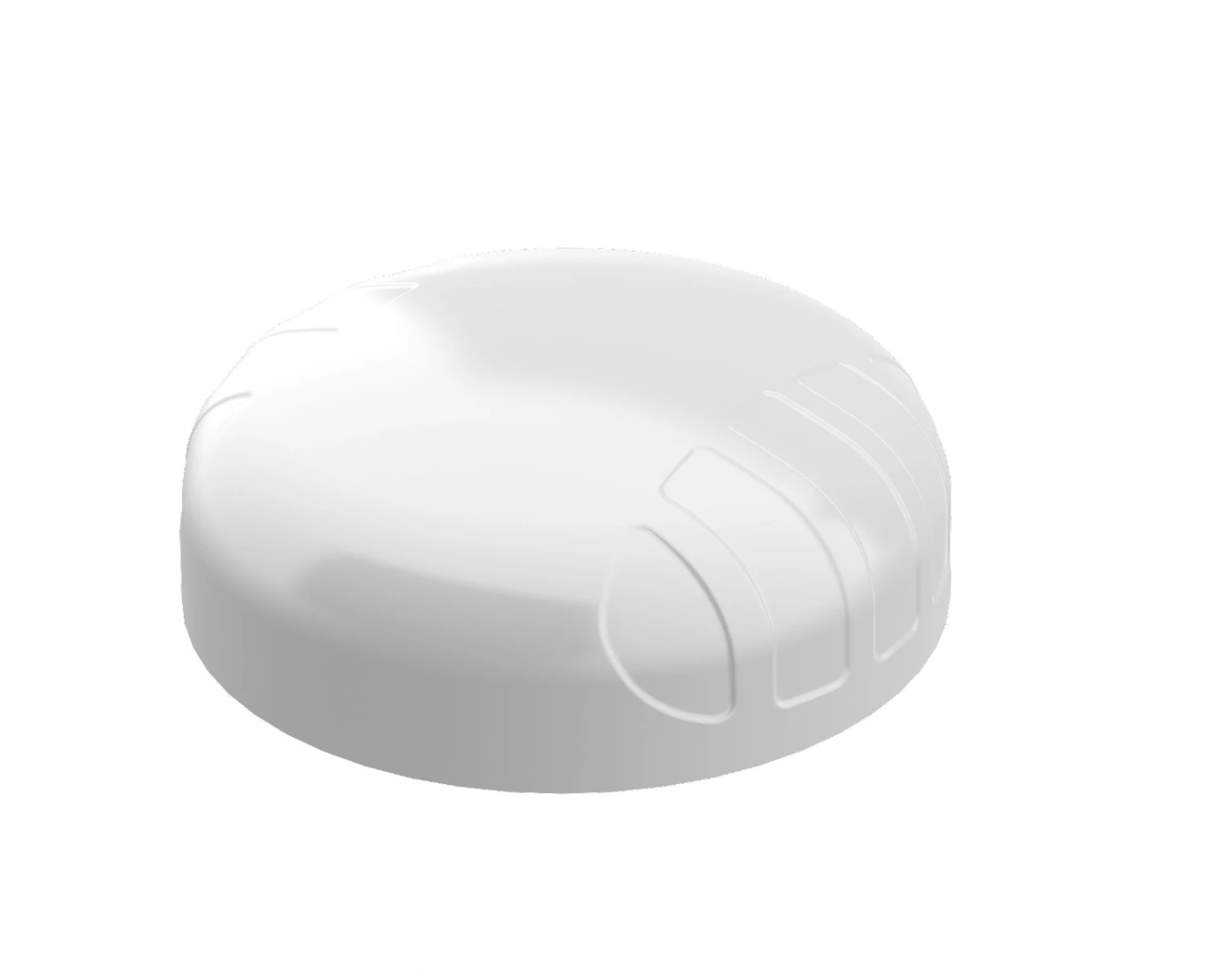

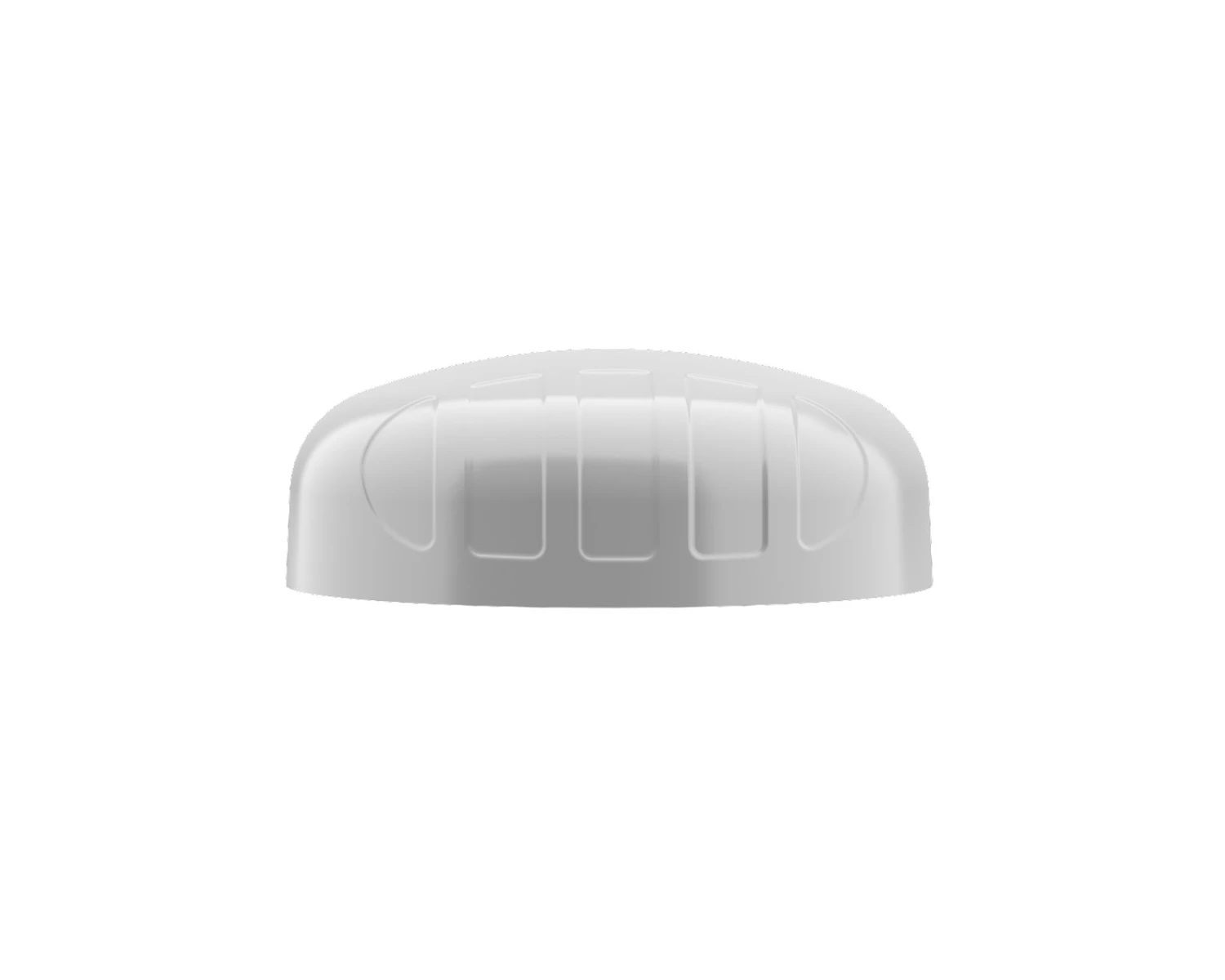

Poynting PUCK-2-W LTE Transportation & IOT, M2M Antenna – White
Original price was: $62.99.$44.09Current price is: $44.09.
The PUCK-2-W from Poynting is a small profile Antenna for use across multiple applications and industries. Despite its compact form, this antenna provides excellent performance especially at the higher Frequency Bands where performance is critical for LTE throughput and connection stability.
- Product guarantee 100% satisfaction
- High quality products, low prices.
- High quality products, hassle-free returns.
- Control the delivery date and try to deliver it in the fastest time
– Poynting PUCK-2-W Antenna
The PUCK-2-W features 2×2 MIMO Ultra wide band Omni-Directional LTE Antenna. The radiation patterns of all radiating elements provide an excellent balance between omni-directIonality, pattern diversity and good radiation abilities at the desired elevation.
This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance.
The PUCK-2-W is also available in
A-PUCK-0002-V1-01 Key Highlights
- 2G/3G/4G/LTE Antenna
- 5G Ready
- Cellular Frequency Bands: 690 – 960 MHz | 1710 – 2170 MHz | 2300 – 2500 MHz | 2500 – 2700 MHz | 3200 – 3800 MHz
- Wi-Fi Frequency Bands: 2400 – 2500 MHz
- Max Gain: 6 dBi
- Vandal Resistant: corrosion, water and dust resistant (IP68)
- Fire Resistant: complies with ECE-R 118.02
- UV Stable Enclosure
- Ground Plane Independent – performs consistently with and without a ground plane
- Variety of Mounting Options (Included): Spigot, Magnetic, Adhesive Tape, Pole, Wall
- 2m Coax RKT-031 Cable
- Connector Type: SMA (Male)
- Dimensions: 98 mm x 98 mm x 32mm
Applications
- Smart Utilities: Smart Power, Gas & Water Metering
- Smart Buildings: Climate Control, Access Control, Security
- Digital Signage
- Warehouses & Logistic Systems
- Industrial Factory Automation, Robotic Machinery and other M2M Systems
- Transport (Buses, Utility & Public Safety)
- Mining Vehicles & Machinery Communications, Telemetry and Automation (M2M & IoT)
- Agricultural Machinery
- Marine: small boats, yachts near to coastlines or inner waters
What’s in the Box?
- 1 x PUCK-2-W Antenna
- Threaded Spigots (up to 60mm clamping thickness)
- Adhesive Surface Mounting
- Magnetic Mount
