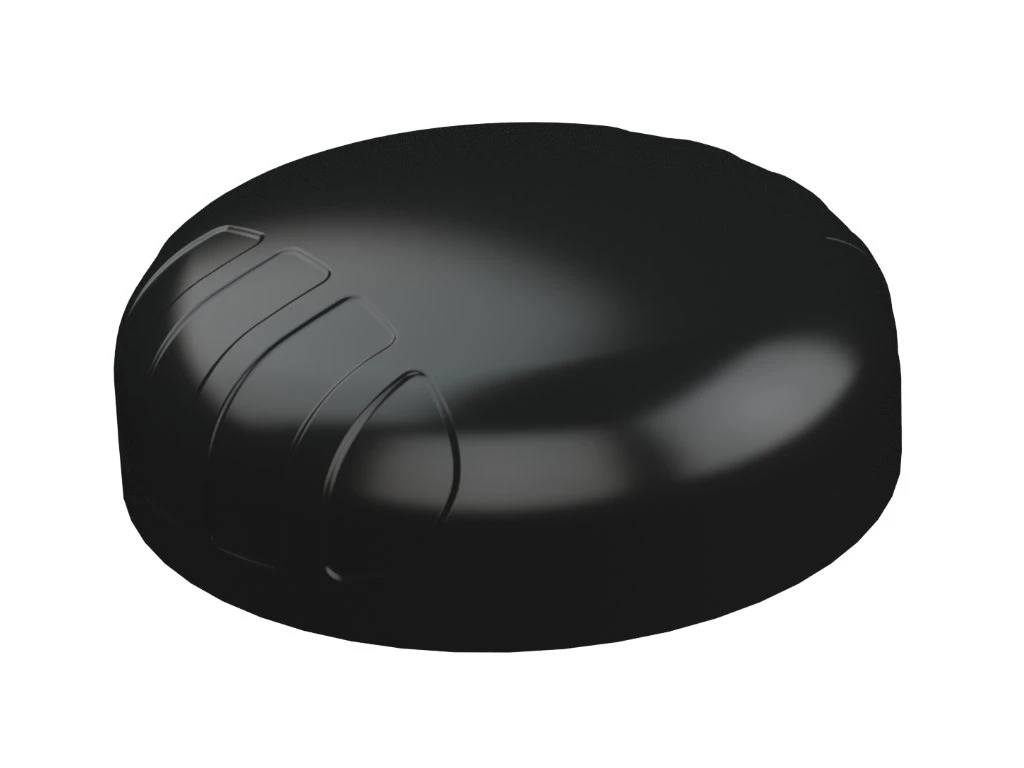

Poynting PUCK-2 LTE Transportation, IOT & M2M Antenna

The PUCK-2 features 2×2 MIMO LTE antennas that cover the 698MHz to 3800MHz band, which includes the most popular international LTE bands. The radiation patterns of all radiating elements provide an excellent balance between omnidirectIonality, pattern diversity and good radiation abilities at the desired elevation.

This antenna is designed so that both the LTE ports are connected to the router/device to ensure the best performance.

PUCK-2 dimensions: 98 mm x 98 mm x 32mm

A-PUCK-0002-V1-01 Key Highlights

• 5G Ready; includes 3.2GHz – 3.8GHz CBRS Band
• Cellular Frequency Bands: 690 – 960 MHz | 1710 – 2170 MHz | 2300 – 2500 MHz | 2500 – 2700 MHz | 3200 – 3800 MHz
• Wi-Fi Frequency Bands: 2400 – 2500 MHz
• Vandal resistant, corrosion, water and dust resistant (IP68)
• Fire Resistant (complies with ECE-R 118.02)
• UV Stable Enclosure
• Ground plane independent – performs consistently with and without a ground plane

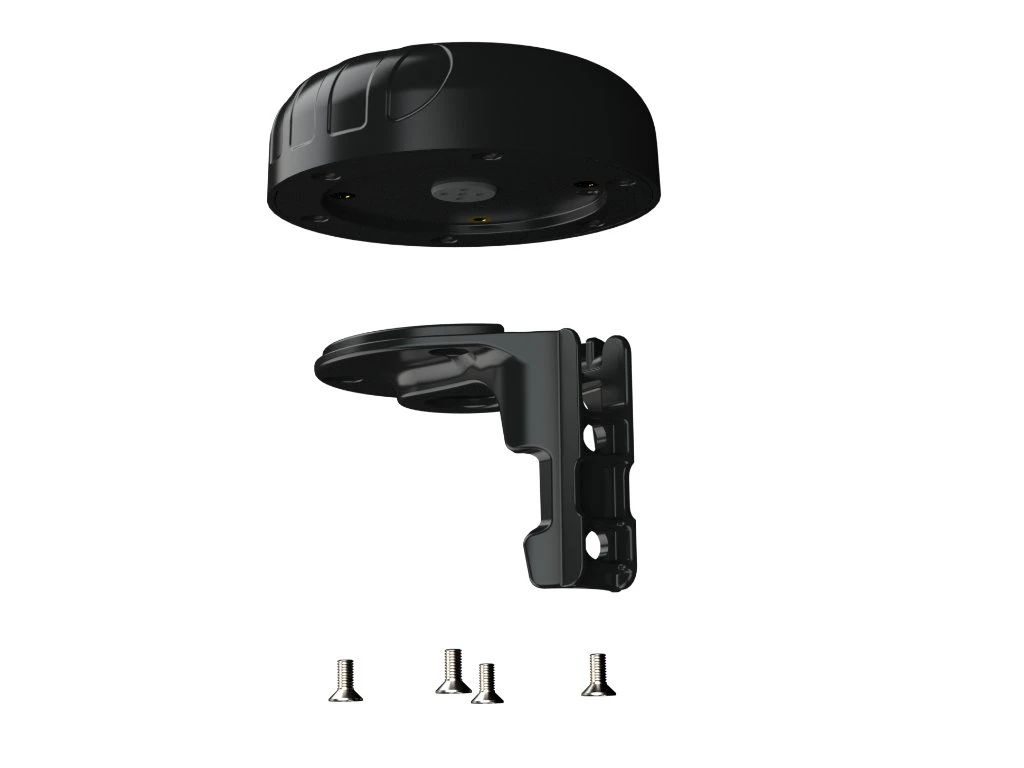

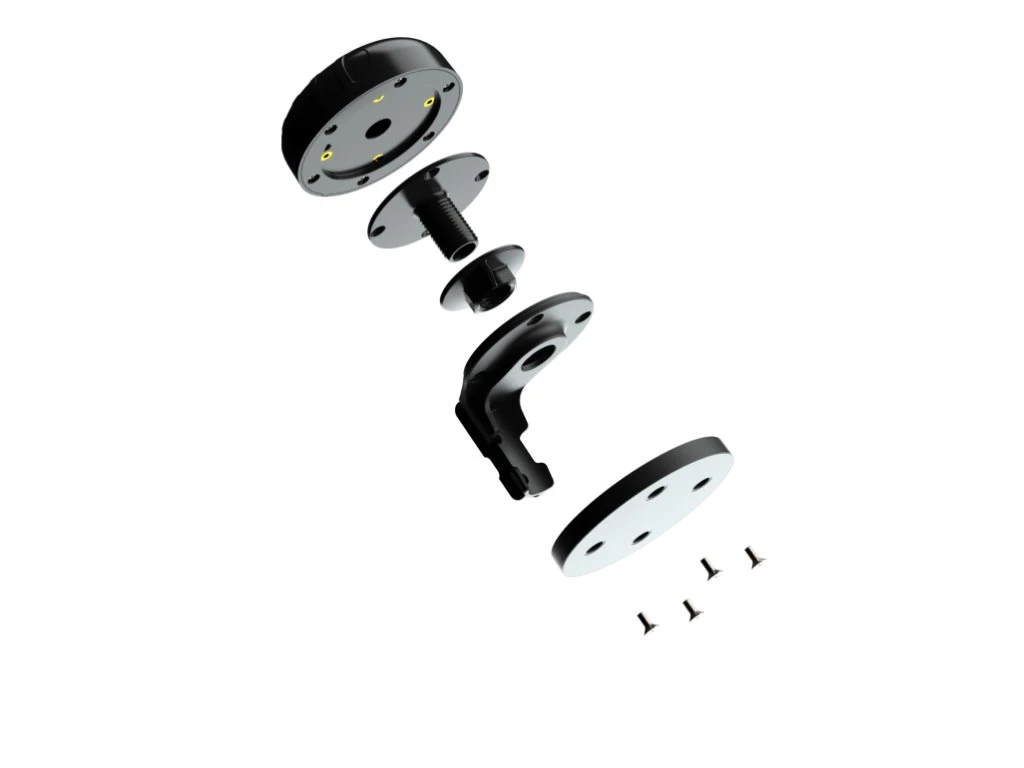

• Variety of Mount Options (Included): Spigot, Magnetic, Adhesive Tape, Pole, Wall
• 2m Coax cable mounted to the PUCK-2
• Connector type: SMA (Male)
• Wideband – covers wide frequency band

Applications

• Smart Utilities: Smart Power, Gas & Water Metering
• Smart Buildings: Climate Control, Access Control, Security
• Digital Signage
• Warehouses & Logistic systems
• Industrial factory automation, robotic machinery and other M2M systems
• Transport (Buses, Utility & Public Safety)
• Mining Vehicles & Machinery Communications, Telemetry and Automation (M2M & IoT)
• Agricultural Machinery
• Marine: small boats, yachts near to coastlines or inner waters

What’s in the Box?

• A-PUCK-0002-V1-01

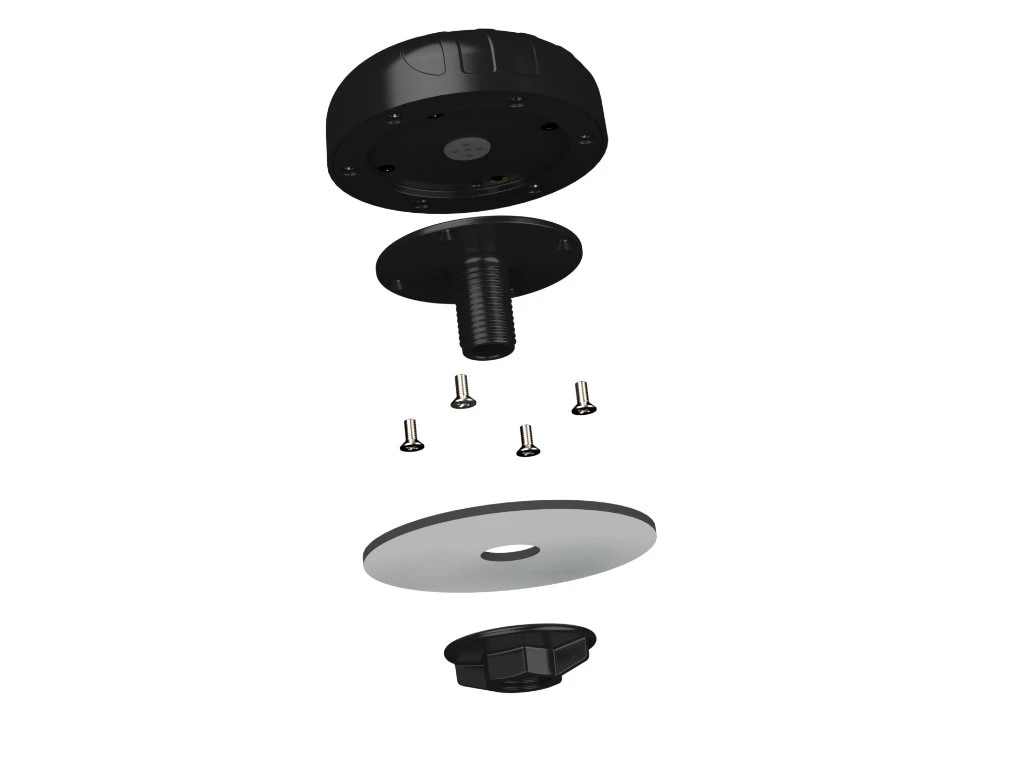

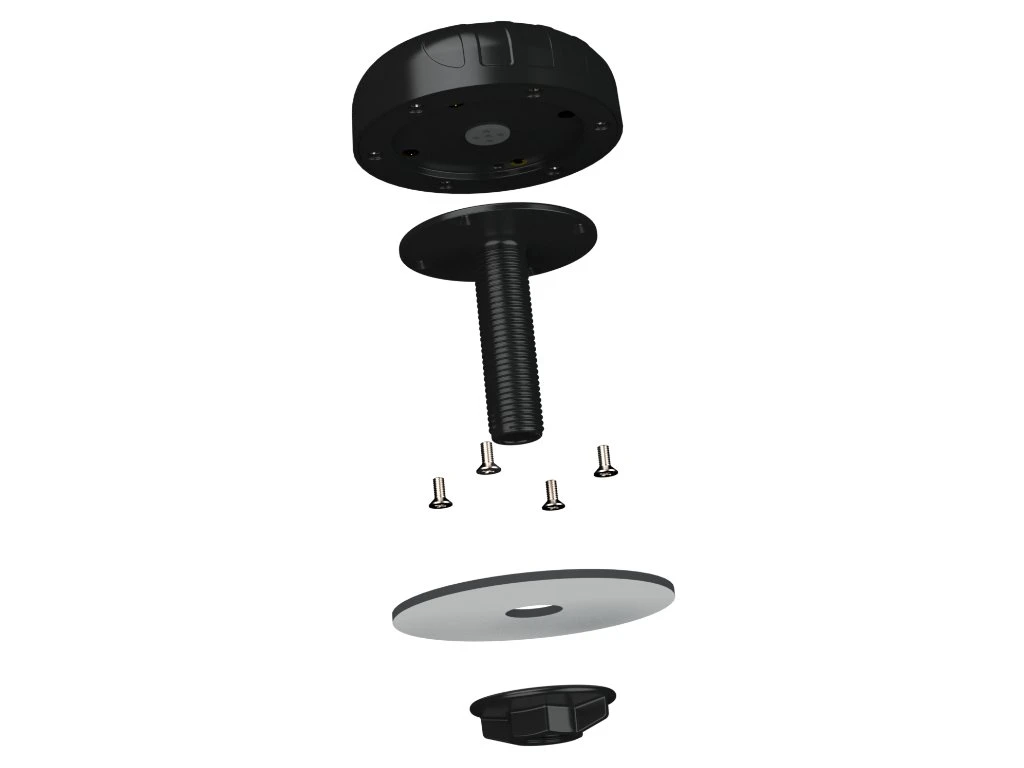

• Threaded Spigots (up to 60mm clamping thickness)
• Adhesive Surface Mounting
• Magnetic Mount
