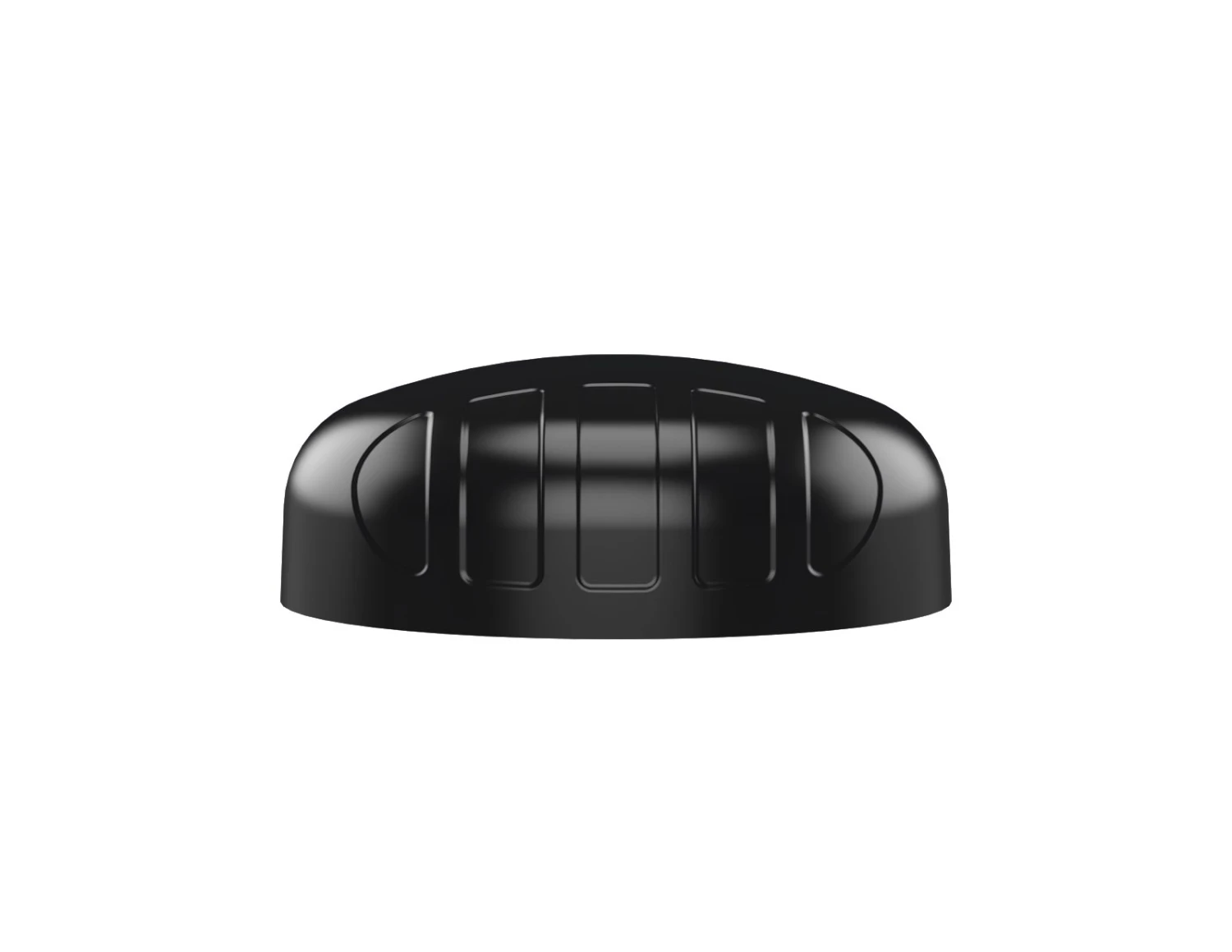

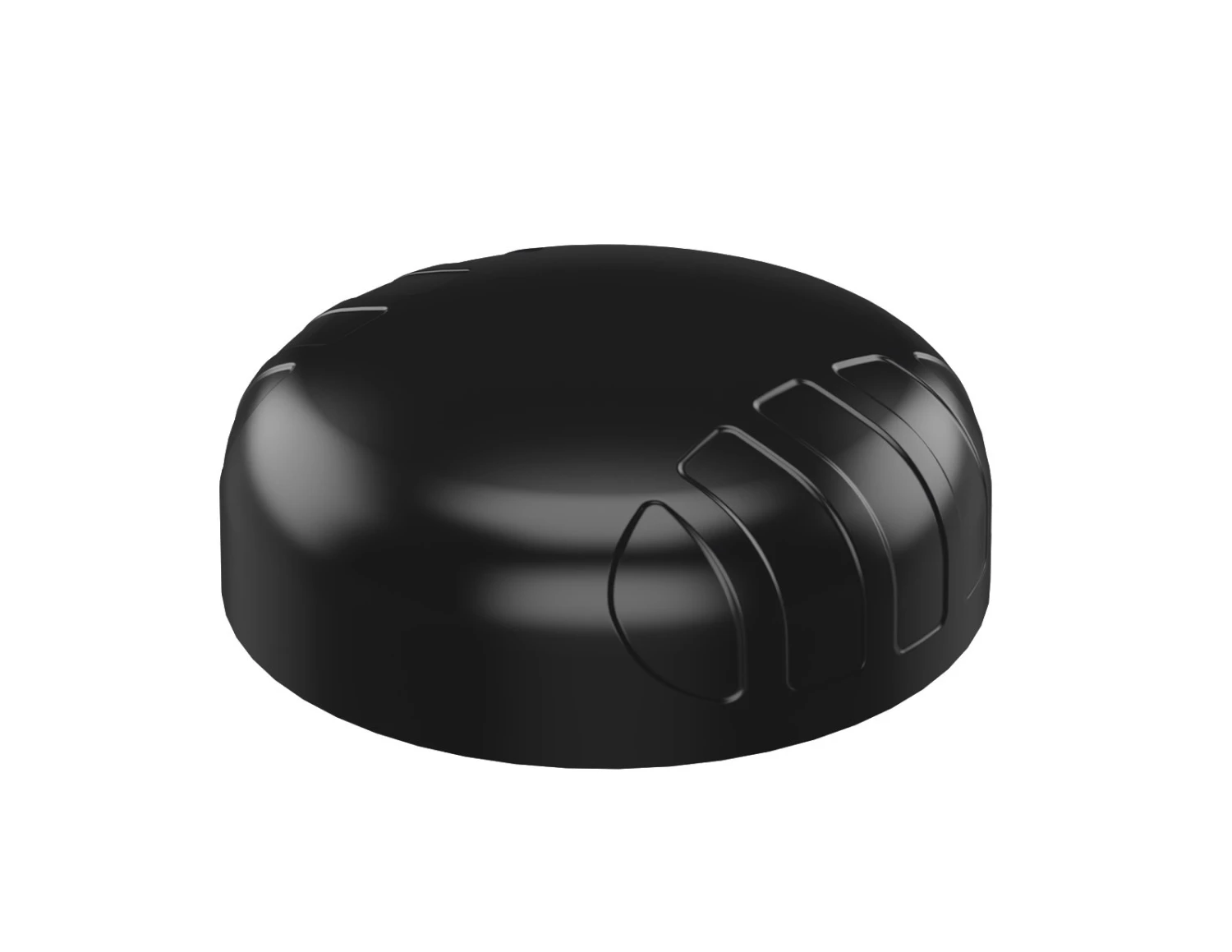

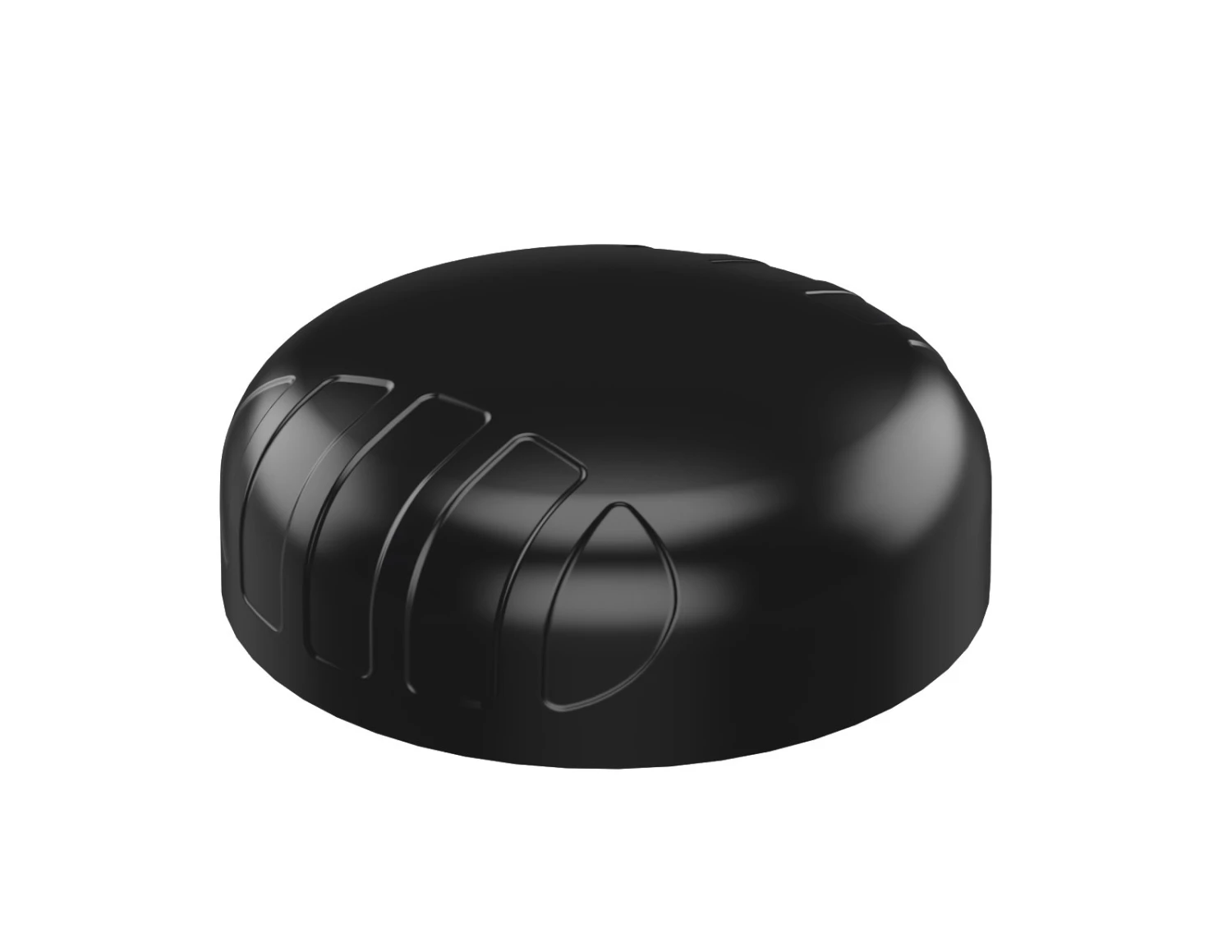

Poynting PUCK-1 SISO LTE Transportation Vehicle Antenna
Original price was: $45.99.$32.19Current price is: $32.19.
Poynting’s PUCK-1 offers a small profile antenna for use in the IoT/M2M, Smart Meter, Smart Utilities, Transportation, Marine and the Agricultural/Farming markets. The PUCK (for 2G/3G/4G) covers the 690MHz to 3800MHz band, and the radiation patterns of all radiating elements provide balance between omni-directionality and good radiation abilities at the desired elevation – features that are often overlooked in such a small size antenna.
- Product guarantee 100% satisfaction
- High quality products, low prices.
- High quality products, hassle-free returns.
- Control the delivery date and try to deliver it in the fastest time
– Poynting PUCK-1 SISO LTE Antenna
The PUCK-1 Antenna provides excellent performance at higher frequency bands, where performance is critical for LTE throughput and connection stability.
PUCK-1 dimensions: 98 mm x 98 mm x 39 mm
A-PUCK-0001-V1-01 Key Highlights
- LTE High Performance Multi-Frequency
- 2G/3G/4G/LTE Antenna (5G Ready)
- Frequency Bands: 690-960 MHz | 1710 – 2700 MHz | 3200 – 3800 MHz
- Ground plane independent
- Robust, vandal resistant and water proof (IP68)
- Ideal for transportation, marine and IoT/M2M use
- Ultra-versatile mounting options for easy installation
- Max Gain: 6 dBi
- Coax Cable Length: 2m
- Connector Type: SMA (male)
Applications
- Smart Utilities: Smart Power, Gas & Water Metering
- Smart Buildings: Climate control, access control, security,
irrigation - Digital Signage
- Warehouses & Logistic systems
- Industrial factory automation, robotic machinery and other M2M systems
- Transport (Busses, Utility & Public Safety)
- Mining Vehicles & Machinery Communications, Telemetry and Automation (M2M & IoT)
- Agricultural Machinery
- Marine: small boats, yachts near to coastlines or inner waters
What’s in the Box?
- A-PUCK-0001-V1-01
- Ø20 Threaded Spigots (Up to 60mm clamping thickness)
- Adhesive Surface Mount
- Mounting & Magnetic Mount
