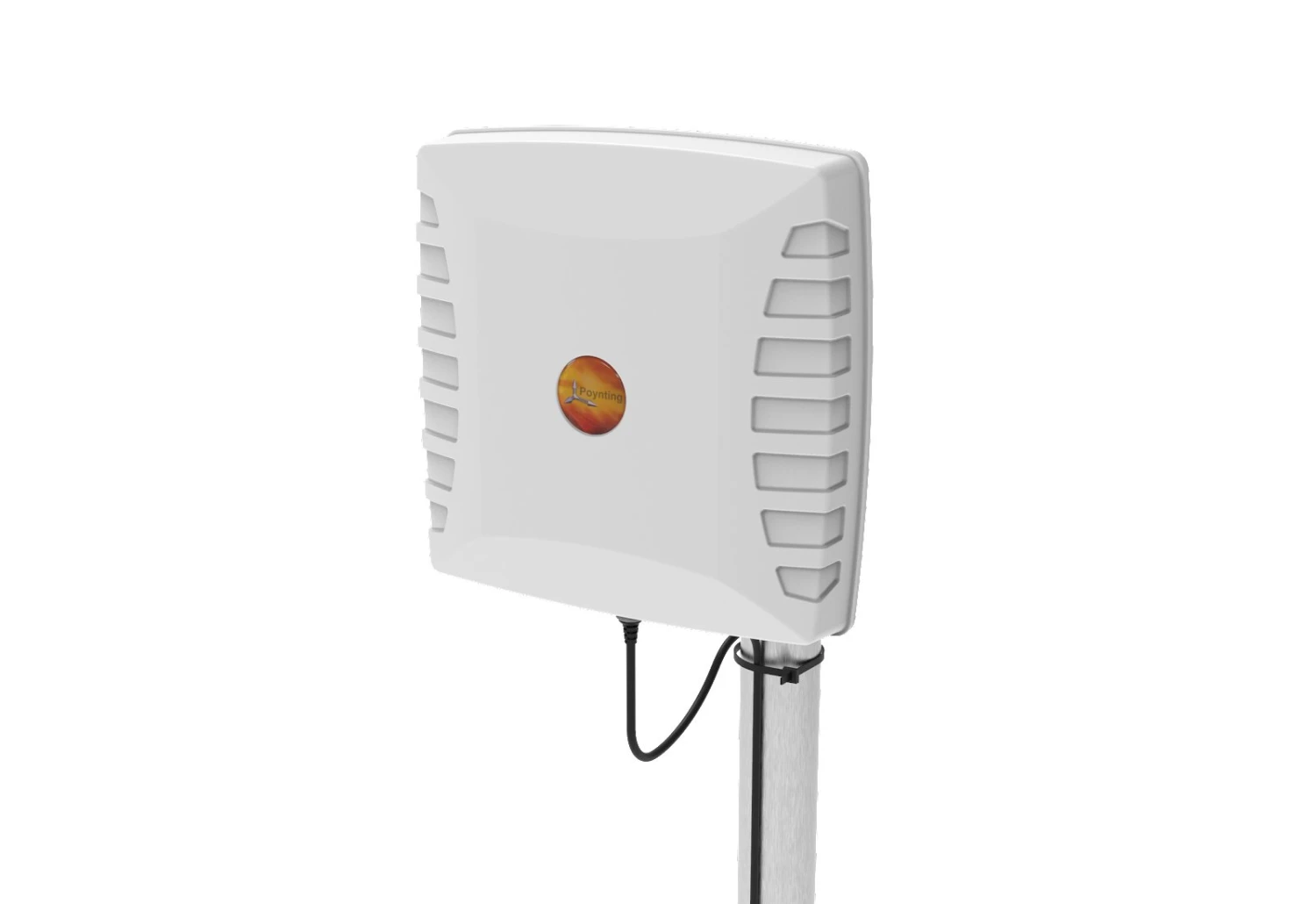

– Poynting PATCH-25 Uni RFID Antenna

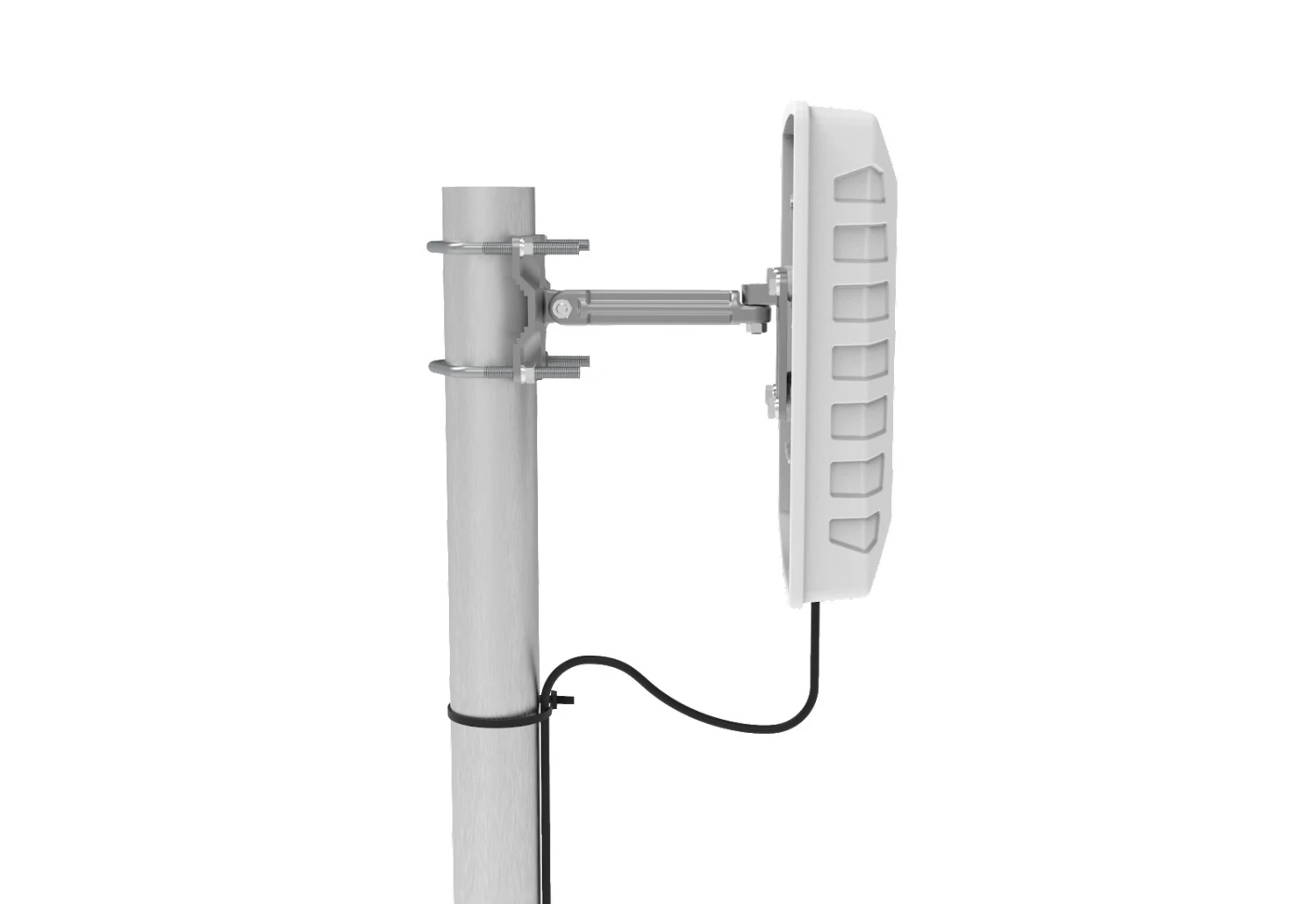

The PATCH-25 antenna has been designed with a robust IP65 rated enclosure, making it water, fire and vandal resistant. It is suitable for pole mounting and easy to install, and due to its circularly polarised design it can be installed in any orientation to get a reading.
Due to this circular polarisation it can also be used to improve indoor GSM coverage. VSWR is typically less than 1.3:1, giving a return loss better than 20dB. This antenna is unique in the RFID environment because of its VSWR and gain specifications.
Poynting PATCH-25 Antenna Key Highlights
- Uni-directional antenna
- Polarisation: Circular (Right Hand Circular Polarised)
- Frequency bands 860 – 960 MHz
- Medium gain: 8.8dBi
- Robust design and fire resistant
- Vandal and water resistant (IP65 rated)
- Impact resistant: IK 08
- Meets the stringent electrical requirement for RFID applications
Application Areas
- Areas with poor GSM-800 and GSM-900 coverage
- Indoor GSM applications
- Rural and urban environments
- Operator agnostic
- RFID reader applications
What’s in the Box?
- A-PATCH-0025-V2-02
- Swivel bracket
