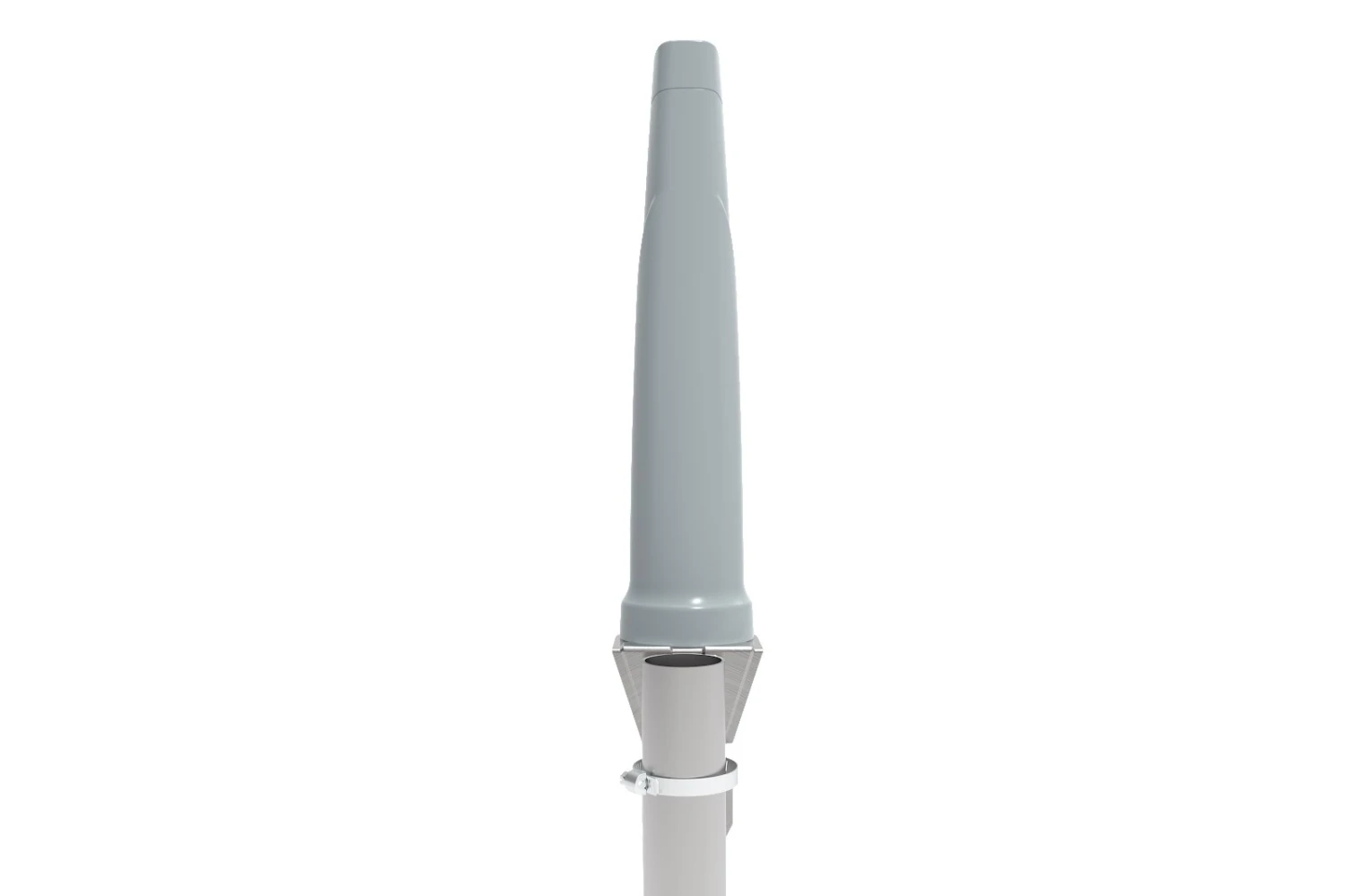

Poynting OMNI-702 High Gain Omni-Directional Wi-Fi Antenna

The OMNI-702 antenna was designed for superior pattern control over the entire frequency range, making the OMNI-702 an exceptional omni-directional antenna for its size. This antenna can connect to any Wi-Fi access point and resolve channel saturation and provide ultimate Wi-Fi performance and flexibility.

The rugged enclosure design on the OMNI-702 offers protection in adverse environmental conditions with an IP 69K and IK 10 rating. The antenna has an N-Type female connector at its base, which can be connected to a cable of the desired type and length.

OMNI-702 Key Highlights

• Frequency bands: 2400 to 2500 MHz
• Max Gain: 8 dBi
• Compliant with IEEE 802.11b/g wireless standard
• Suitable for 2.4 GHz Wi-Fi deployment
• Easy installation, pole or wall mountable
• Stylish and robust, vandal resistant design
• High pressure water and dust proof enclosure (IP 69K)
• SISO / MIMO: SISO
• Polarisation: Linear (Vertical)
• Coax Cable Type: N/A
• Coax Cable Length: N/A
• Connector Type: N-Type (F)

Application Areas

• Smart Utilities: Smart Power Metering, Gas & Water Metering
• Smart Buildings: Climate control, access control, security, irrigation
• Smart Environmental & Water Systems
• Warehouses & Logistics systems
• Industrial factory automation and M2M systems
• Farming & Agricultural M2M IoT

What’s in the Box?

• Poynting A-OMNI-0702-V1-01 antenna
• Included L-Bracket and adhesive disc
