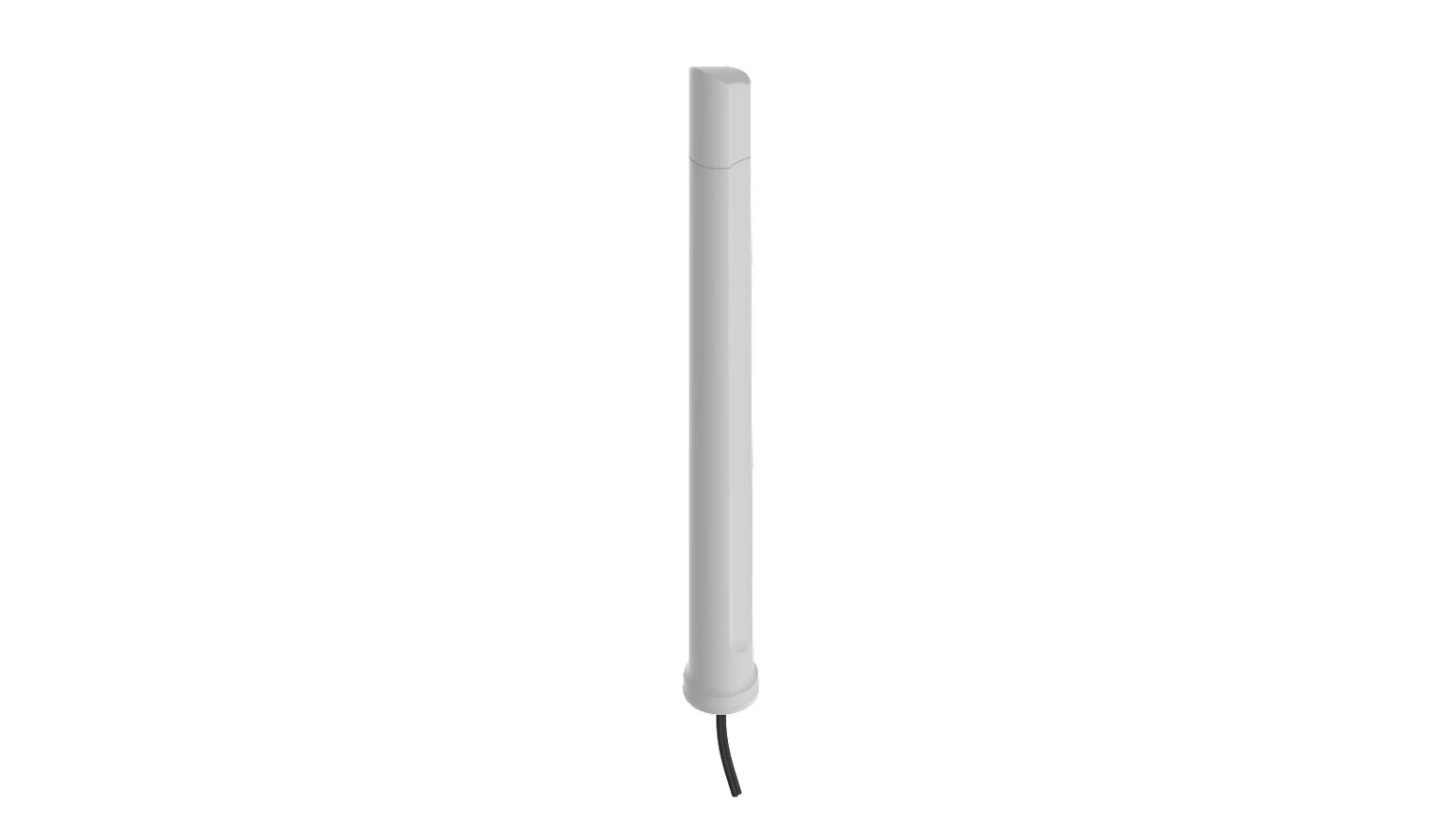

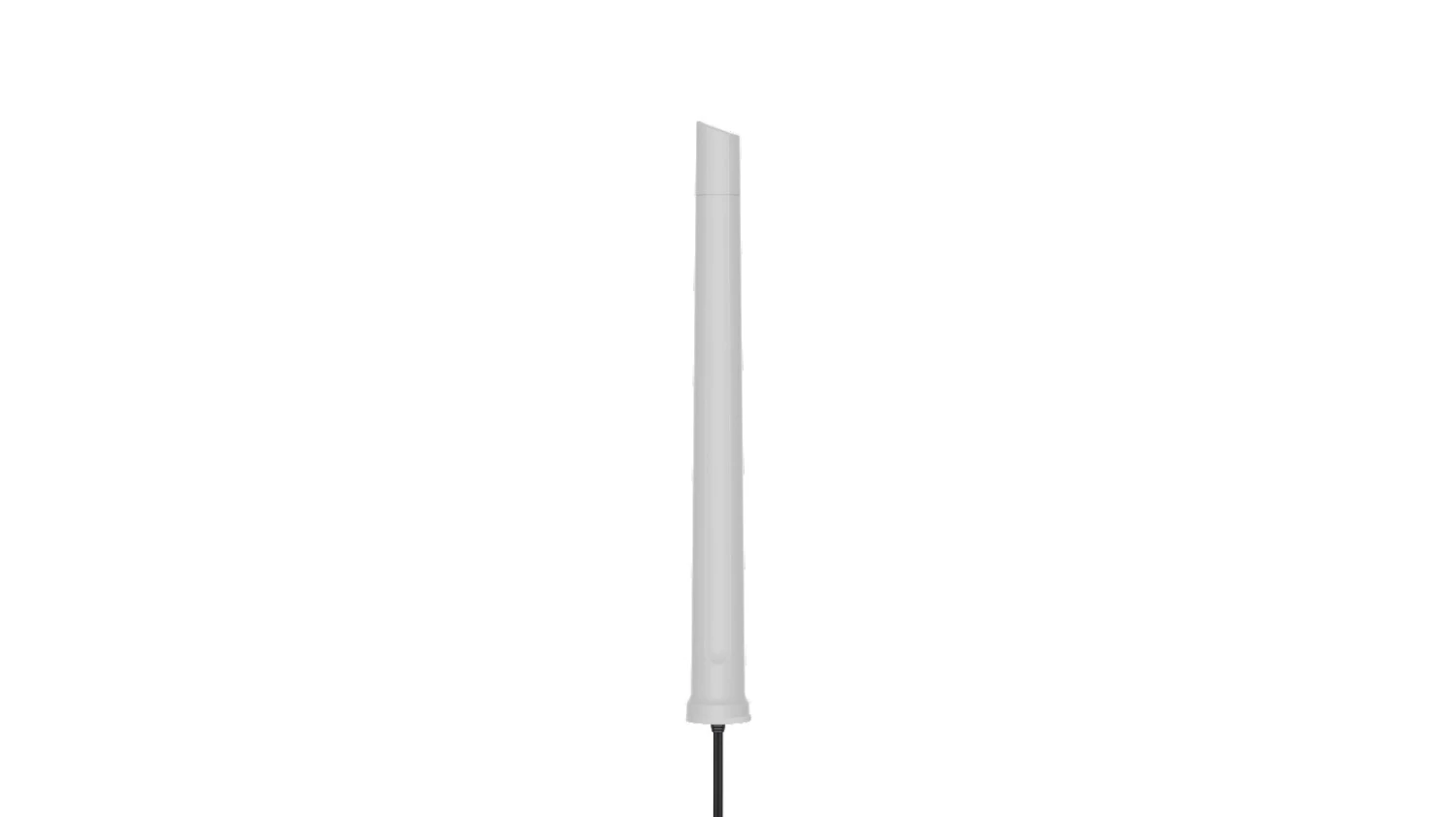

– Poynting OMNI-600 Antenna
Usable in all parts of the world, the OMNI-600 guarantees signal reception almost everywhere through Poynting’s new antenna configuration, using multiple dipoles and a unique (patented) feed network. The OMNI-600 is a future proof antenna because it covers the 450MHz frequency and 3.5GHz CBRS band.
Product dimensions: 645 mm x 45 mm x 48 mm
OMNI-600 Key Highlights
- 5G Ready; includes 3.2GHz – 3.8GHz CBRS Band
- Medium Gain Omni-Directional Antenna (max. Gain: 6.2 dBi)
- 2×2 MIMO
- LTE & WiFi
- Robust and Weather Resistant
- Consistent Gain over a very Wide Frequency Band
- 2.4 – 2.5 Ghz band can be used as WiFi Antenna
- Frequency Bands: 410 – 470 MHz | 690 – 960 MHz | 1710 – 2700 MHz | 3400 – 3800 MHz
- Stainless steel pole mount (max. 50mm)
- Cable Type: 5m HDF-195
- Connector Type: 2 x SMA (Male)
- Increased Connectivity Stability
- Mount included for wall and pole
Application Areas
- Machine to Machine (M2M)
- Poor data signal reception (indoor or outdoor)
- Slow data transmission connection
- Unstable connection
- Increase system transmission reliability
- Wi-Fi Applications
What’s in the Box?
- Antenna: A-OMNI-0600-V1-02
- Mounting Brackets: Wall and Pole mount stainless steel bracket
