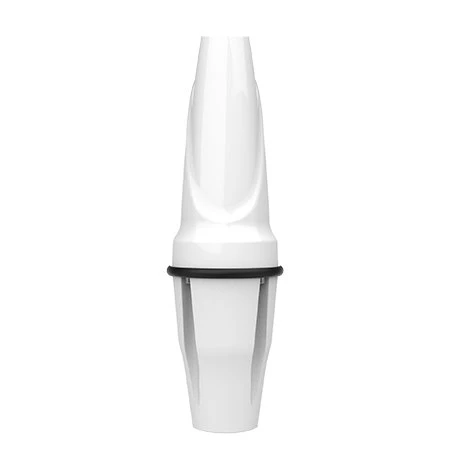

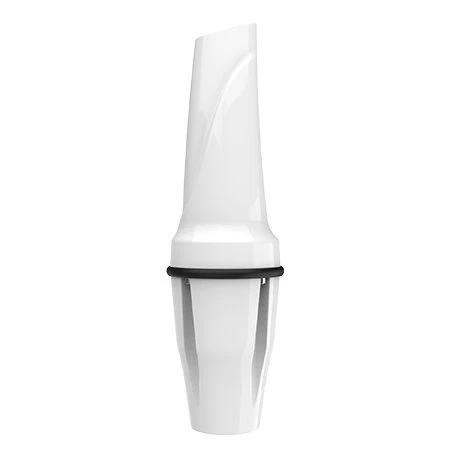

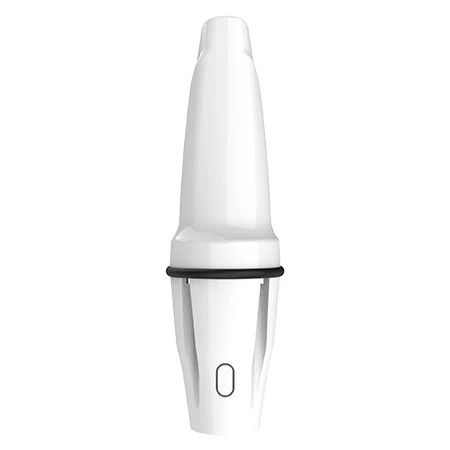

– Poynting OMNI-404 5G Antenna
This Poynting antenna is designed for superior pattern control over the entire frequency range, making the OMNI-404 an exceptional omni-directional antenna for its size and application. Poynting Antennas achieves this through a new antenna design using multiple dipoles and a unique (patented) feed network. A standard 1-inch (14 TPI) marine mount connector is used for simplified installation to most standard marine attachments.
Poynting OMNI-404 5G Antenna Key Highlights
- Medium gain omni-directional SISO antenna
- The antenna is purpose-built for marine and coastal applications
- Fits directly to standard 1-inch (14 TPI) marine mount
- UV and salt-water resistant
- Robust and weather resistant with IP68 rating
- Frequency bands: 698 – 3800 MHz
- Peak Gain: 2 dBi
- Connector type: N-Type (F)
- Polarisation: linear vertical
- Please note – the OMNI-404 comes with a Marine Adapter (1” -14 TPI) as standard. It also supports mounting to the following brackets which are sold separately: (flat mount), (ratchet mount), (rail mount)
Application Areas
- Marine applications, including yachts, boats, ferries
- Enhanced LTE reception
- IoT and M2M
- Poor data signal reception
- Improve data transmission connection reliability and stability
What’s in the Box?
- Poynting OMNI-404
- Marine adapter bracket included (1”, BRKT-40)
