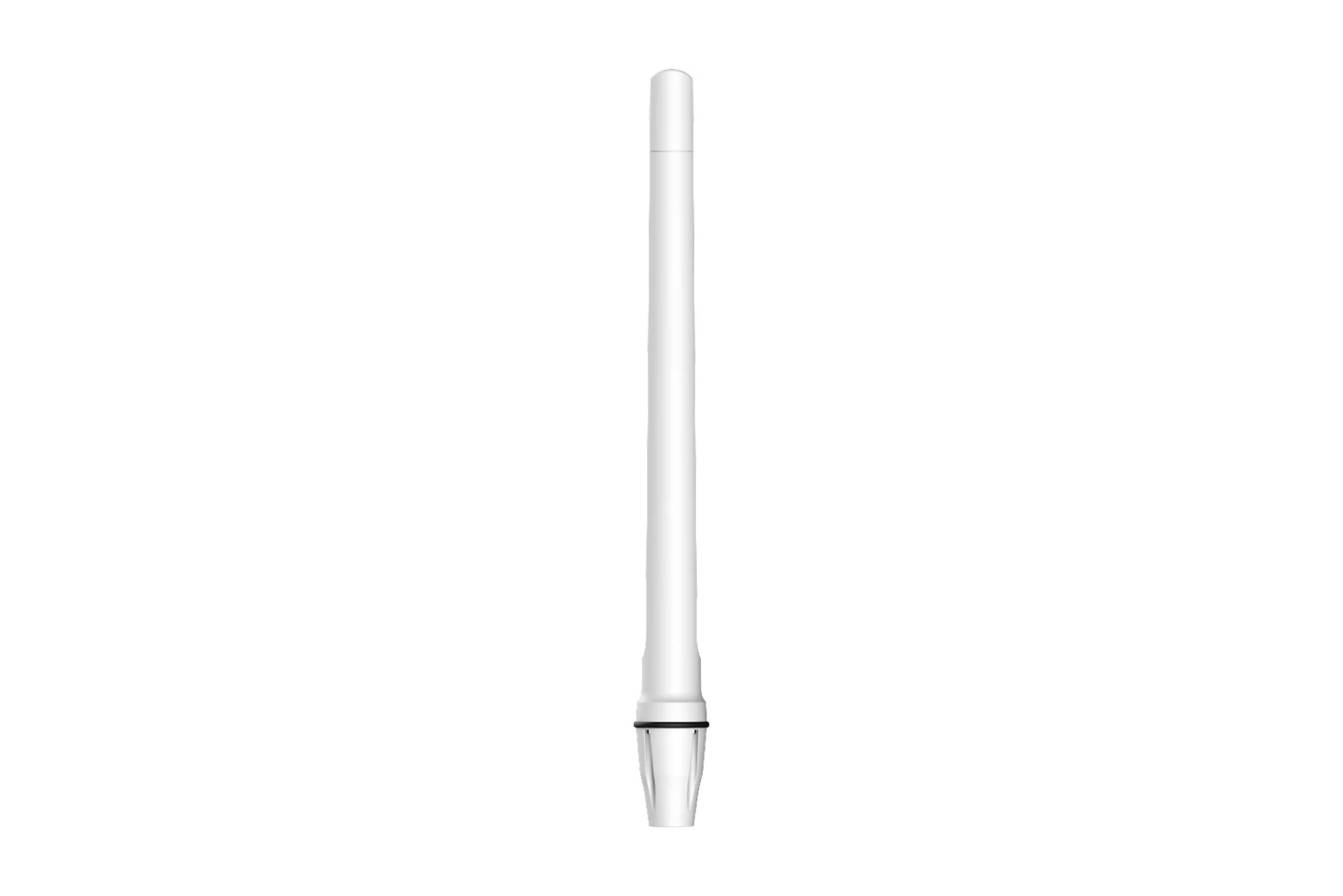

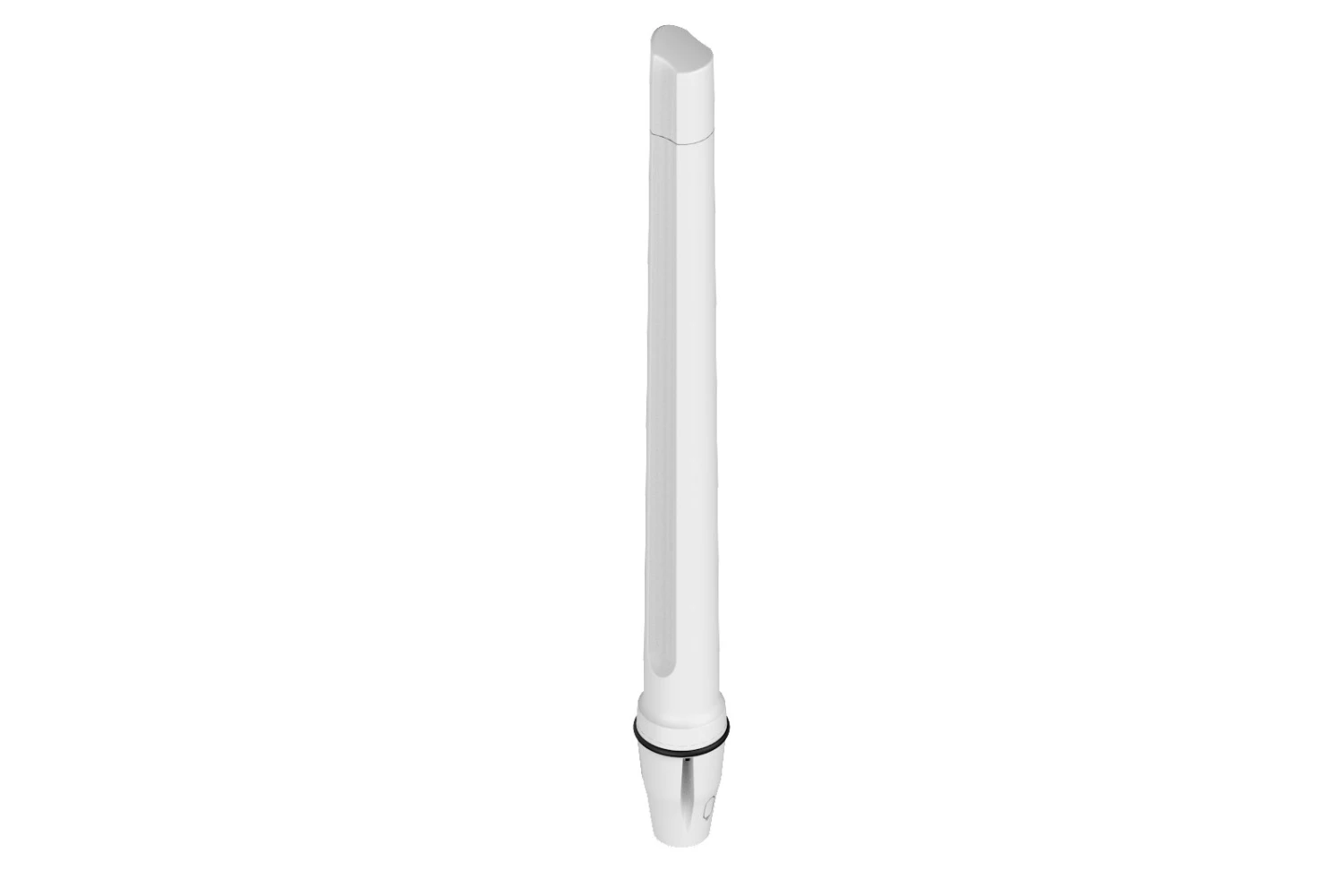

Poynting OMNI-402 Omni-Directional MIMO Marine Antenna

The OMNI-402 is future proof as it covers the 450 MHz LTE frequency band.

OMNI-402 dimensions: 648 mm x 45 mm x 48 mm

A-OMNI-0402-V1-01 Key Highlights

• 5G Ready; includes 3.2GHz – 3.8GHz CBRS Band
• 2×2 MIMO Marine Quality High-Performance Omni-Directional Antenna
• Easy mounting with feed through 1-inch marine standard adapter bracket (included)
• Robust and All-weather proof for harsh conditions at sea
• UV and Saltwater protected against tempestuous weather conditions
• Protected against water and dust ingress (IP68)
• Max Gain: 6.2 dBi
• Wideband – Frequency Bands: 410 – 470 MHz | 690 – 960 MHz | 1710 – 2170 MHz | 2300 – 2700 MHz
• 2.4 – 2.5 GHz band can be used as Wi-Fi antenna
• Factory Mounted 2m Coax Cable
• Factory Mounted Connector Type: 2 x SMA (male)
• Please note – the OMNI-402 comes with a Marine Adapter (1” -14 TPI) & L-bracket as standard. It also supports mounting to the following brackets which are sold separately: (flat mount), (ratchet mount), (rail mount)

Applications

• Marine applications / Yachts / Boats / Ferries
• Enhanced LTE Reception
• IoT and M2M
• Poor data signal reception
• Improve data transmission connection and stability
• Wi-Fi Applications

What’s in the Box?

• A-OMNI-0402-V1
• 1” (14 TPI) Marine Adapter (BRKT-40)
• L-bracket ( for Ø30-50mm pole)
