Poynting OMNI-297 Omni-Directional Wideband LTE, 5G Rhyno Antenna

The OMNI-297 is designed for superior pattern control over the entire frequency range, making the OMNI-297 an exceptional omni-directional antenna for its size. The constant gain across the entire frequency range improves the LTE performance features, such as multi carrier aggregation (CA). The ideal operation for the antenna will be for fixed installations of any cellular bands. It is also ideal for machine to machine (M2M) and internet of things (IoT) applications that communicate through the GSM networks (GPRS/EDGE/3G/HSPA/LTE).

Poynting Rhyno OMNI-297 Key Highlights

• Medium gain, omni-directional antenna
• Suitable for 5G deployment up to 3800 MHz
• Compatible with 4G/3G/2G technologies, supports 2.4 GHz Wi-Fi
• Ideal for IoT and M2M applications
• Robust and low-profile design
• Dust and water ingress protected with IP68 rating
• Frequency Bands: 698-960 MHz, 1710-2700 MHz, 3400-3800 MHz
• Peak Gain: 2 dBi
• Coax Cable Type: RG 58
• Coax Cable Length: 0.6 m
• Connector Type: SMA (M)

Application Areas

• Machine to Machine (M2M) and Internet of Things (IoT)
• Poor data signal reception (indoor or outdoor)
• Improves slow data transmission connection
• Increases system transmission reliability
• High-end industrial grade router applications
• Improves reception for mobile offices

What’s in the Box?

• Poynting OMNI-297
• L-Bracket
• Adhesive Surface Mount

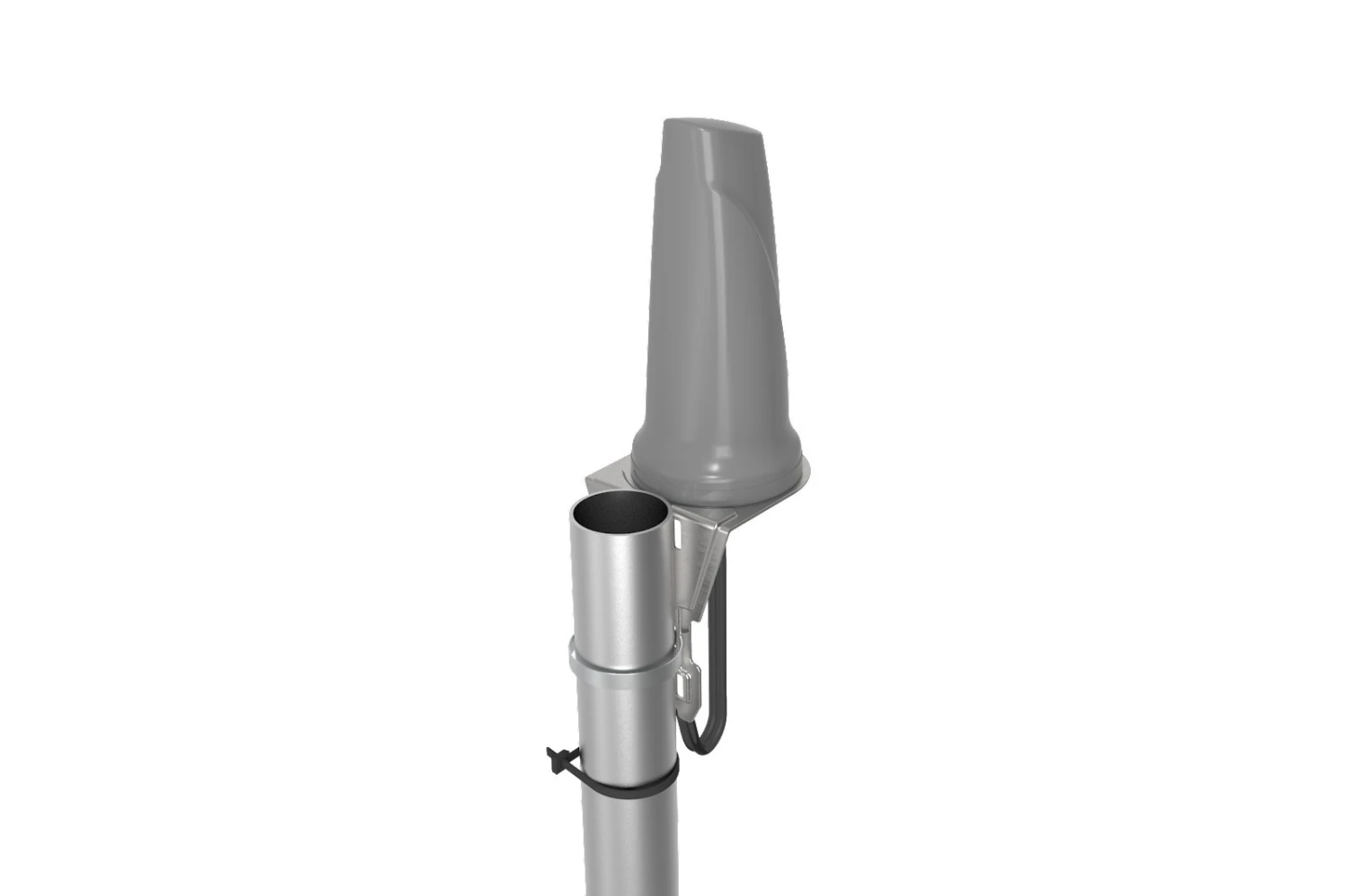

• Please note: pole in images is for illustrative purposes only
