– Poynting OMNI-296 Antenna
The OMNI-296’s housing is made of ABS, which is high impact resistant plastic and is also resistant to acids and other chemicals that may occur in industrial plants.
This antenna has a N-Type female connector at its base, which can be terminated to a cable of the desired type and length.
OMNI-296 dimensions: 485 mm x 75 mm x 75 mm
A-OMNI-0296-V1 Key Highlights
- Max Gain: 7.5 dBi
- Vandal and water resistant enclosure
- Dual band 2.4 GHz and 5 GHz
- Frequency Bands: 2400 – 2500 MHz | 3300 – 3800 MHz | 5000 – 6000 MHz
- Also works at the Wi-Fi/WiMax/LTE 3.3GHz-3.8GHz frequencies, with a max gain of 7.5dBi
- N-Type Female Connector factory mounted
- Wall and Pole Mountable (Included)
Applications
- Small Business
- Building Sites
- Factories
- Open Mine Sites
- Production Facilities
- M2M
- Areas with large amounts of machinery (cluttered environment)
What’s in the Box?
- Poynting A-OMNI-0296-V1 antenna
- L-Bracket 316 stainless steel wall and pole mount bracket

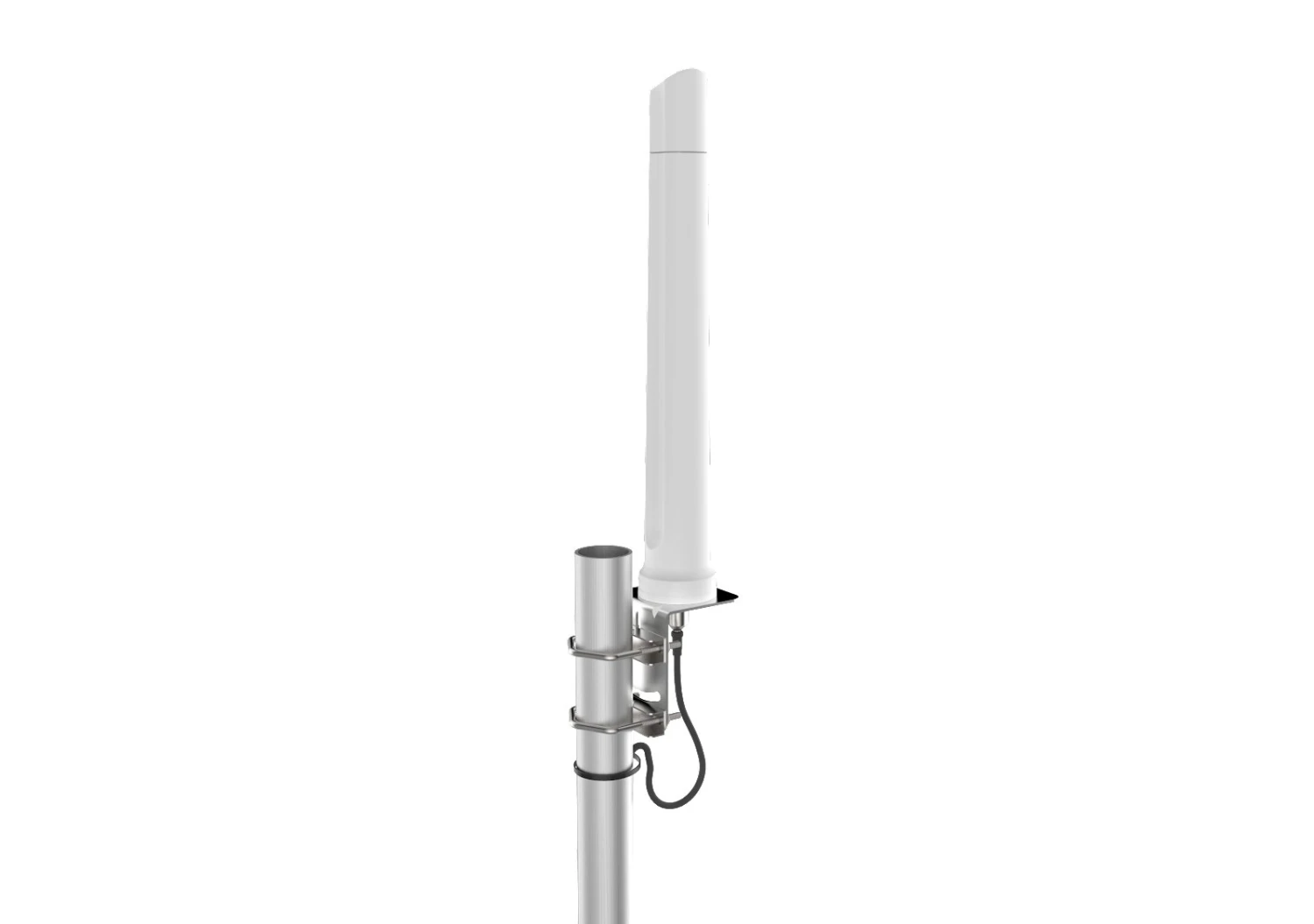

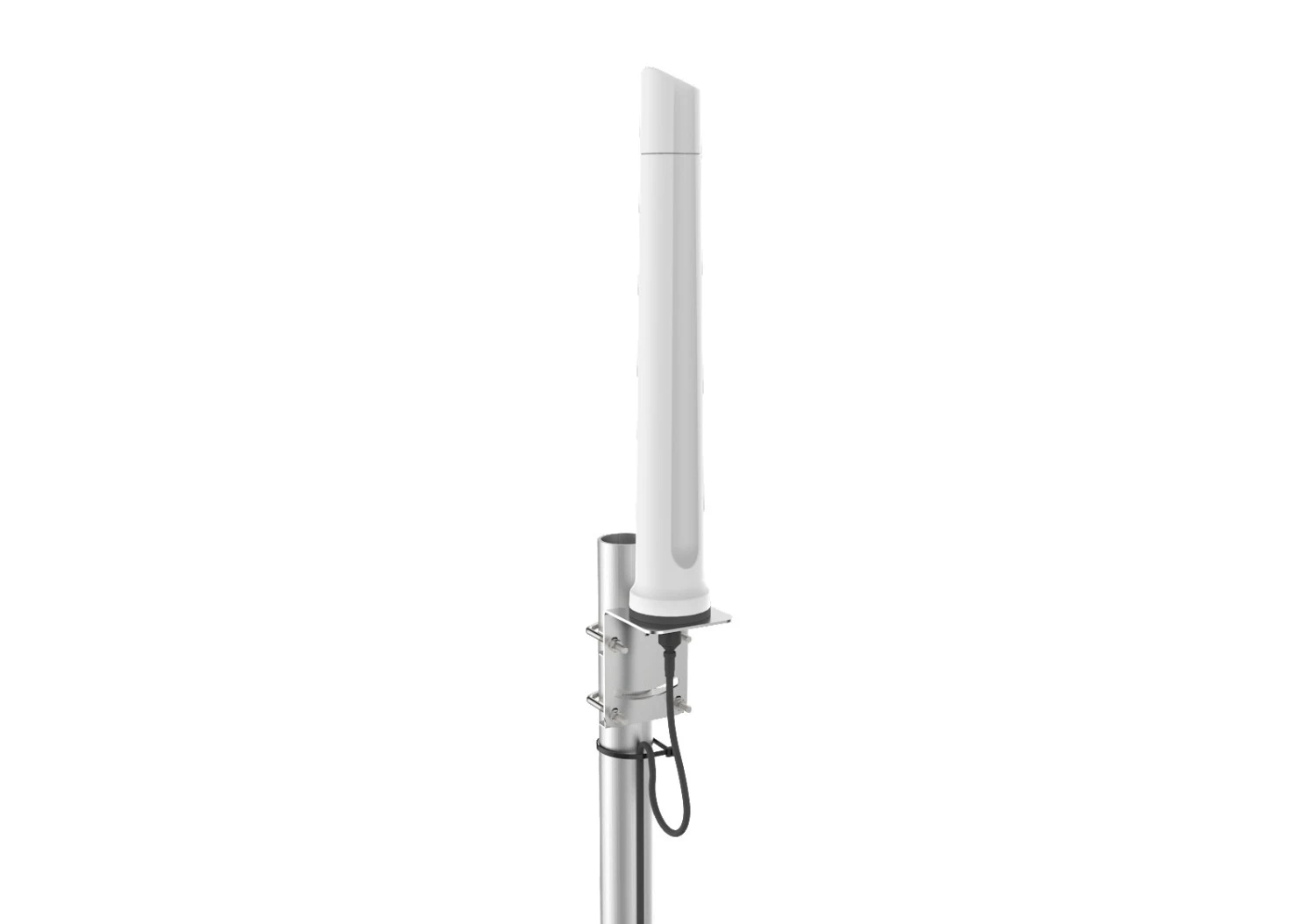

- Please note: pole in images is for illustrative purposes only
