Poynting OMNI-292 Ultra-Wide Omni-Directional LTE & WiFi Antenna

OMNI-292 offers consistent high gain over a wide frequency band with excellent radiation pattern performance. This makes it a very popular choice with installers because of its
base station agile. It also has an N-Type female connector so that any cable type or cable length can be connected to it.

Product dimensions (L x W x D): 645 mm x 45 mm x 48 mm

OMNI-292 Key Highlights

• Replaces OMNI-69
• Consistent high gain over a very wide frequency band
• High gain antenna (Max: 8 dBi)
• Frequency Bands: 690 – 960 MHz | 1710 – 2700 MHz
• Wall or pole mountable
• Stainless steel pole mount (max. 50mm)
• Agile base station
• Compatible with 4G, 3G and 2G technologies
• Supports 2.4Ghz WiFi
• Increased connectivity stability
• Vandal and water resistant enclosure
• Ideal for machine to machine applications
• Factory-Mounted Connector: N-Type (Female)

Application Areas

• Machine to machine (M2M)
• Poor data signal reception (indoor or outdoor)
• Slow data transmission connection
• Unstable connection
• Increases system transmission reliability
• High-end industrial grade router applications
• Mobile Offices
• Caravans, RTV’s

What’s in the Box?

• Antenna: A-OMNI-0292-V2
• Mounting Bracket: Stainless Steel Wall and Pole L-Bracket 316 (for Ø 30-50mm pole)

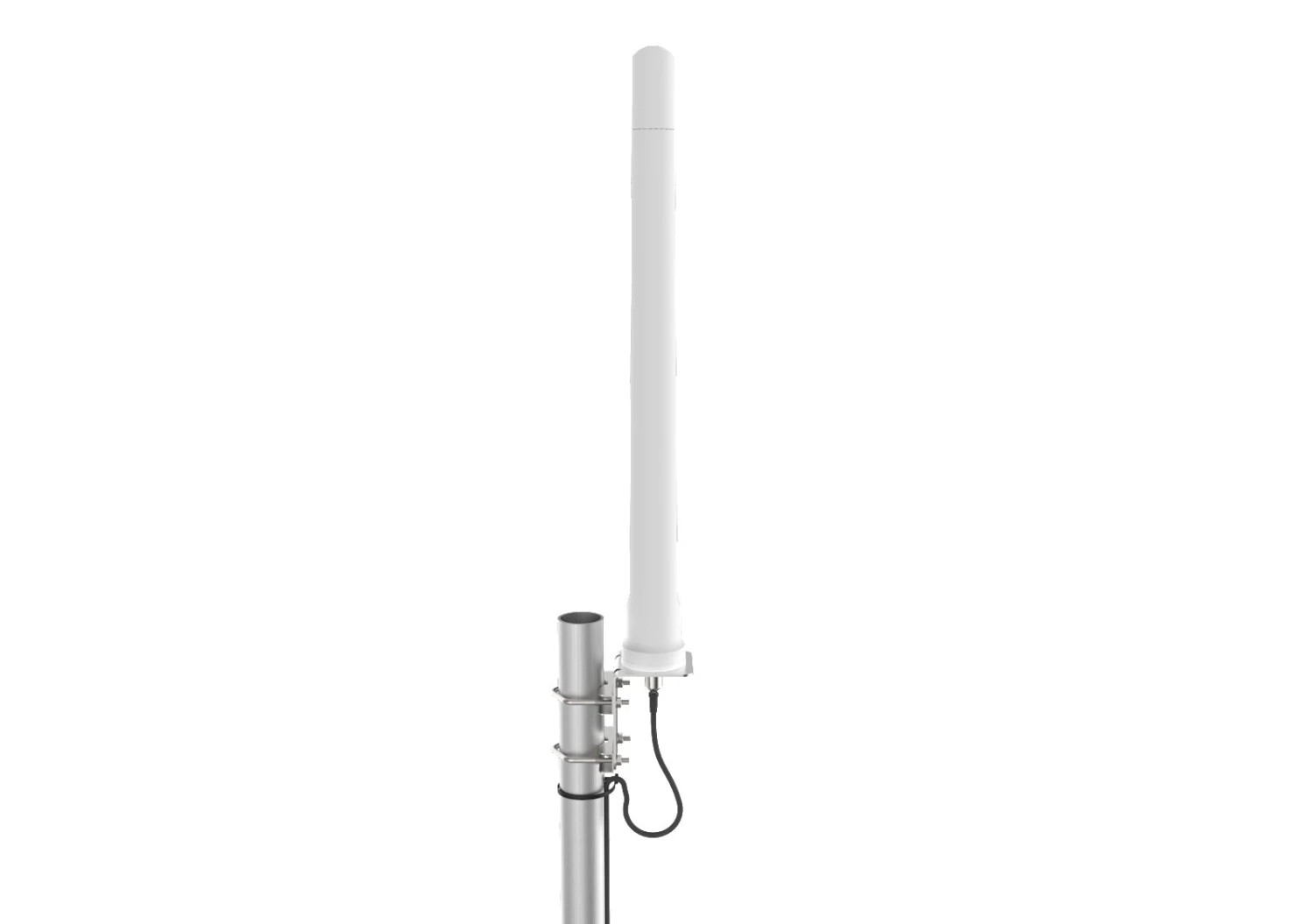

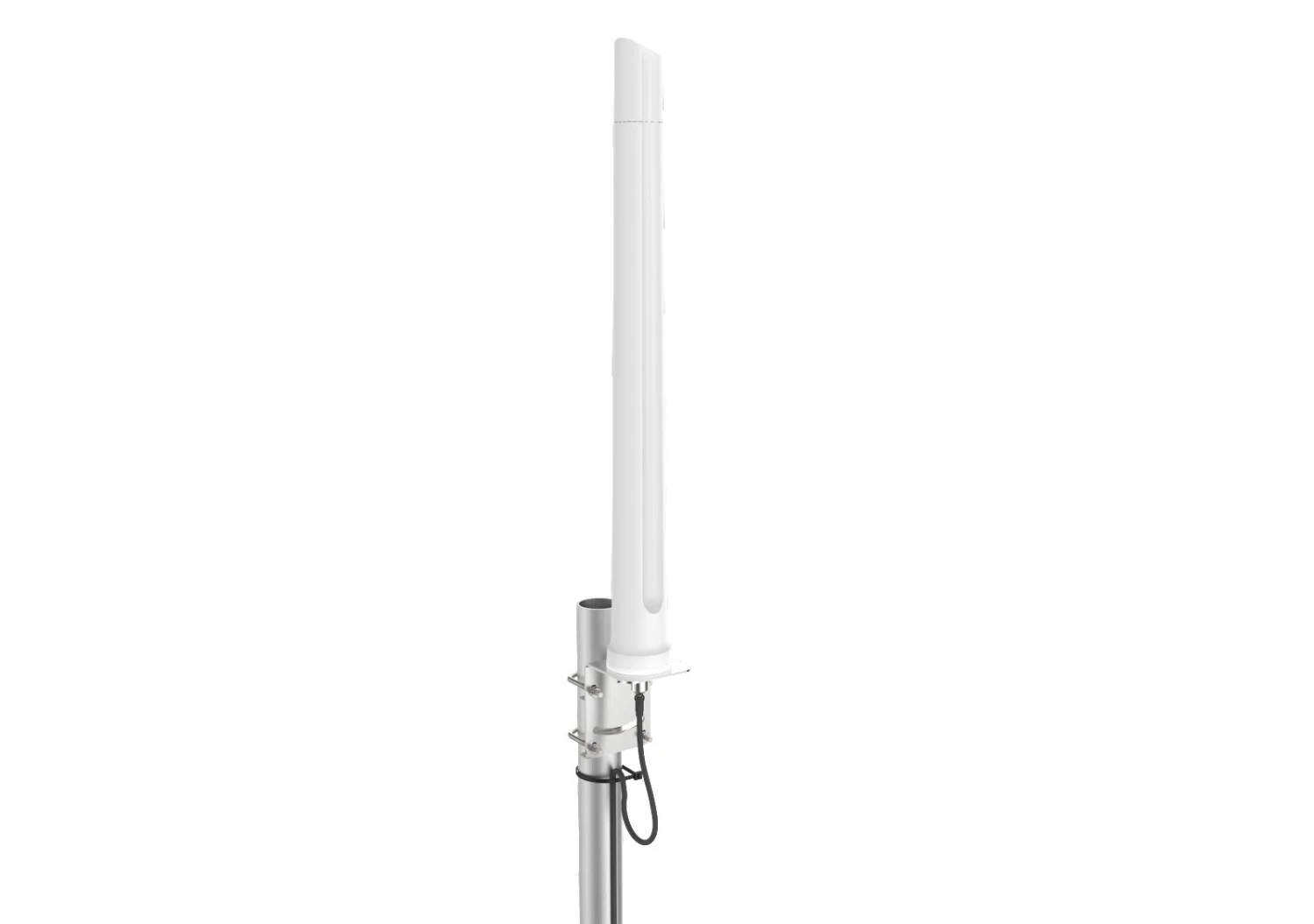

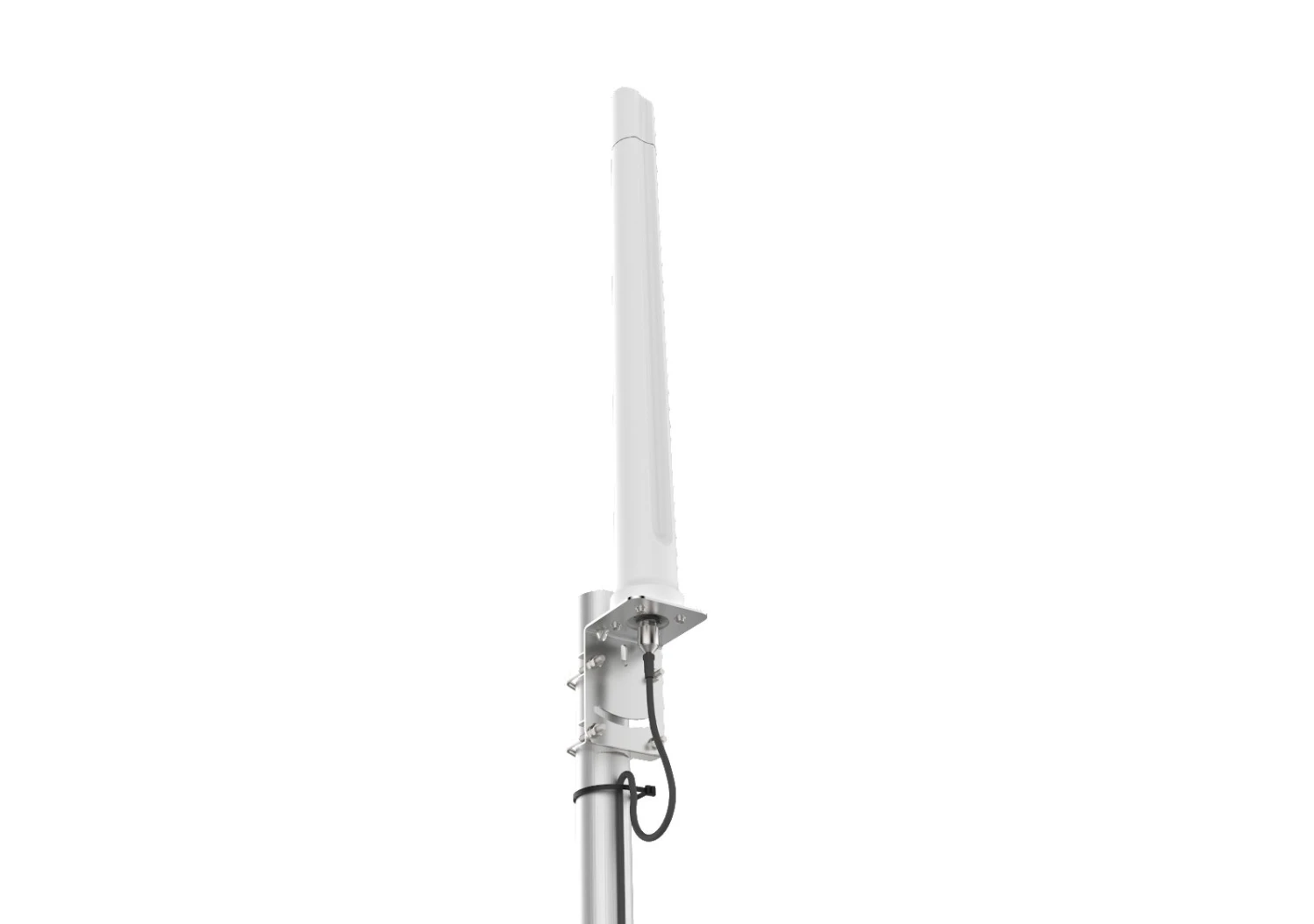

• Please note: pole in image is for illustrative purposes only
