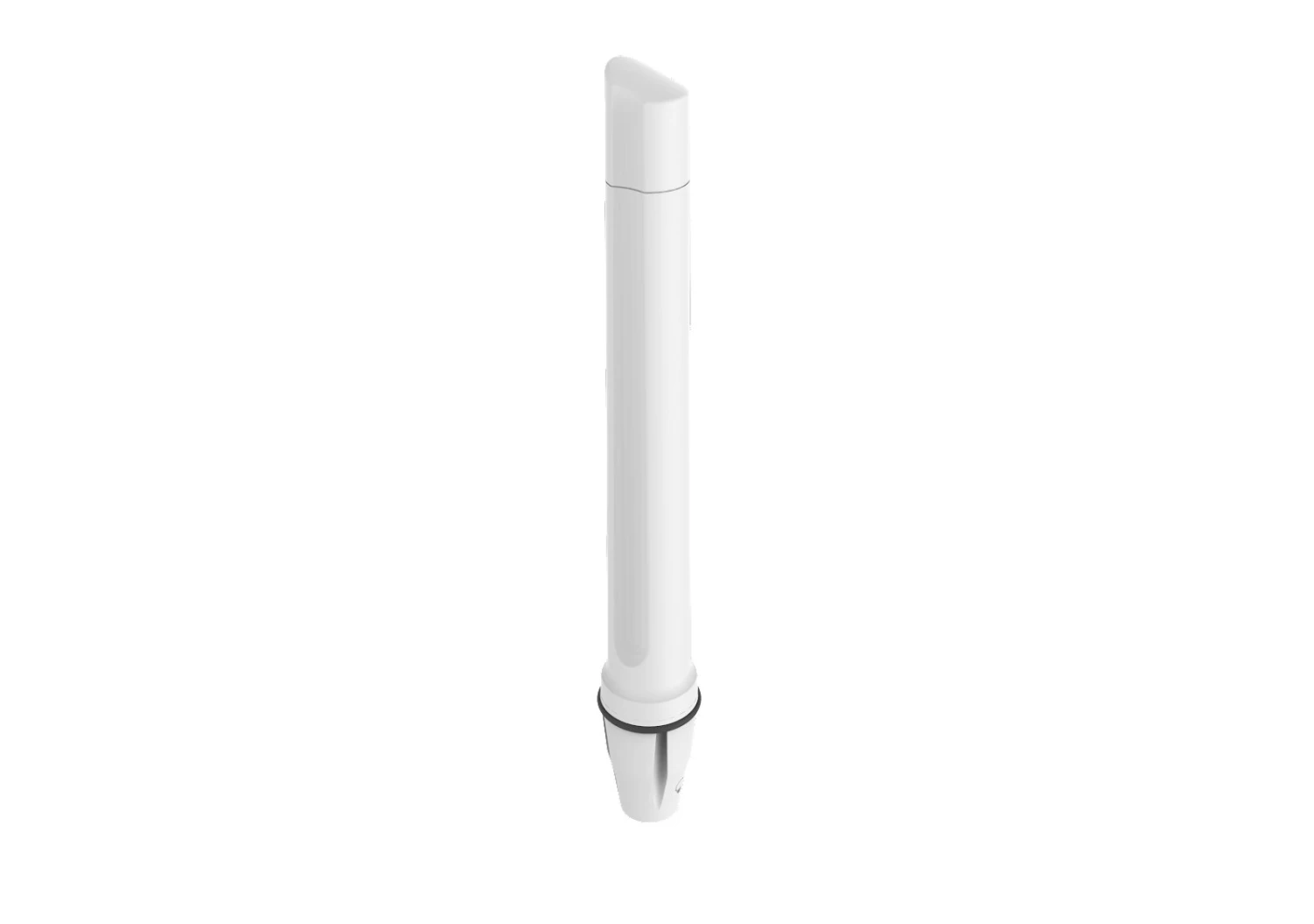

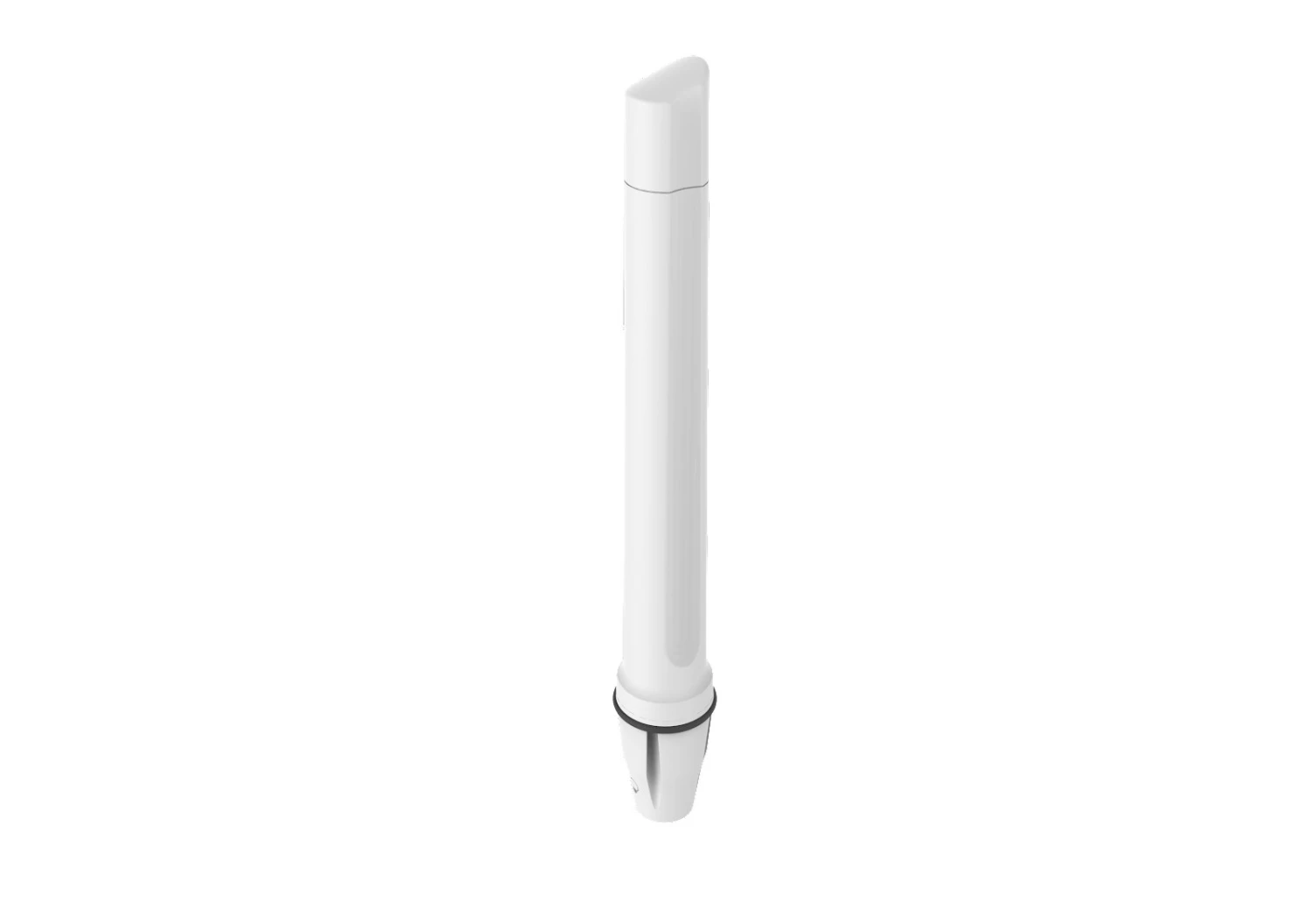

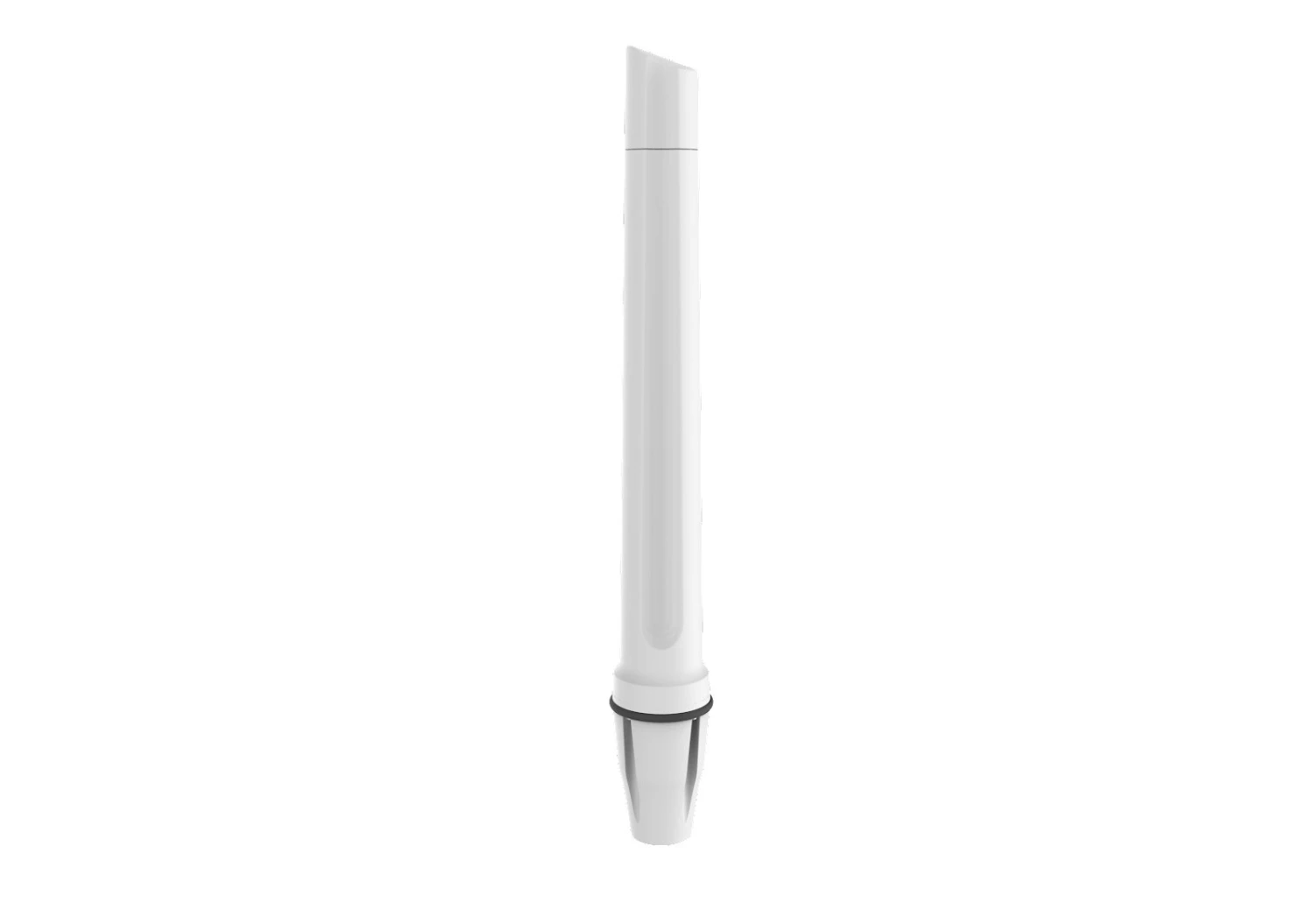

– Poynting OMNI-291-V2 Antenna
The OMNI-291’s ultra-wide frequency band covers all contemporary LTE operating frequencies with good and balanced gain across all frequencies, including the LTE and CDMA 450 MHz bands which are common requirements for marine applications.
Product dimensions: 453 mm x 40 mm x 46 mm
OMNI-291-V2 Key Highlights
- Ultra-Wideband
- Frequency Bands: 450 – 470 MHz | 690 – 960 MHz | 1710 – 2170 MHz | 2300 – 2700 MHz
- Medium gain antenna (Max: 7 dBi)
- Purpose-built for marine and coastal applications
- Lightweight
- UV and Salt-water resistant
- 2.4 – 2.5 GHz band can be used as Wi-Fi antenna
- Factory-Mounted Connector type: N-Type (Female)
- Please note – the OMNI-291 comes with a Marine Adapter (1” -14 TPI) & L-bracket as standard. It also supports mounting to the following brackets which are sold separately: (flat mount), (ratchet mount), (rail mount)
Application Areas
- Marine applications, suitable for a variety of Yachts / Boats / Ferries
- IP68
- Enhanced LTE Reception
- IoT and M2M
- Poor data signal reception
- Improve data transmission connection reliability & stability
- Wi-Fi Applications
What’s in the Box?
- Antenna: A-OMNI-0291-V2
- Mounting bracket included: Marine Adapter (1” -14 TPI) & L-bracket (Ø30-50mm Pole)
