Poynting OMNI-214 Ultra-Wide Omni-Directional 4×4 MIMO LTE 5G Antenna
Original price was: $158.99.$98.99Current price is: $98.99.
The Poynting OMNI-214 is an ultra-wideband antenna, which covers all contemporary LTE/5G frequency bands with excellent balanced gain across all frequencies from 617 to 3800 MHz. The OMNI-214 offers 4×4 MIMO capability from its vertically separated radiating elements, all in the same single radome.
- Product guarantee 100% satisfaction
- High quality products, low prices.
- High quality products, hassle-free returns.
- Control the delivery date and try to deliver it in the fastest time
– Poynting OMNI-214 Antenna
The OMNI-241 design allows for superior pattern control over the entire frequency range, making the it a true omni-directional 4×4 MIMO antenna. It is suitable for urban or commercial applications, such as industrial and commercial . The OMNI-214 guarantees signal reception almost everywhere and is usable in all part of the world.
The ultra-wideband performance of the OMNI-241 makes this antenna future proof, as it covers LTE Band 71 (617 to 698 MHz) as well as the CBRS bands from 3400 to 3800 MHz for inland use. The antenna comes with an IP65 protection rating against dust and water ingress, making it ideal for urban and commercial deployments.
OMNI-214 Key Highlights
- 4×4 MIMO capability
- LTE/5G/4G bands
- Frequency bands: 617 – 960 MHz; 1427 – 1517 MHz; 1710 – 2700 MHz; 3400 – 3800 MHz
- Includes Band 71 (617 to 698 MHz) and 3.5 GHz 5G band
- Robust, dust and water-resistant IP65 rated enclosure
- UV and salt-water resistant enclosure
- Polarisation: Linear (Vertical)
- Peak Gain: 3.5 dBi
- Coax Cable Type: HDF 195
- Coax Cable Length: 2m
- Connector Type: SMA (M)
Application Areas
- Enhanced LTE/4G and 5G reception
- Increase system transmission reliability
- High-end industrial grade router applications
- Industrial and commercial LTE/5G deployment
- Agricultural and farming LTE/5G data distribution
What’s in the Box?
- Antenna: A-OMNI-0292-V2
- Mounting Bracket: Stainless Steel Wall and Pole L-Bracket 316 (for Ø 30-50mm pole)

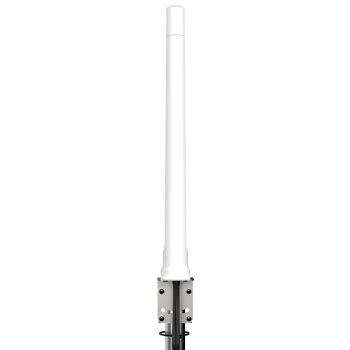

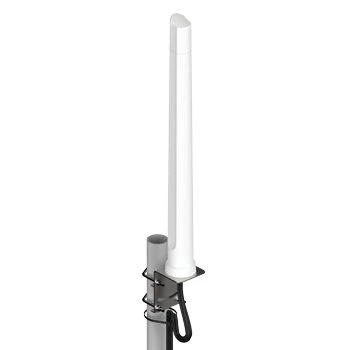

- Please note: pole in image is for illustrative purposes only
