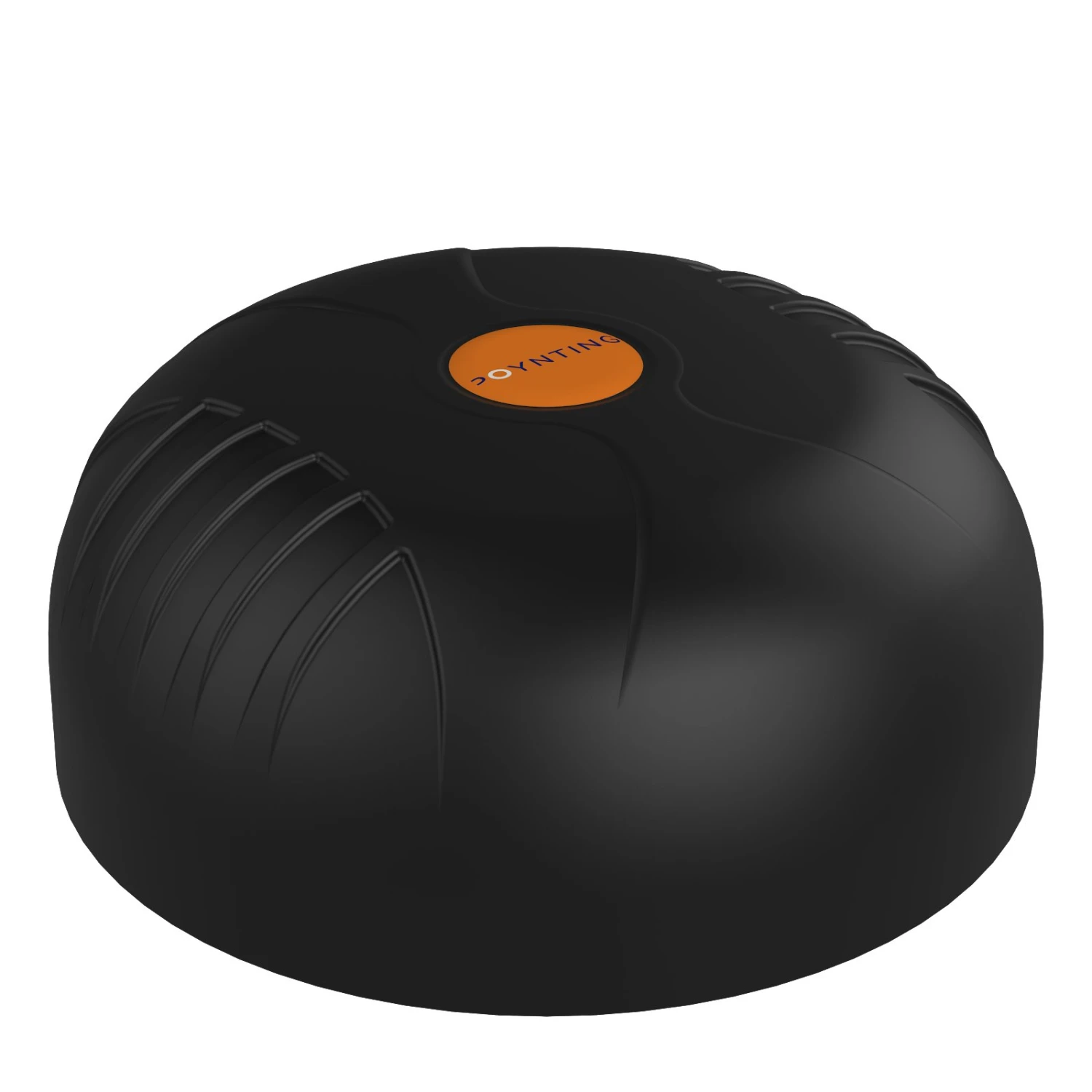

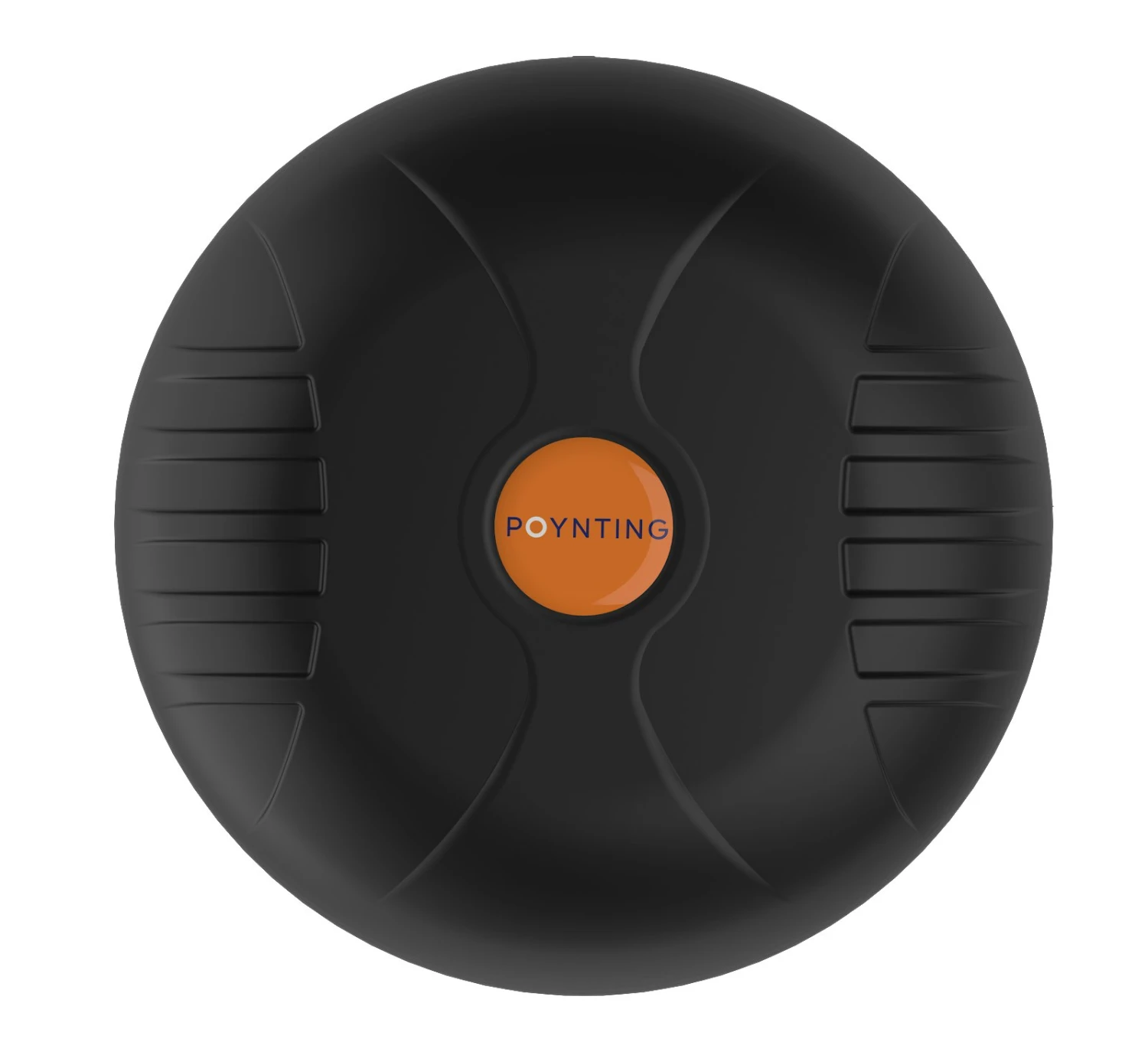

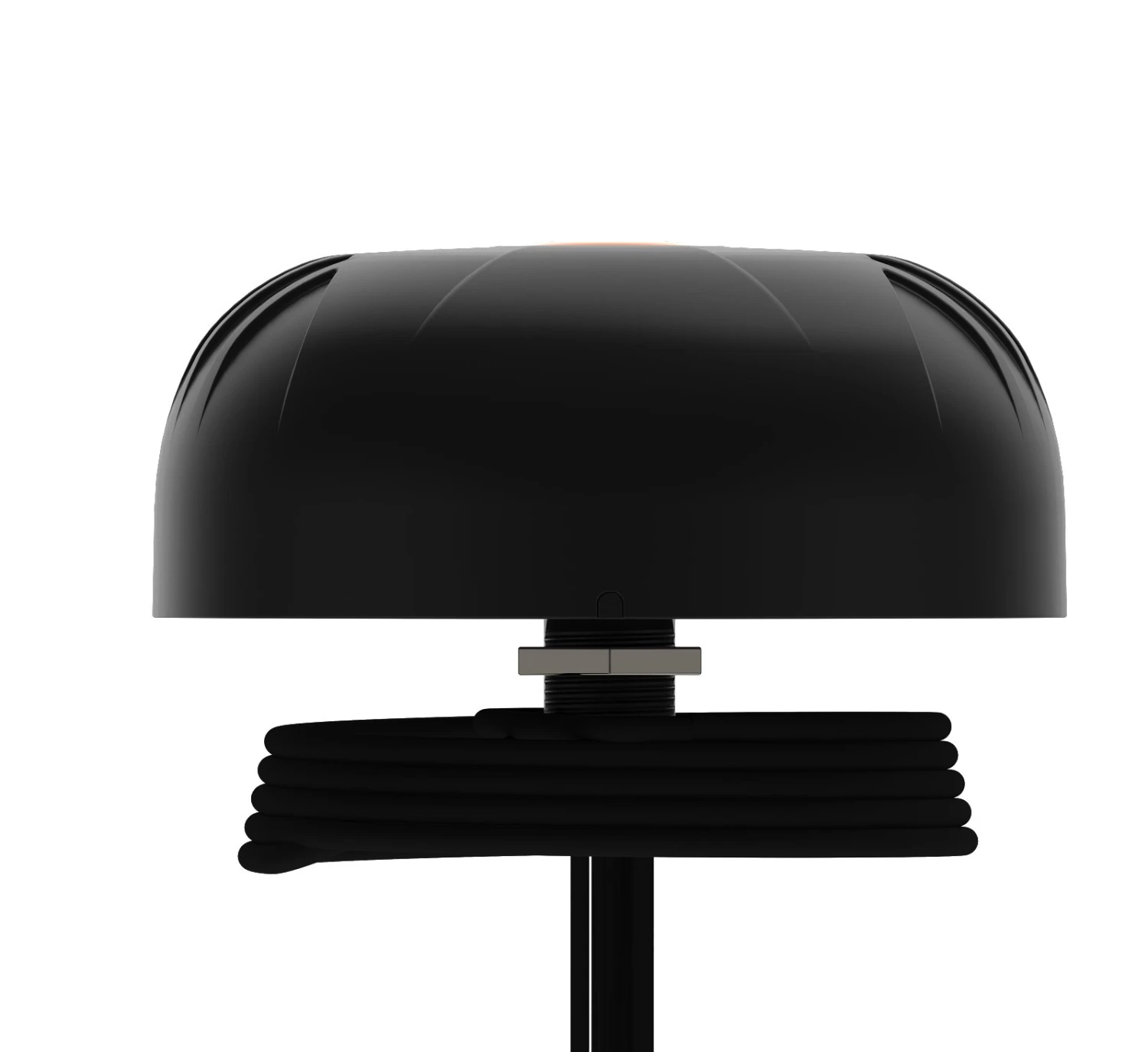

Poynting MIMO-4-19 9-in-1 Transportation & Automotive Antenna (Black)

The MIMO-4-19 antenna also provides four dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 to 7.2 GHz on each antenna for 4×4 MIMO capability.

The MIMO-4-19 exceeds the performance of most competitors due to the attention to the design of this high-performance antenna. The radiation patterns of all radiating elements, provide an excellent balance between omni-directionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for.

Main applications are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining futureproof over the wide frequency band.

MIMO-4-19 Black Key Highlights

• 9-in-1 High performance multi frequency automotive antenna
• Ultra-wideband coverage from 617 to 6000 MHz for cellular
• 4×4 MIMO LTE/5G, 4×4 MIMO Wi-Fi & GPS/GLONASS
• Robust and weather resistant antenna with an IP69K rating
• Ideal for transportation and marine implementation
• Multi mounting options for ease of installation
• Radome Material: PC+ABS (Halogen Free)
• Ports: 9
• SISO/MIMO: 4×4 MIMO
• Coax Cable Type: RTK-031 – LTE, Wi-Fi & GPS
• Coax Cable Length: 2m – LTE, Wi-Fi & GPS
• Connector Type: SMA (M) – LTE, Wi-Fi & GPS
• Also available in white

Application Areas

• Transport broadband cellular and Wi-Fi distribution, automation and telemetry for busses, utility, trucking and public safety vehicles
• Industrial factory automation, robotic machinery and other M2M systems telemetry
• Farming & Agricultural automation such as M2M & IoT
• Broadband cellular to Wi-Fi distribution for Marine/Boats
• Mining vehicles & machinery communications, telemetry, and automation (M2M & IoT)

What’s in the Box?

• Antenna: A-MIMO-0004-V1-19-B
• Mounting kit
