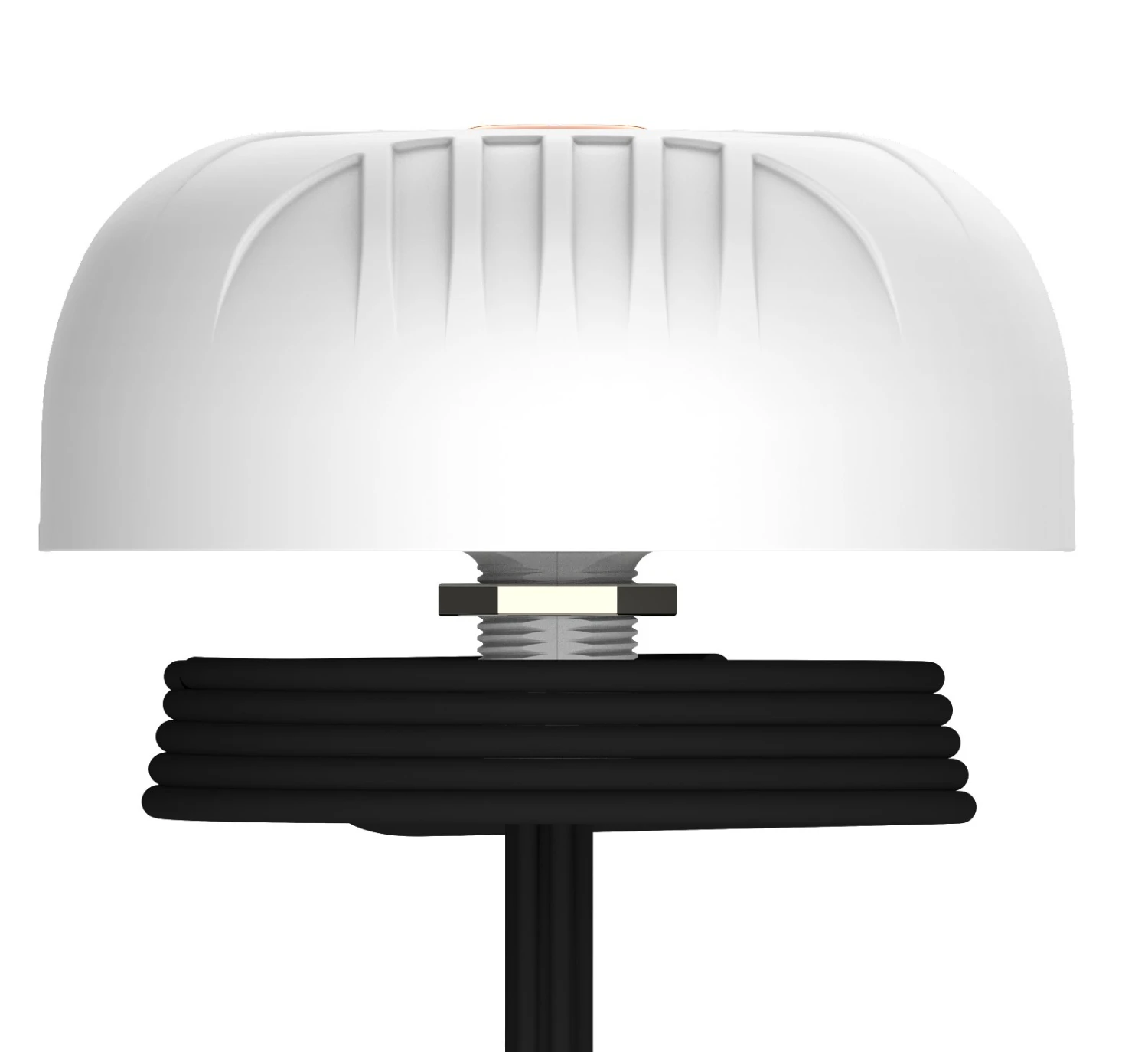

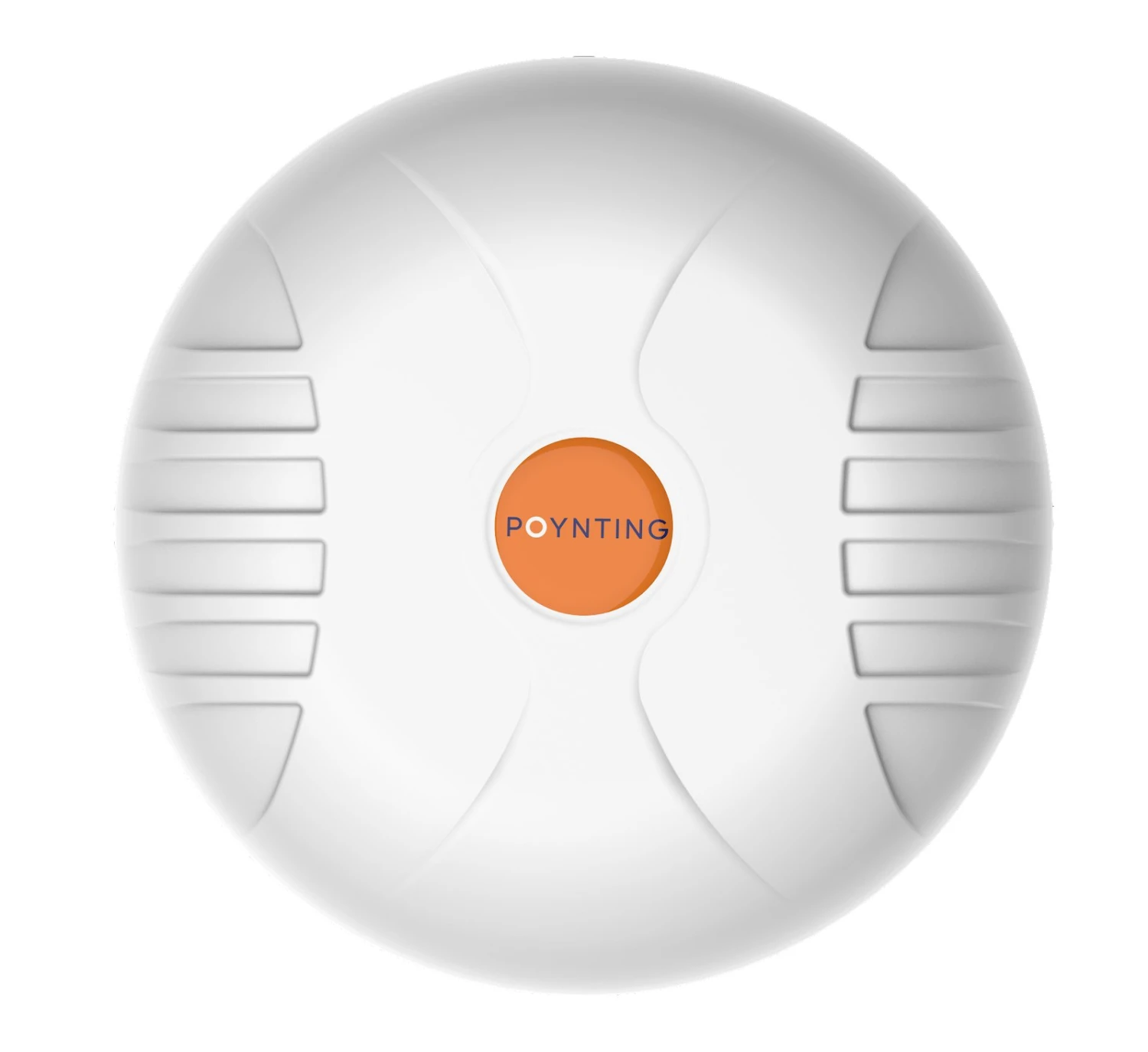

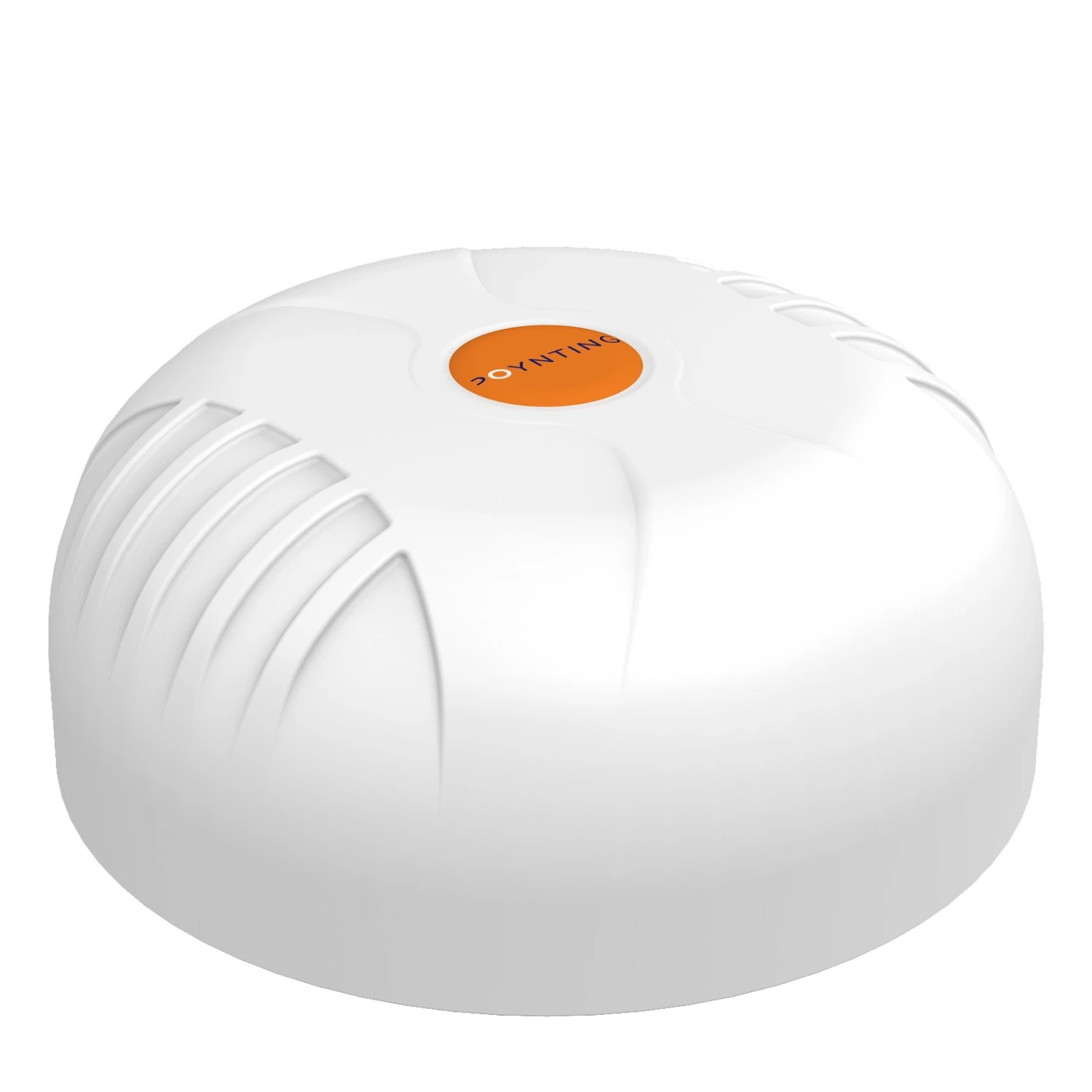

Poynting MIMO-4-15 5-in-1 Transportation & Automotive Antenna (White)

The ultra-wideband performance of the MIMO-4-15 allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications, as well as Wi-Fi applications from 5 to 6 GHz.

This antenna provides two dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 to 7.2 GHz on each antenna for 2×2 MIMO capability. The radiation patterns of all radiating elements provide an excellent balance between omni-directionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for.

The main applications of the MIMO-4-15 are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining future-proof over the wide frequency band.

MIMO-4-15 White Key Highlights

• 5-in-1 High performance multi frequency automotive antenna
• Ultra-wideband coverage from 617 to 6000 MHz for cellular
• Features 2 x cellular, 2 x Wi-Fi and 1 x GPS/GLONASS antenna
• Ultra-rugged mechanical design to allow for IP69K rating
• Ground plane independent; antenna design with internal ground
• Multiple mounting options available for ease of installation
• Radome Material: PC+ABS (Halogen Free)
• Ports: 5
• SISO/MIMO: 2X2 MIMO LTE & 2X2 Wi-Fi
• Coax Cable Type: RTK-031 – LTE, Wi-Fi & GPS
• Coax Cable Length: 2m – LTE, Wi-Fi & GPS
• Connector Type: SMA (M) – LTE, Wi-Fi & GPS
• Also available in black

Application Areas

• Transport broadband and Wi-Fi distribution, automation and telemetry for busses, utility, trucking, and public safety vehicles
• Industrial factory automation, robotic machinery and other M2M systems telemetry
• Farming & Agricultural automation such as M2M & IoT
• Broadband cellular to Wi-Fi distribution for Marine/Boats
• Mining vehicles & machinery communications, telemetry, and automation (M2M & IoT)

What’s in the Box?

• Antenna: A-MIMO-0004-V1-15-B
• Mounting kit
