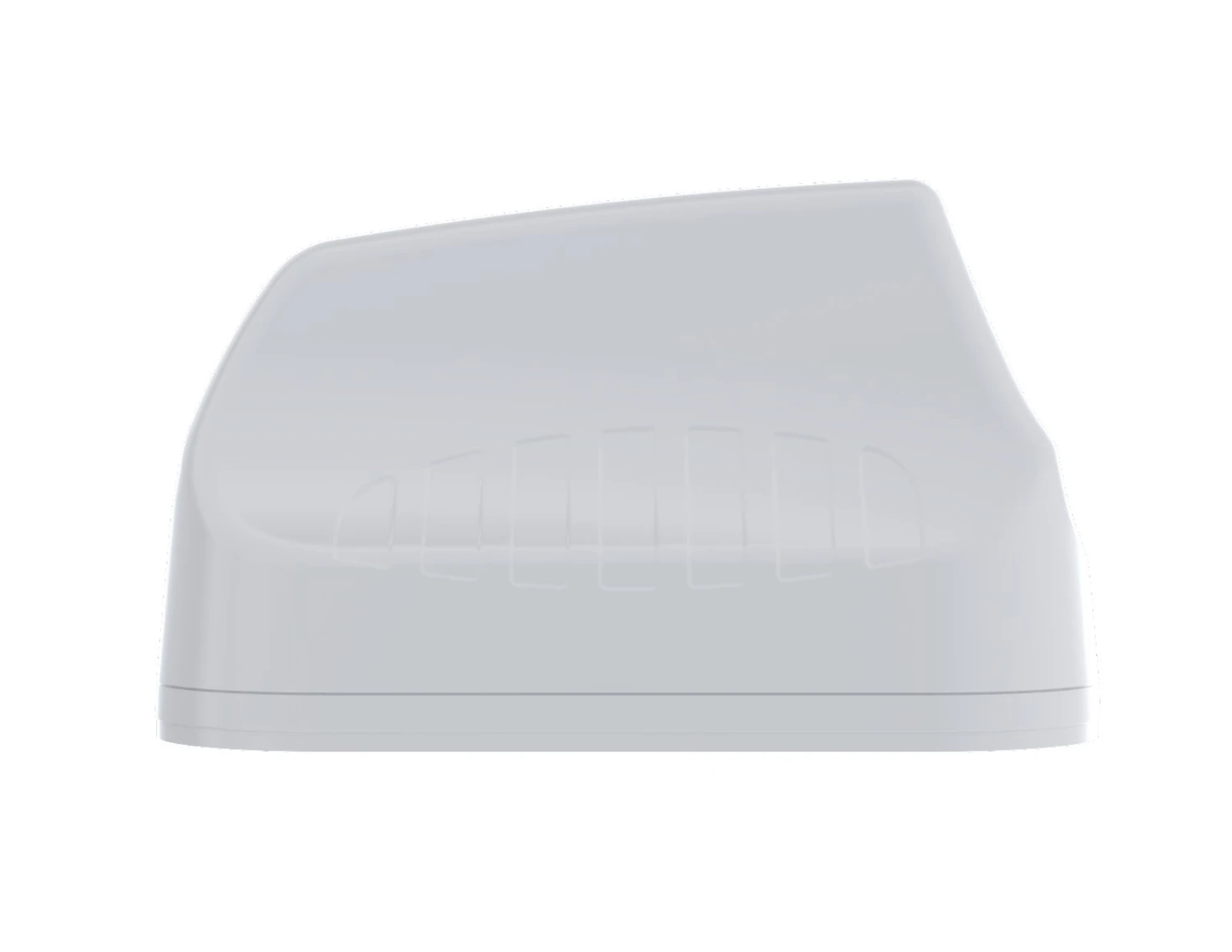

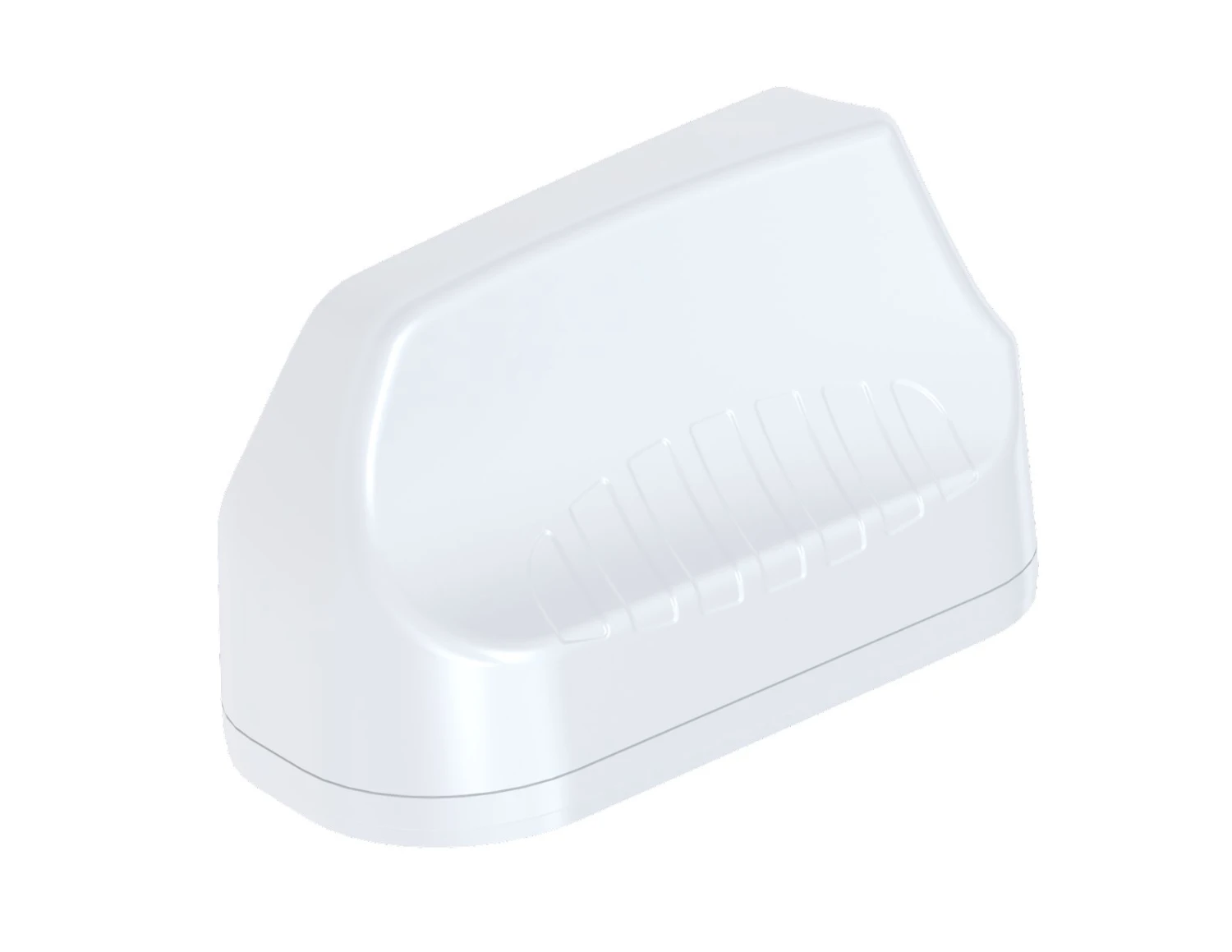

Poynting MIMO-3-V2-12 Transportation And Marine Omni MIMO Antenna
Original price was: $148.49.$95.99Current price is: $95.99.
This Poynting MIMO-3-V2-12 is a high performance 2-in-1 cellular antenna system, ideal for transportation and marine applications. Due to its wide band capabilities, this device can be used across different operators and technologies and is ready for future cellular technologies such as 5G up to 3.8GHz
- Product guarantee 100% satisfaction
- High quality products, low prices.
- High quality products, hassle-free returns.
- Control the delivery date and try to deliver it in the fastest time
– Poynting MIMO-3-V2-12
The 2 x Cellular (2G/3G/4G) MIMO antennas cover the contemporary 690MHz to 2700MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, used commonly for LTE.
The MIMO-3-V2-12 is designed with an internal ground plane, making this antenna suitable for implementation on all surface types.
Product dimensions (L x W x D): 253 mm x 128 mm x 144 mm
MIMO-3-V2-12 Key Highlights
- 2-in-1 high performance multi frequency 2G/3G/4G/LTE antenna (5G Ready)
- Ground plane independent
- Ultra-wideband
- Cellular Frequency Bands: 410 – 470 MHz | 690 – 960 MHz | 1710 – 2170 MHz | 2300 – 2500 MHz | 2500
– 2700 MHz | 3400 – 3800 MHz - Cellular Max Gain: 5.8 dBi
- IP68 Rating – Corrosion/Water/Dust Resistance
- Multi mounting options for easy installation
- 2m Factory Mounted Coax Cable
- Connector type: SMA (Male) – factory mounted
Application Areas
- Transport Broadband automation and telemetry for Buses, Utility, Trucking & Public Safety vehicles
- Industrial factory automation, robotic machinery and other M2M systems telemetry
- Farming & Agricultural automation such as M2M & IoT
- Broadband cellular distribution for Marine / Boats (inland and near-coastal vessels)
- Mining Vehicles & Machinery Communications, Telemetry and Automation (M2M & IoT)
What’s in the Box?
- Antenna: MIMO-3-V2-12
- Mounting brackets: Threaded Spigots (Up to 60mm clamping thickness) & Adhesive Surface Mount
