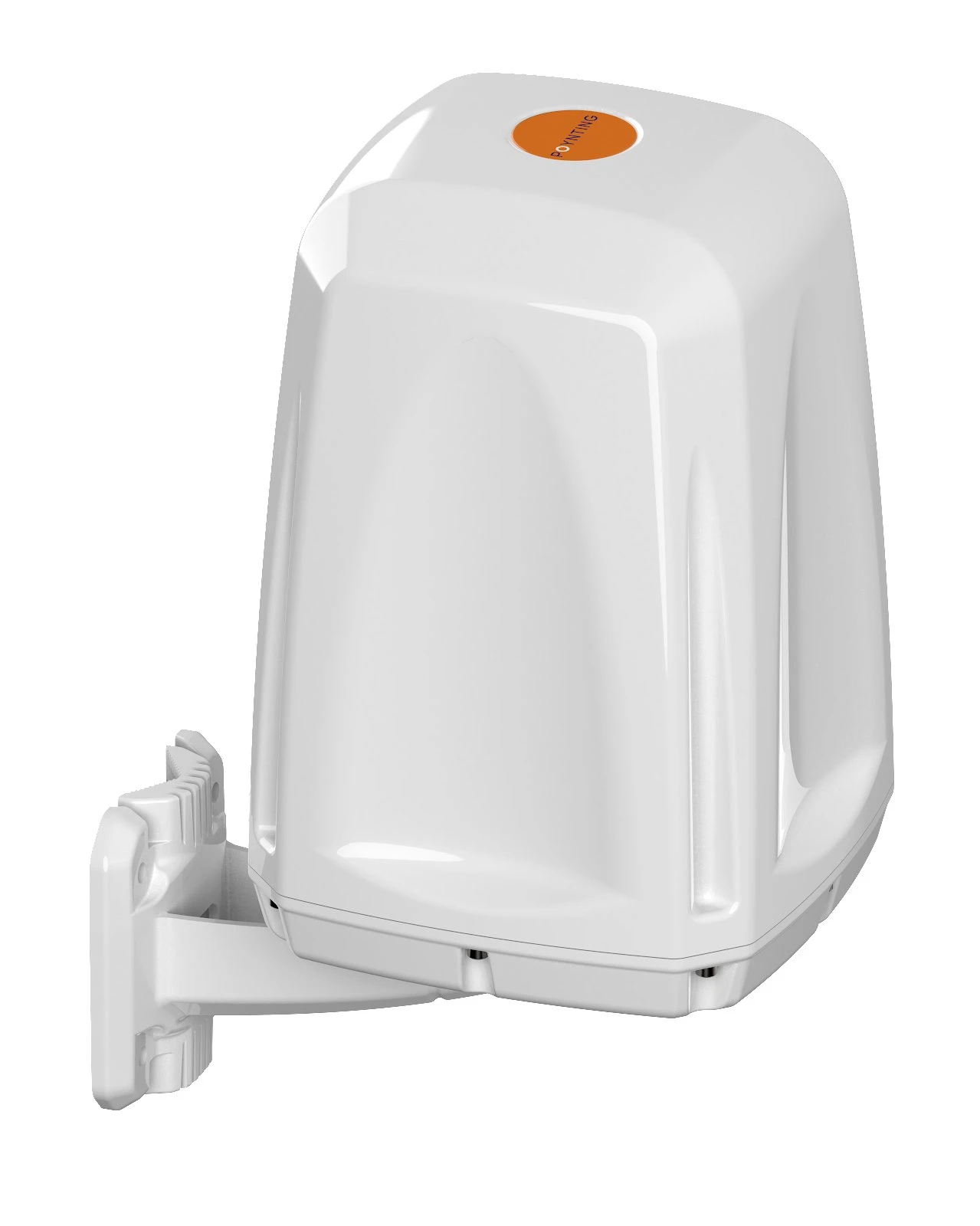

Poynting EPNT-4 V1-17 X-Polarised Omni 5G LTE WiFi CPE Antenna

The EPNT-4 offers a variety of antennas in one package, such as 4×4 5G/LTE MIMO, 2×2 Wi-Fi MIMO, as well as an additional GPS antenna. The cellular 5G/LTE antennas are wideband and operate from 617 to 4200 MHz, covering the major 5G/LTE bands with excellent gain across all frequencies, enhancing the 5G performance features, such as multi carrier aggregation (CA) for communication. While the Wi-Fi antennas offer dual band operation and cover the 2.4 GHz and 5 to 7.2 GHz Wi-Fi bands with a peak gain of 5 dBi. In addition, the antenna elements within the enclosure are cross-polarised, further improving the overall performance of the antenna. The combination of our cellular and Wi-Fi antennas, with a router will deliver a CPE with exceptional performance along with increased data throughput.

EPNT-4 V1-17 Key Highlights

• Wideband cellular coverage from 617 to 4200 MHz, with up to 4×4 MIMO/li>
• 2×2 MIMO dual-band Wi-Fi at 2.4 & 5 to 7.2 GHz/li>
• Cleverly designed decorrelated antennas give superior MIMO performance in both cellular and Wi-Fi bands/li>
• Includes high-performance GPS/GLONASS antenna/li>
• Precise mechanical design provides ruggedness, water, and dust resistance (IP67)/li>
• Wall, pole, and surface mountable

Applications

• Industrial factory automation, robotic machinery and other M2M systems telemetry
• Farming & agricultural automation such as M2M & IoT
• Broadband cellular to Wi-Fi distribution for marine / boats (inland and near coastal vessels)
• Outdoor antenna for Fixed Wireless Access (FWA)
• Consumer 5G/LTE internet connectivity
• Industrial and commercial 5G/LTE deployment

What’s in the Box?

• Poynting EPNT-4: A-EPNT-0004-V1-17
