Poynting EPNT-2 X-Polarised High Gain Uni-Directional 5G LTE Antenna

The EPNT-2 contains four cross-polarised cellular antennas, with two uni-directional antennas offering a peak gain of 11 dBi and two omni-directional antennas with a peak gain of 5 dBi. Making it ideal for 4×4 MIMO or dual 2×2 MIMO routers.

The EPNT-2 also includes two omni-directional dual-band Wi-Fi antennas that cover the 2.4 GHz and 5 to 6 GHz Wi-Fi bands for 2×2 MIMO. The combination of our uni-directional XPOL-2-5G antenna with a world class router delivers exceptional performance along with increased data throughput. The EPNT-2 enclosure was also designed to withstand adverse weather condition, making the antenna weatherproof and waterproof with an IP65 rating.

Suitable routers which fit the EPNT-12 enclosure include: Teltonika ,
Teltonika , Teltonika , Teltonika .

EPNT-2 Key Highlights

• Ultra-wideband coverage for 2G, 3G, 4G and 5G
• High gain directional antenna, with a peak gain of 11 dBi
• 2×2 MIMO High gain directional antennas
• Weatherproof and waterproof enclosure (IP65)

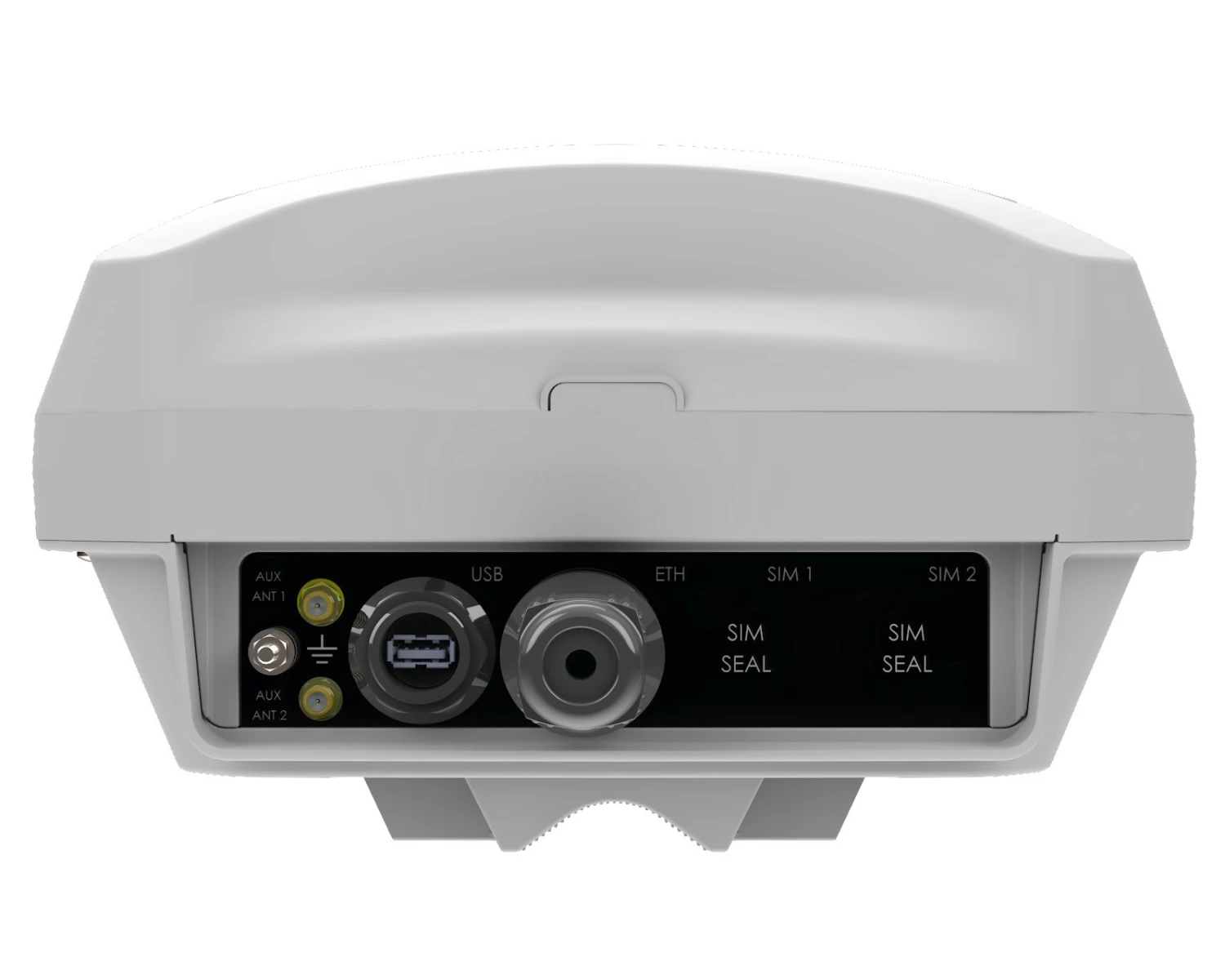

• 1 x Ethernet port
• Frequency Bands: 698 – 960 MHz | 1710 – 2700 MHz | 3400 – 3800 MHz; Wi-Fi frequency bands: 2400 – 2500 MHz | 5000 – 6000 MHz

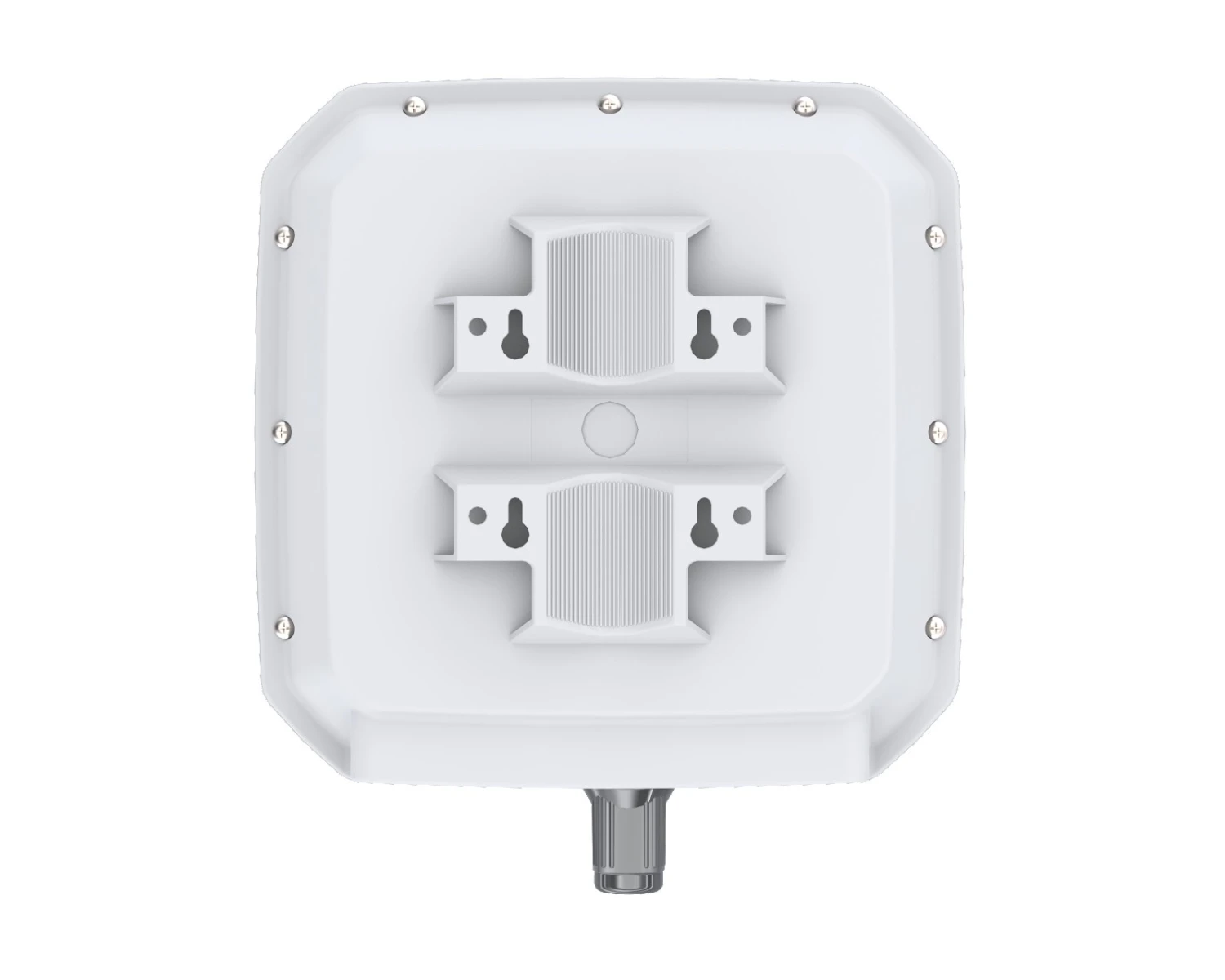

• Wall, pole, and window mountable

Applications

• Outdoor antenna for Fixed Wireless Access (FWA)
• Consumer LTE/G internet connectivity
• Industrial and commercial LTE/G deployment
• Urban and rural household reception enhancement
• Agricultural and farming LTE/G data distribution

What’s in the Box?

• A-EPNT-0002-V1-01
• Please note: the connectors are factory mounted to the antenna. Additional pigtails (not supplied) are required to connect the antenna to the router
