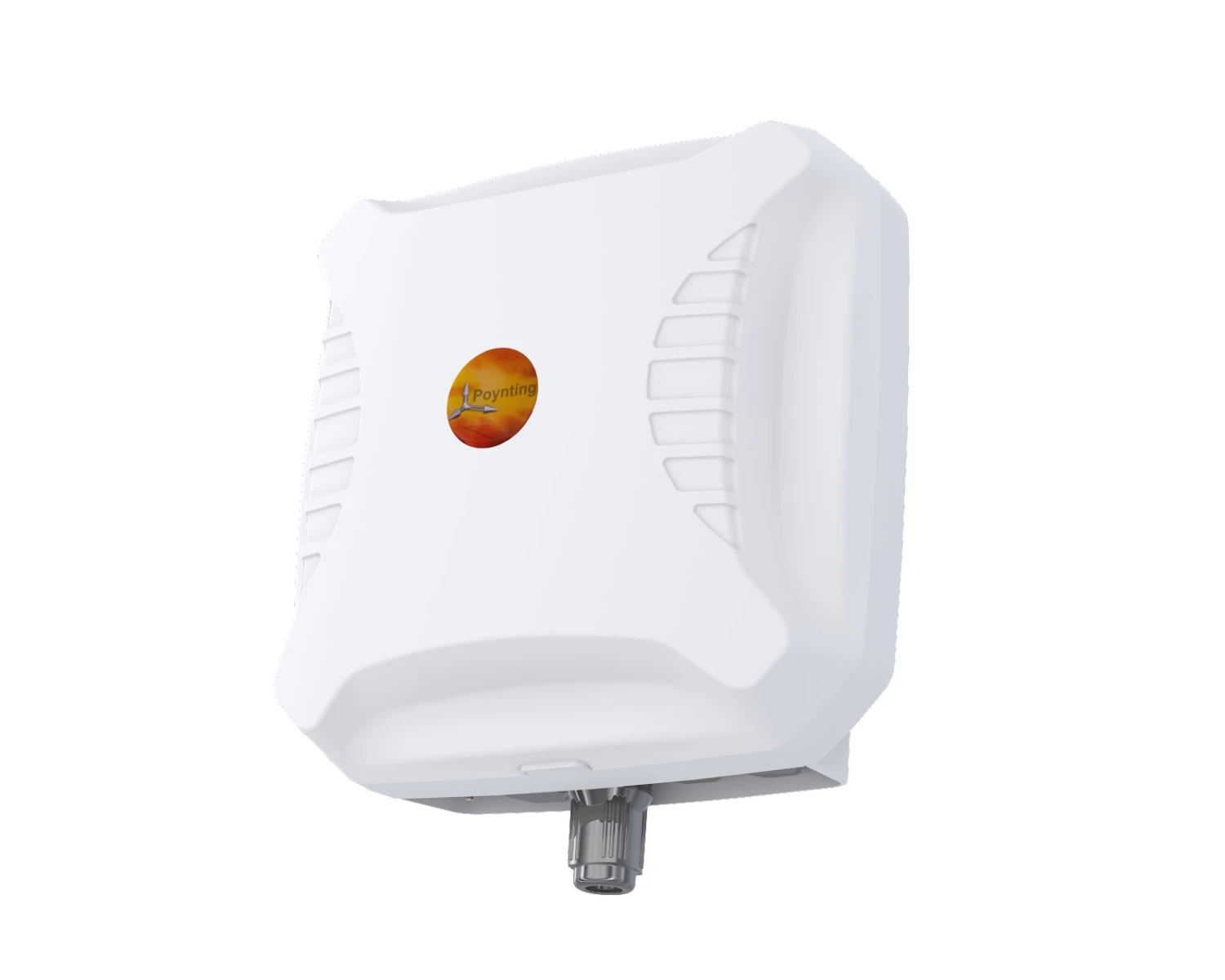

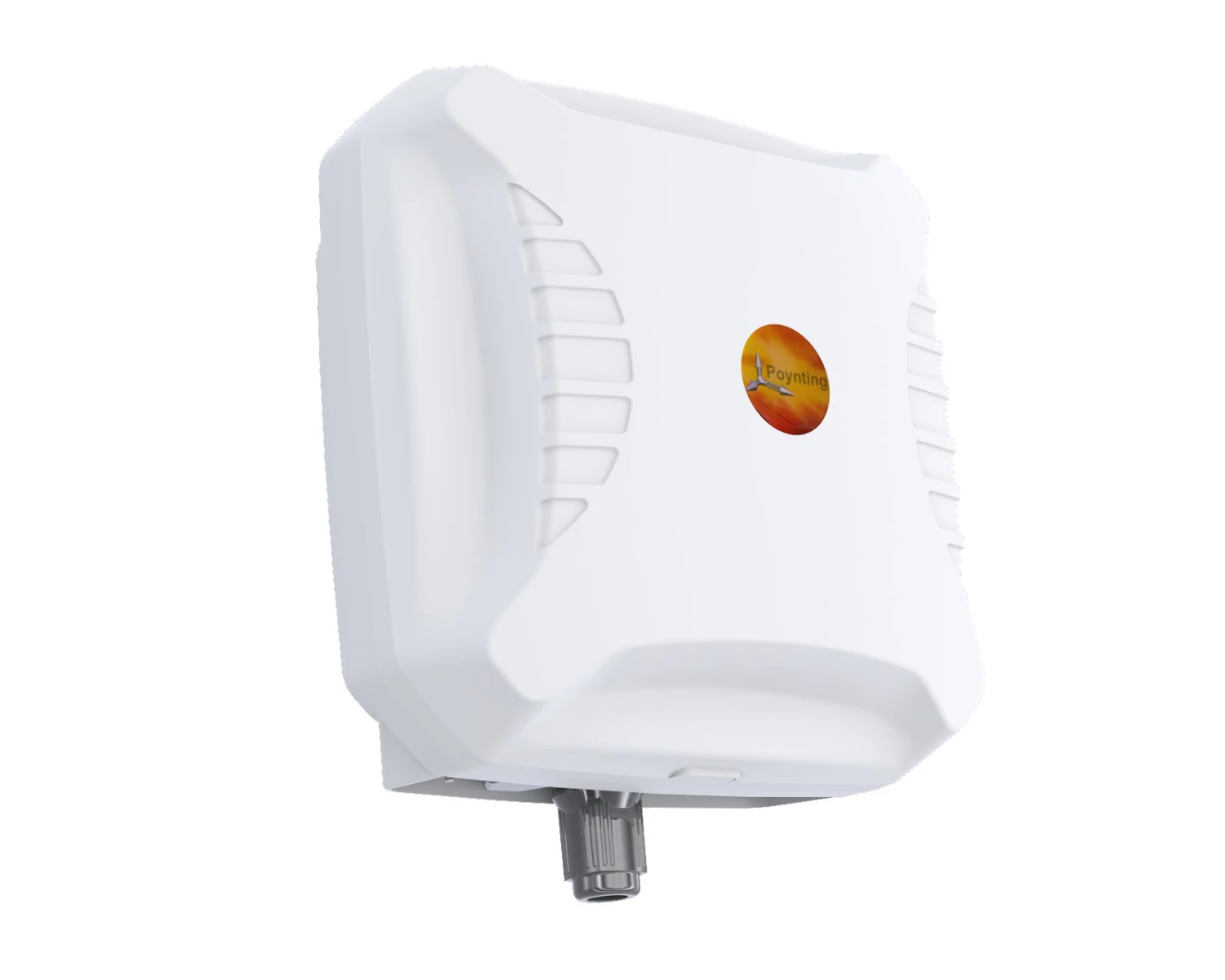

Poynting EPNT-1 X-Polarised Omni-Directional 5G LTE WiFi CPE Antenna

The ePoynt-1 enclosure can accommodate routers up to the size of 185 x 145 x 45 mm³. It combines our cross-polarised omnidirectional antennas for enhanced performance. This is ideal in built-up areas where there are several base stations close by, but where higher stability and throughput is required due to its enhanced MIMO configuration.

The EPNT-1 includes four cross-polarised antennas, making it ideal for 4×4 MIMO or dual 2×2 MIMO routers. The antennas offer wideband coverage from 617 to 3800 MHz, making it ideal for LTE & 5G implementation with a peak gain of 5 dBi.

The EPNT-1 also includes two omnidirectional dual-band Wi-Fi antennas that cover the 2.4 GHz and 5 to 6 GHz Wi-Fi bands for 2×2 MIMO. The EPNT-1 enclosure was also designed to withstand adverse weather condition, making the antenna weatherproof and waterproof with an IP65 rating.

Suitable routers which fit the EPNT-1 enclosure include: Teltonika ,
Teltonika , Teltonika , Teltonika .

EPNT-1 Key Highlights

• Ultra-wideband coverage for 2G, 3G, 4G and 5G
• Omni-directional antennas with peak gain of 5 dBi
• 4×4 MIMO for improved performance

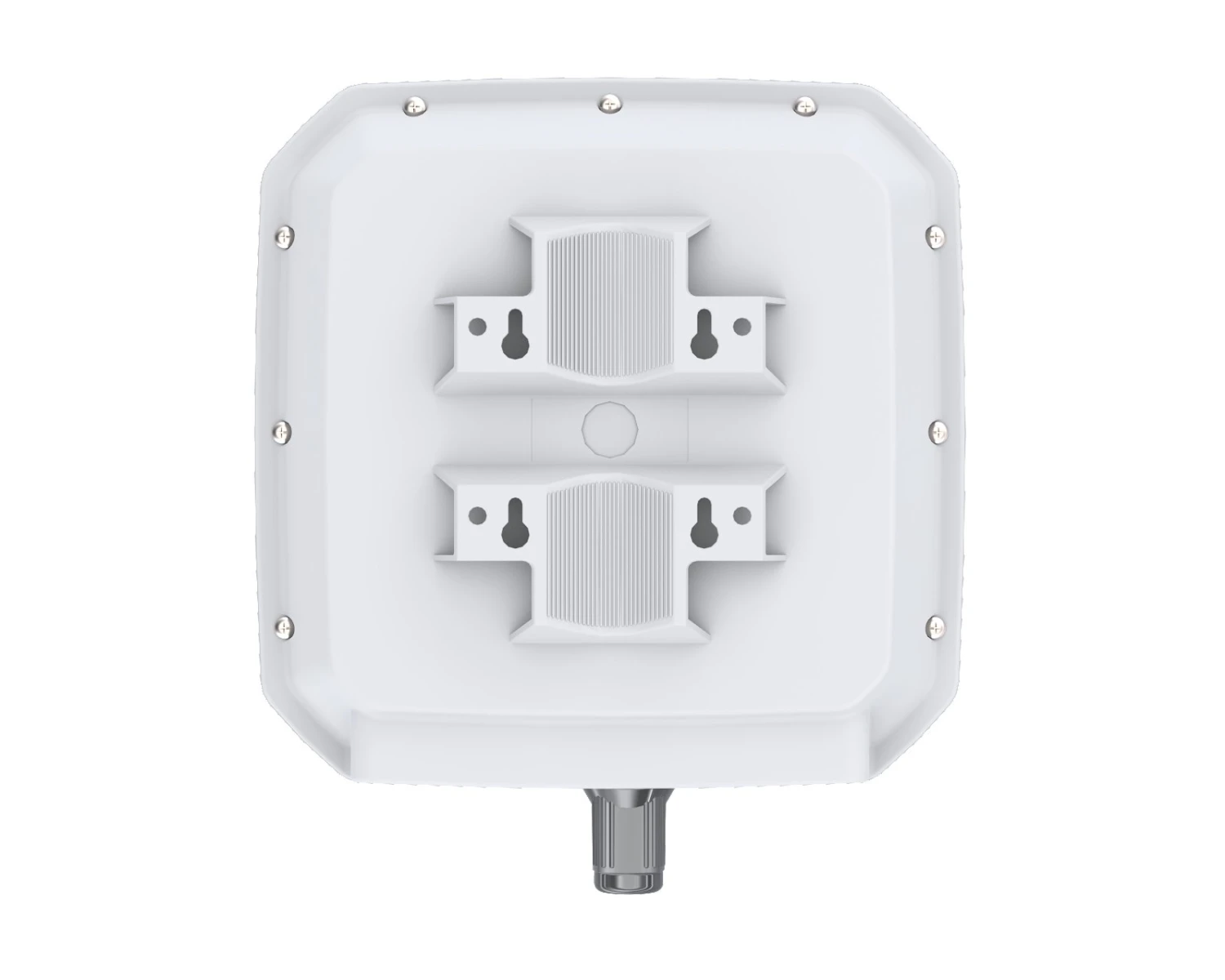

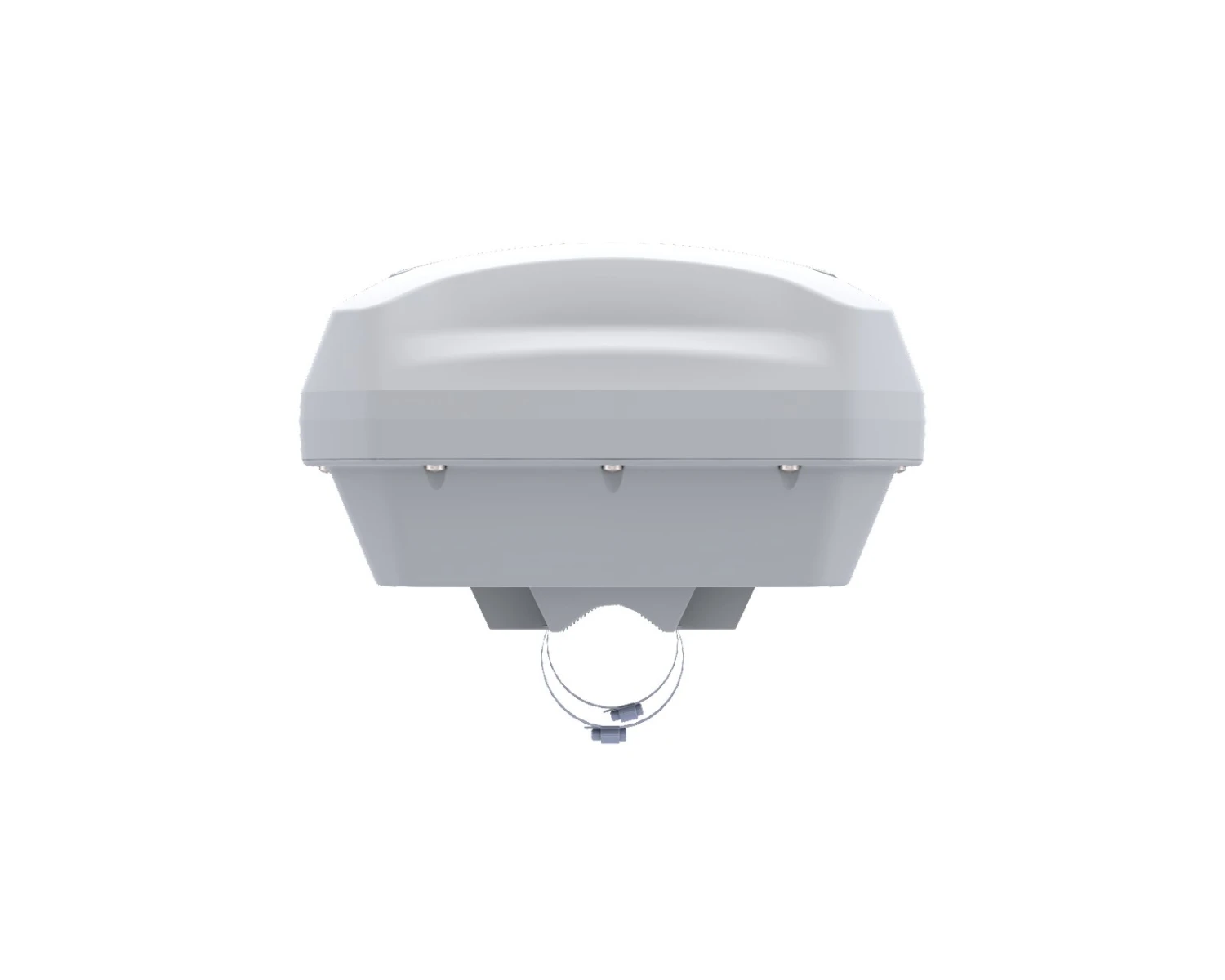

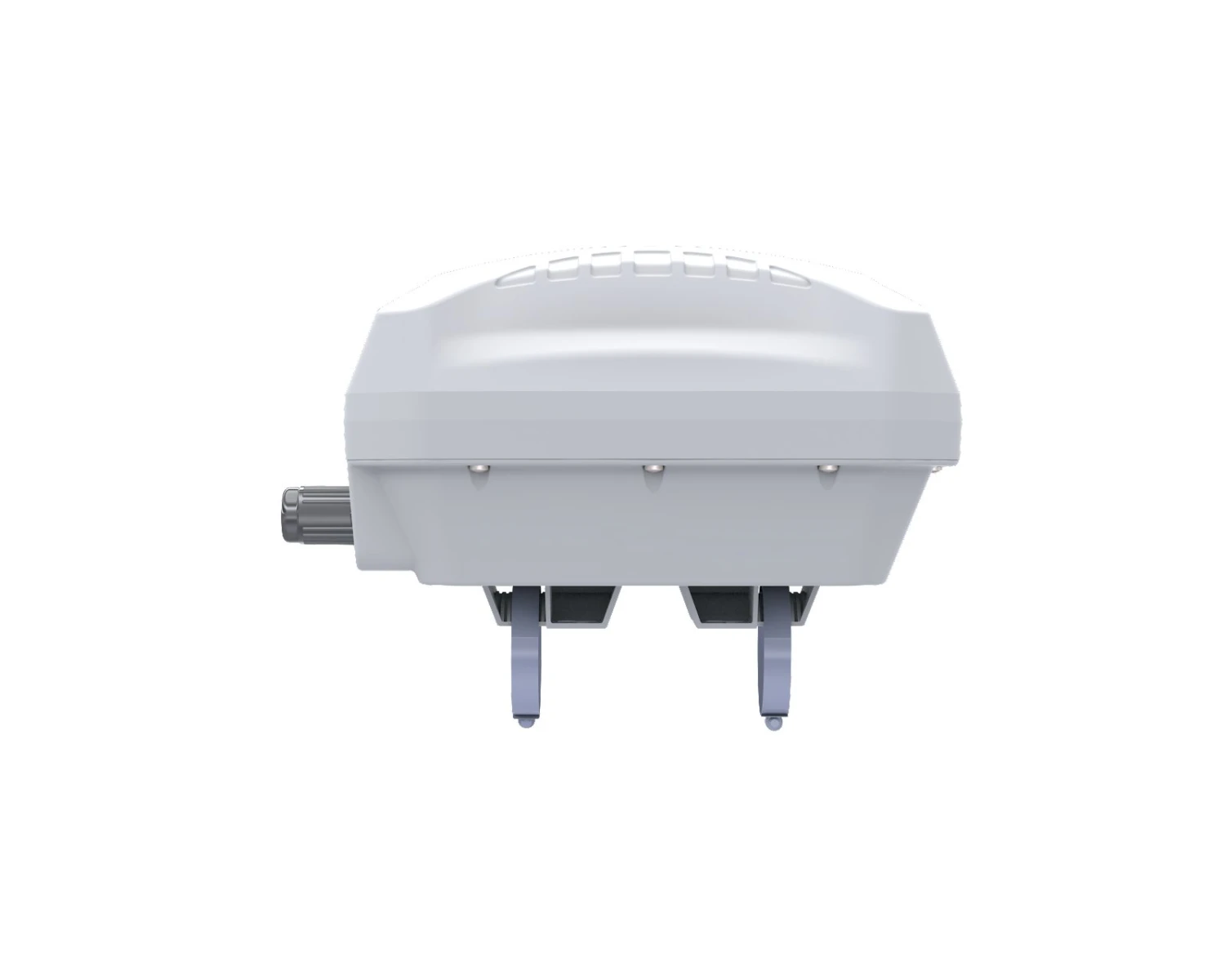

• Wall, pole, and window mountable
• Weatherproof and waterproof enclosure (IP65)
• 1 x External USB ports,1 x Ethernet port and 2 x External SMA connections for additional antennas
• Frequency bands: 617 – 960 MHz | 1427 – 1517 MHz | 1710 – 2700 MHz | 3400 – 3800 MHz; Wi-Fi frequency bands | 2400 – 2500 MHz | 5000 – 6000 MHz

Applications

• Outdoor antenna for Fixed Wireless Access (FWA)
• Consumer 5G/LTE internet connectivity
• Industrial and commercial 5G/LTE deployment
• Urban and rural household reception enhancement
• Smart environmental, water systems for M2M & IoT
• Oil & Gas communication systems

What’s in the Box?

• Poynting A-EPNT-0001-V1-01
• Please note: the connectors are factory mounted to the antenna. Additional pigtails (not supplied) are required to connect the antenna to the router
