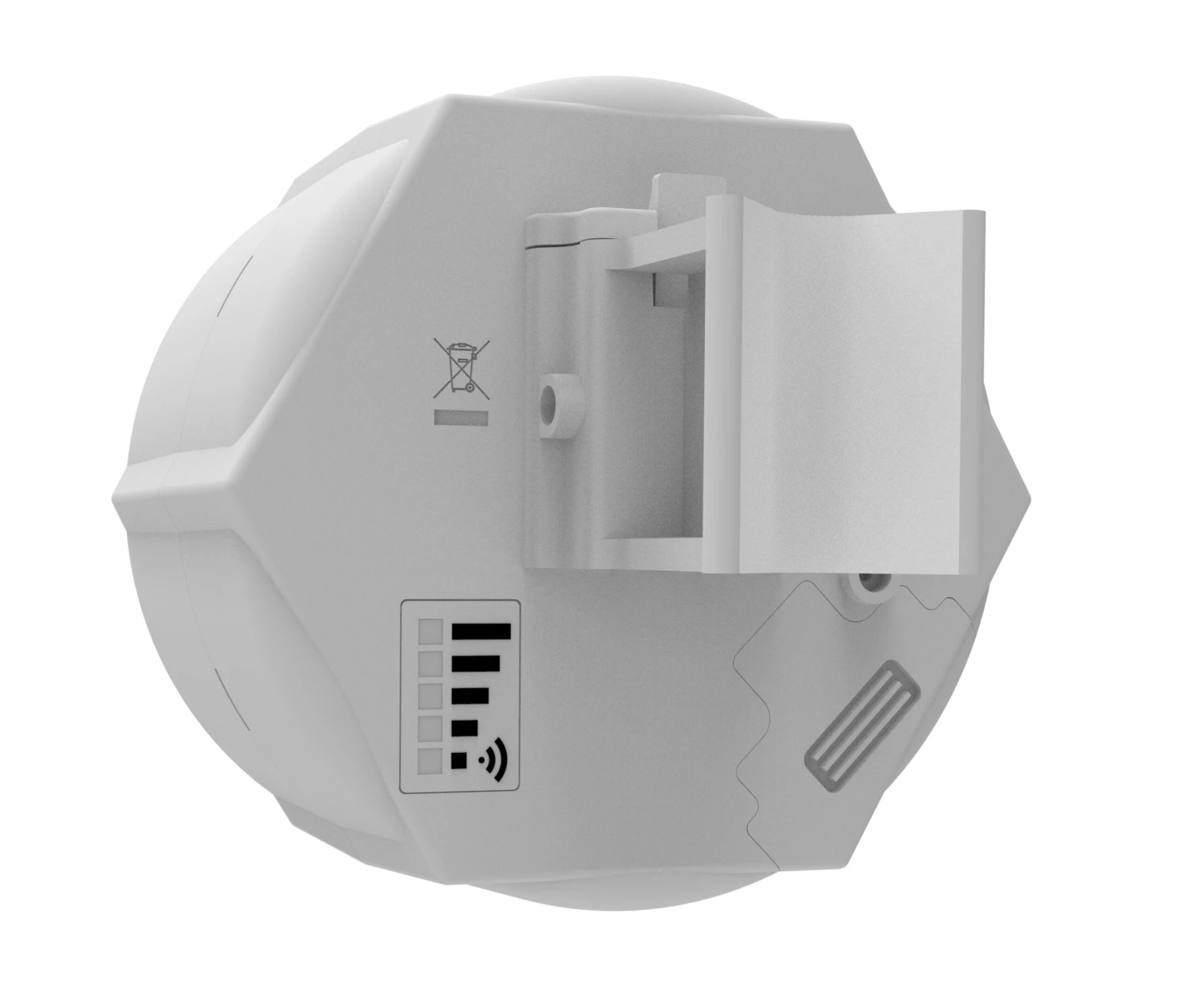

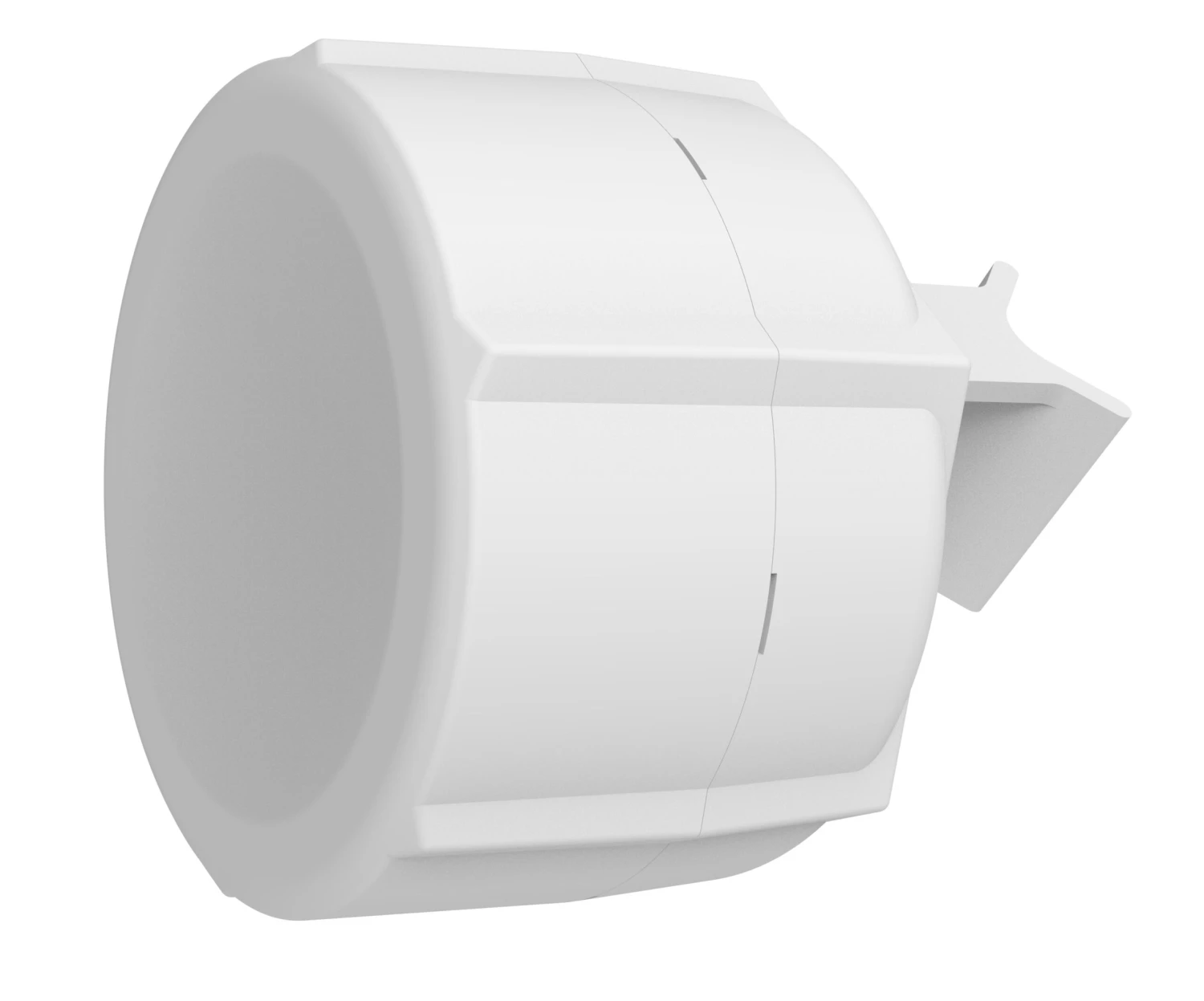

MikroTik RouterBoard CAT6 LTE Modem – SXT LTE6 Kit RBSXTR&R11E-LTE6

The SXT LTE6 features a CAT6 LTE modem, allowing much higher speeds utilising mobile carrier aggregation. Carrier aggregation means the SXT can use multiple mobile bands at the same time. This also provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.

RBSXTR&R11e-LTE6 can achieve speeds of up to 300 Mbps downlink and 50 Mbps uplink compared to a maximum of 150 Mbps downlink, 50 Mbps uplink on previous CAT4 devices.

Mikrotik’s RBSXTR&R11e-LTE6 is equipped with two Ethernet ports. The secondary port features PoE-out functionality and can be used to power up other PoE compatible device. The unit also features two Micro SIM slots for fail-over. Shipped with a 24V UK power supply, it can support a wide voltage range from 18 to 57V and is 802.3af/at compliant.

MikroTik RBSXTR&R11E-LTE6 Key Highlights

• CPU: QCA9531 650 MHz
• Size of RAM: 64 MB
• Storage: 16 MB flash
• 2 x 10/100 Ethernet ports
• LTE antenna gain: 9 dBi
• Antenna beam width: 60°
• LTE category: 6 (300 Mbps downlink, 50 Mbps uplink)
• 3G category: R7 (21 Mbps downlinks, 5.76 Mbps uplink); R8 (42.2 Mbps downlink, 5.76 Mbps uplink)
• 2G category: Class12
• 2 x Micro SIM slots
• PoE in: Yes, on Ether1
• PoE out: Yes, on Ether2, max out per port output (input < 30 V): 600 mA, max out per port output (input > 30 V): 400 mA
• Supported input voltage: 18 – 57 V (Passive PoE, 802.3af/at on Ether1)
• Max power consumption without attachments: 7 W
• Max power consumption: 21 W

What’s in the Box?

• RBSXTR&R11E-LTE6
• PoE injector
• Pole mounting bracket
• Jubilee clip
• Power adapter
