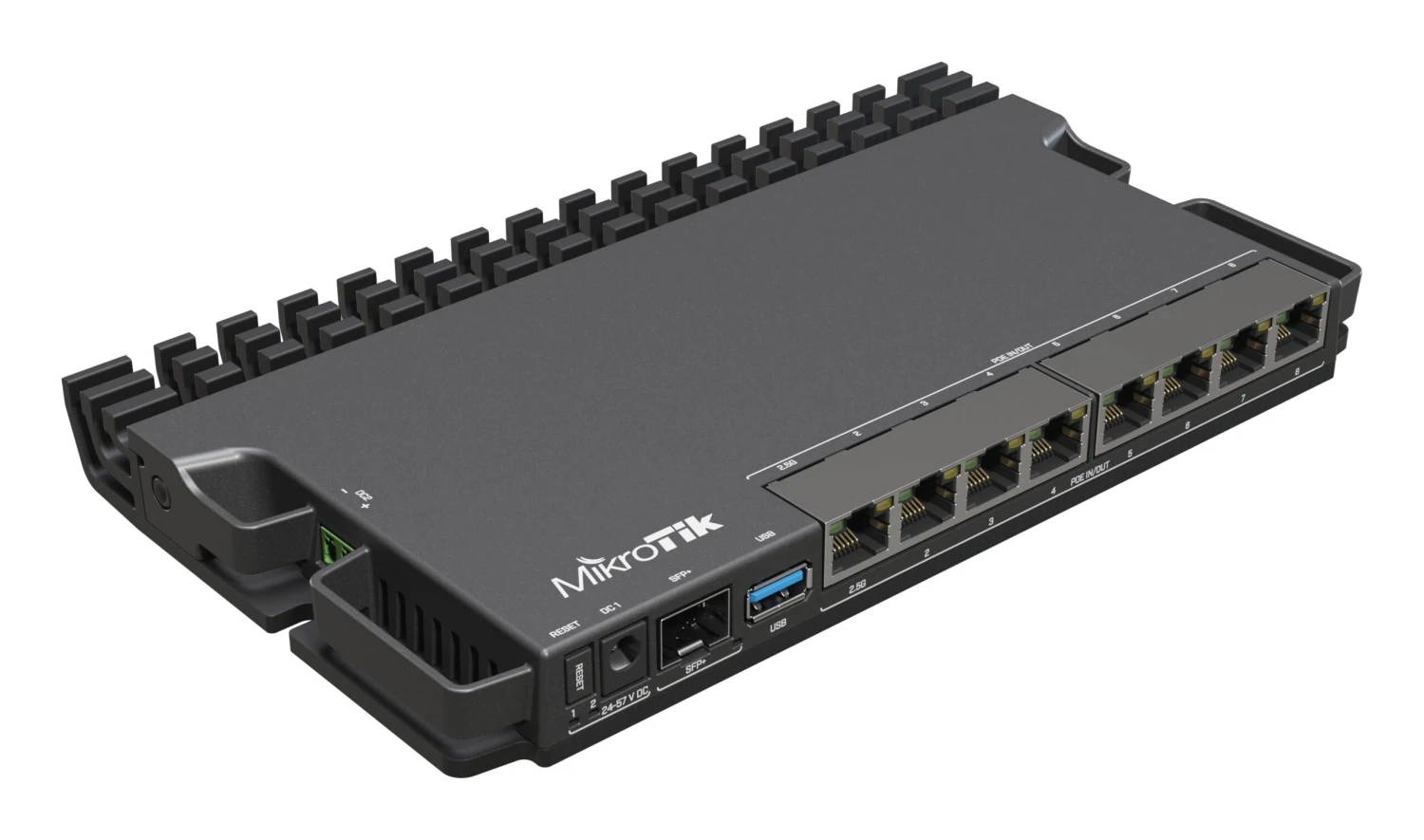

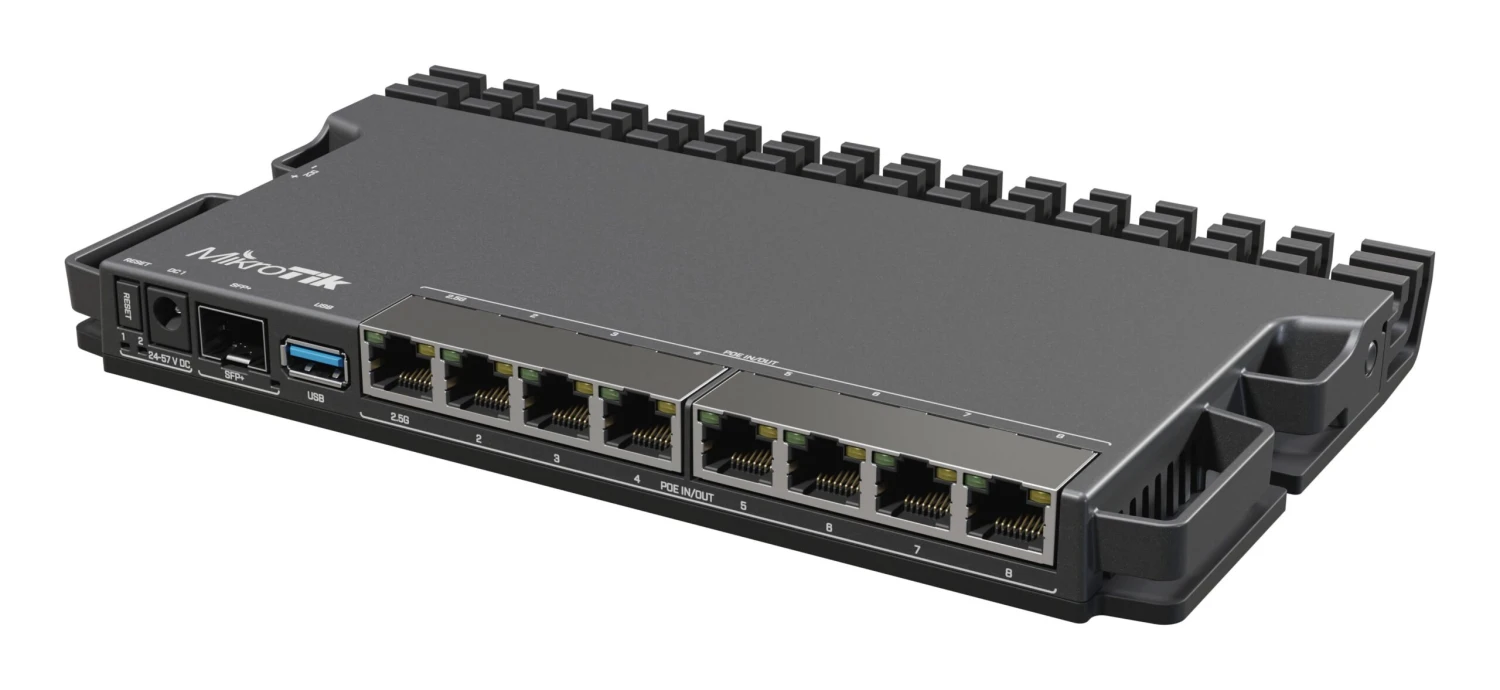

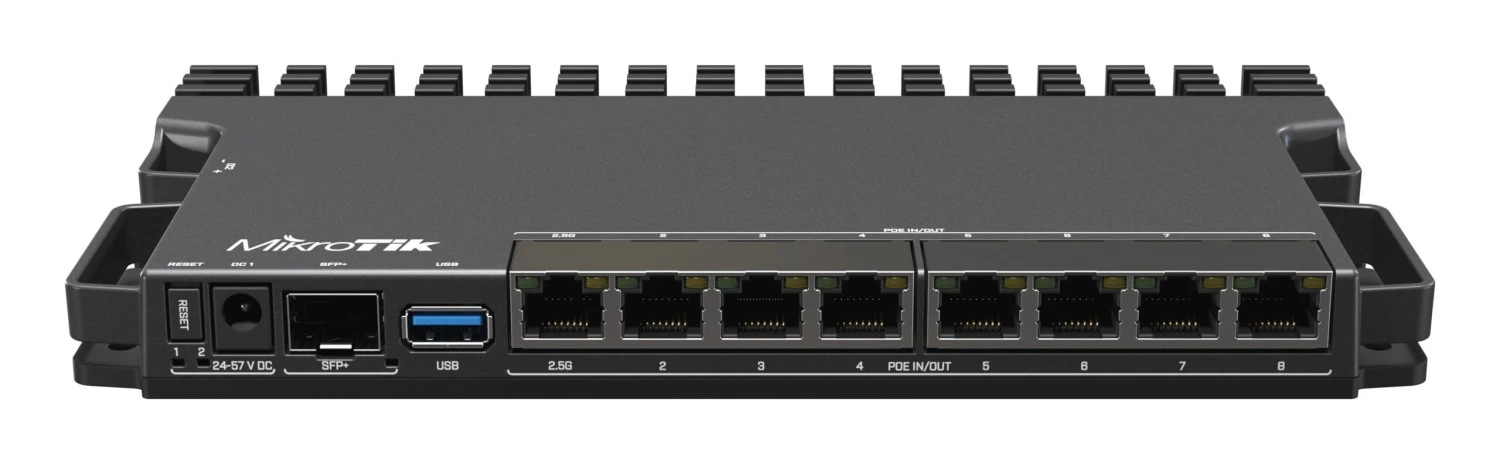

MikroTik RB5009 Heavy-Duty 8-Port PoE Router

The RB5009UPr+S+IN supports a wide voltage range of 24 – 57 V. Mixed voltages are not supported – if you’re using PoE-out to power other devices, the unit will choose the highest voltage (DC jack or the 2-pin connector) to power those.

Each PoE-out port on the RB5009 can supply up to 25W of power. All the ports combined are limited to 130W, which should be adequate for most setups. You can specify maximum available power from your power sources manually, if necessary.

The RB5009UPr+S+INs tiny form-factor gives users a number of ways to install and mount on location: from confined spaces to huge corporate server rooms. They are so compact that you can mount 4 of these routers in a single 1U rackmount space.

MikroTik RB5009 Heavy-Duty 8-Port PoE Router Key Highlights

• 7 x 10/100/1000 Ethernet ports
• 1 x SFP+ ports
• 1 x USB 3.0 type A port
• 3 x DC inputs
• DC jack input Voltage: 24-57 V
• Max Power consumption: 15 W
• Max power consumption: 150 W
• PoE in: 802.3af/at
• PoE in input Voltage: 24-57 V
• Architecture: ARM 64bit
• CPU: 88F7040
• CPU core count: 4
• CPU nominal frequency: 350-1400 (auto) MHz
• Size of RAM: 1 GB
• Storage size: 1 GB
• License Level 5
• Operating System: RouterOS

What’s in the Box?

• MikroTik RB5009UPr+S+IN
• Power adapter
• Connector plug
• Screw kit
