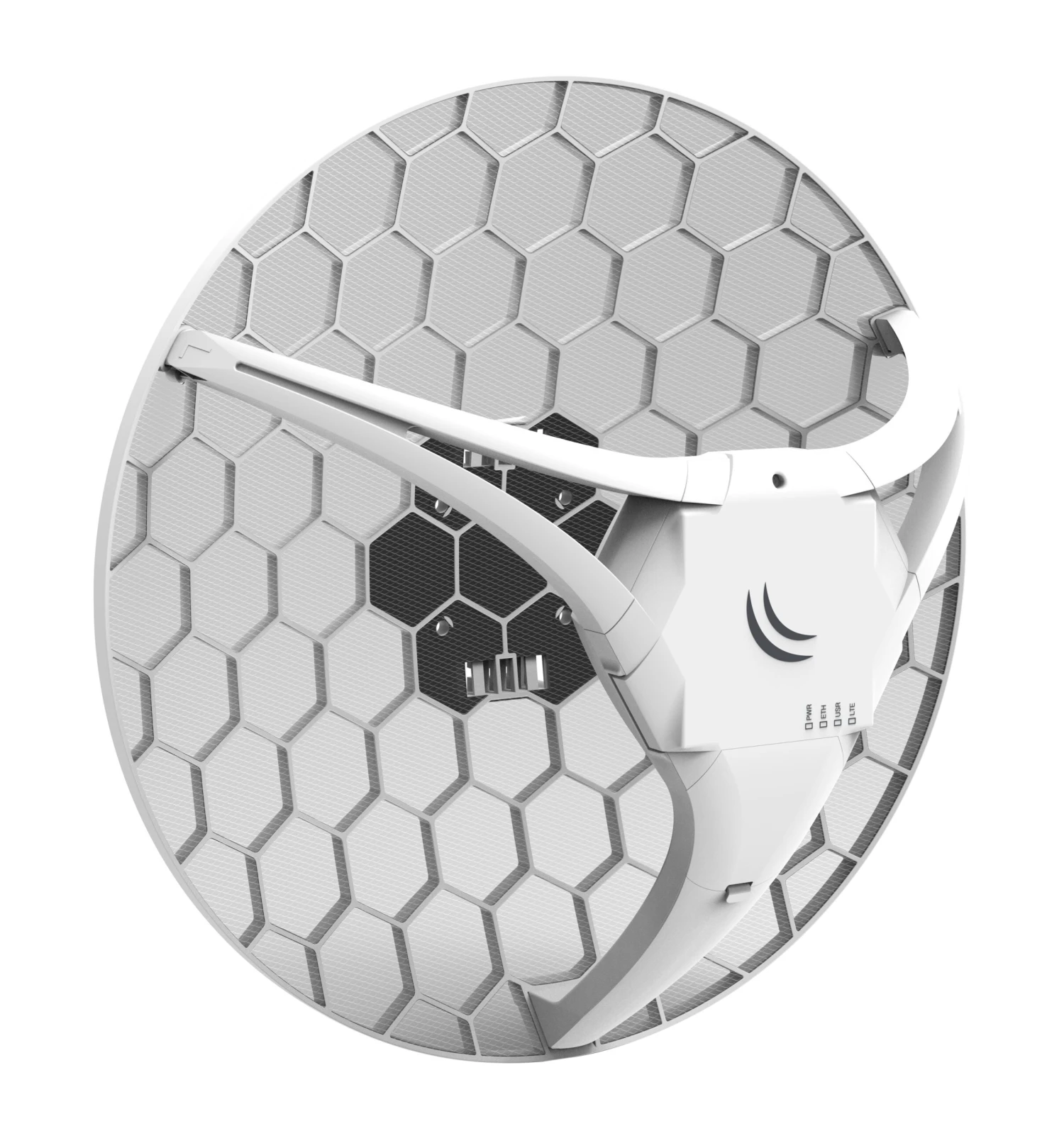

MikroTik LHG LTE6 Cat6 4G Outdoor Long Range Router (RBLHGR+R11e-LTE)

The new LHG LTE6 kit features a CAT6 LTE modem, which enables carrier aggregation and allows the device to use multiple bands at the same time. This can be an advantage when there are many LTE users in an area. It provides better responsiveness in a crowded environment and higher efficiency for weaker signal situations in the countryside.

The LHG LTE kit is equipped with one Ethernet port, has a built in high quality Category 6 LTE modem for speeds of up to 300 Mbit/s downlink and 50 Mbit/s uplink.

RBLHGR&R11e-LTE includes an LTE modem that supports International LTE bands 1, 2, 3, 5, 7, 8, 12, 17, 20, 25, 26, 38, 39, 40 and 41n.

This product uses a standard Micro Sim.

RBLHGR&R11e-LTE6 Key Highlights

• Architecture: MIPSBE
• CPU: QCA9531
• CPU core count: 1
• CPU nominal frequency: 650 MHz
• Dimensions: 391 x 391 x 227 mm
• License level: 3
• Operating System: RouterOS
• Size of RAM: 64 MB
• Storage size: 16 MB
• Storage type: FLASH
• PoE in: 802.3af/at
• PoE in input Voltage: 12-57 V
• Number of DC inputs: 1 (PoE-IN)
• Max power consumption: 6 W
• 2G Category: Class12
• 3G Category: R7 (21Mbps Downlinks, 5.76Mbps Uplink)
• LTE Category: 6 (300Mbit/s Downlink, 50Mbit/s Uplink)
• LTE FDD bands: 1 (2100MHz) / 2 (1900MHz) / 3 (1800MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 5 (850MHz) / 12 (700MHz) / 17 (700MHz) / 25 (1900MHz) / 26 (850MHz)
• LTE TDD bands: 38 (2600MHz) / 39 (1900MHz) / 40 (2300MHz)
• 10/100 Ethernet ports: 1
• Number of SIM slots: 1 Modem (Mini SIM)
• MiniPCI-e slots: 1

What’s in the Box?

• MikroTik LHG LTE6 kit
• 2 x Jubilee Clip (metal ring)
• PoE injector
• K-LHG kit
• Power adapter
