MikroTik ATL LTE Cat18 Base Station Kit (ATLGM+EG18-EA)

The MikroTik ATL LTE18 Kit features a 4×4 MIMO support, giving you more antennas to work with – offering higher speeds and better coverage. You can expect fantastic performance in busy urban locations with these base stations, as well as optimal performance in rural areas, due to its wider frequency band range for lower band antennas.

The ATL LTE18 Kit has 4 high-gain middle band (1.7 – 2.7 GHz) and 2 high-gain low band antennas (700 MHz – 1 GHz, LTE Band 28) – this gives users access to the 700 and 800 MHz LTE band, which is one of the most popular frequency options in the world and used by numerous mobile operators everywhere. This lower frequency type of radio wave also travels over longer distances, ensuring your coverage reaches far and wide.

The ATLGM+EG18-EA is suited for harsh outdoor environments, the unique design prevents snow and water from collecting and freezing up. ATL is an excellent tool for fast and stable connections in cold, snowy locations, without having to clean or shelter the antenna all the time.

ATLGM+EG18-EA Key Highlights

• 1 x 1G Ethernet port
• CPU: Dual-core 88F3720 1.2 GHz
• CPU architecture: ARM 64bit
• RAM: 256MB
• Storage: 16MB Flash
• LTE modem: R11mL-EG18-EA
• LTE Category: 18 (1.2Gbps Downlink, 150Mbps Uplink)
• LTE bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20
  (800MHz) / 28 (700MHz) / 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
• 3G Category: R8 (42.2Mbps Downlink, 11.2Mbps Uplink)
• 3G Bands: 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
• Operating system: RouterOS, License level 3

What’s in the Box?

• MikroTik ATLGM&EG18-EA Kit
• 24V 0.8A UK Power Adapter
• Gigabit PoE injector

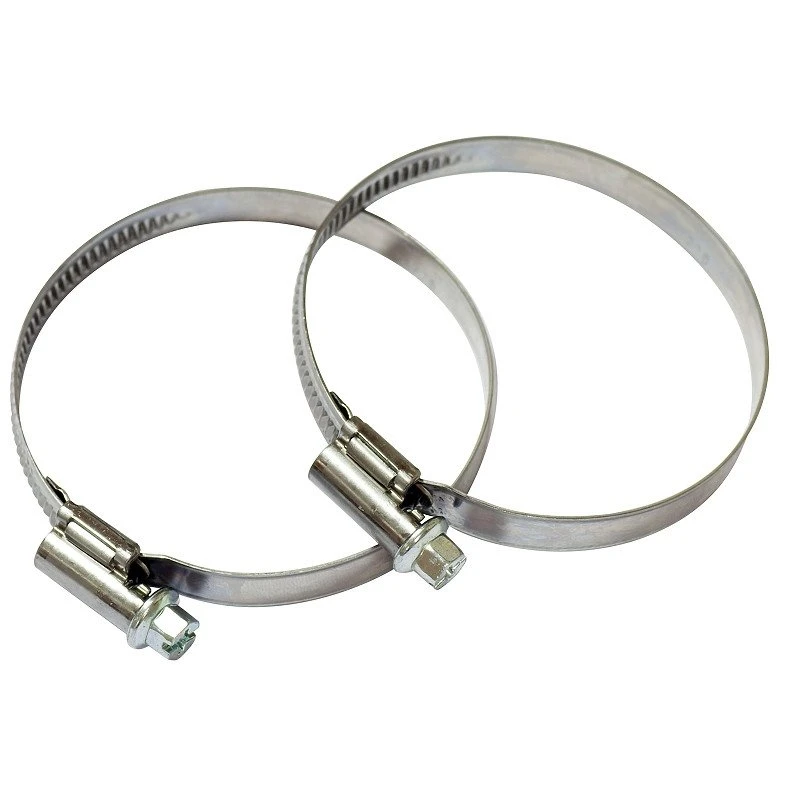

• Hose clamp
