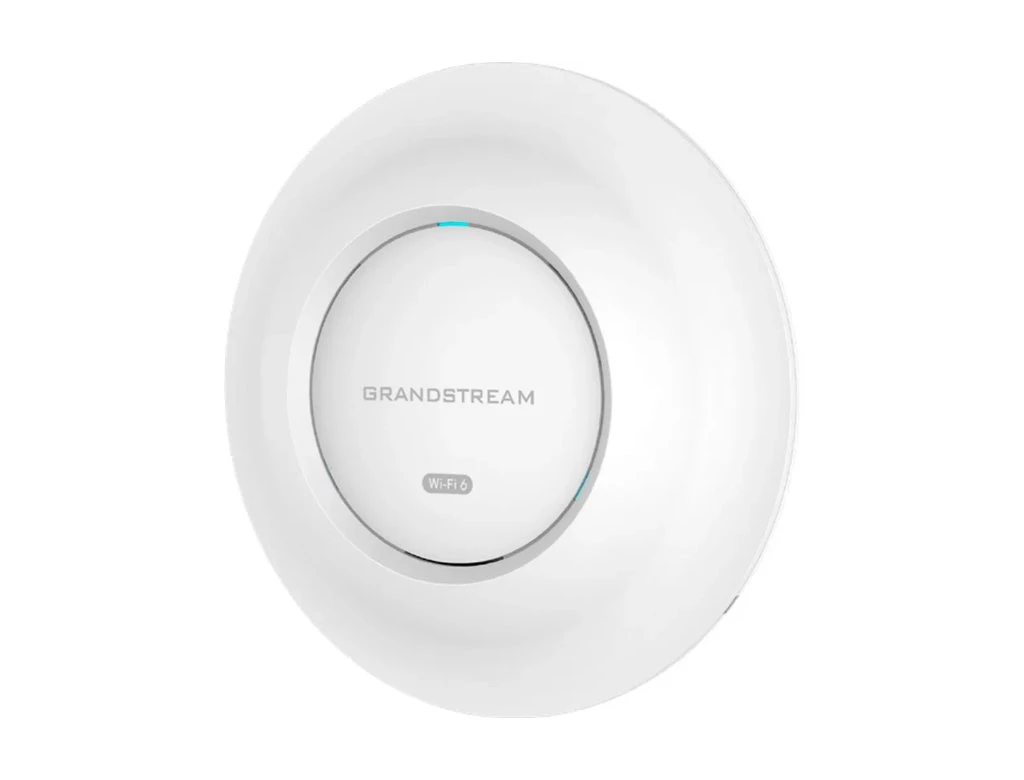

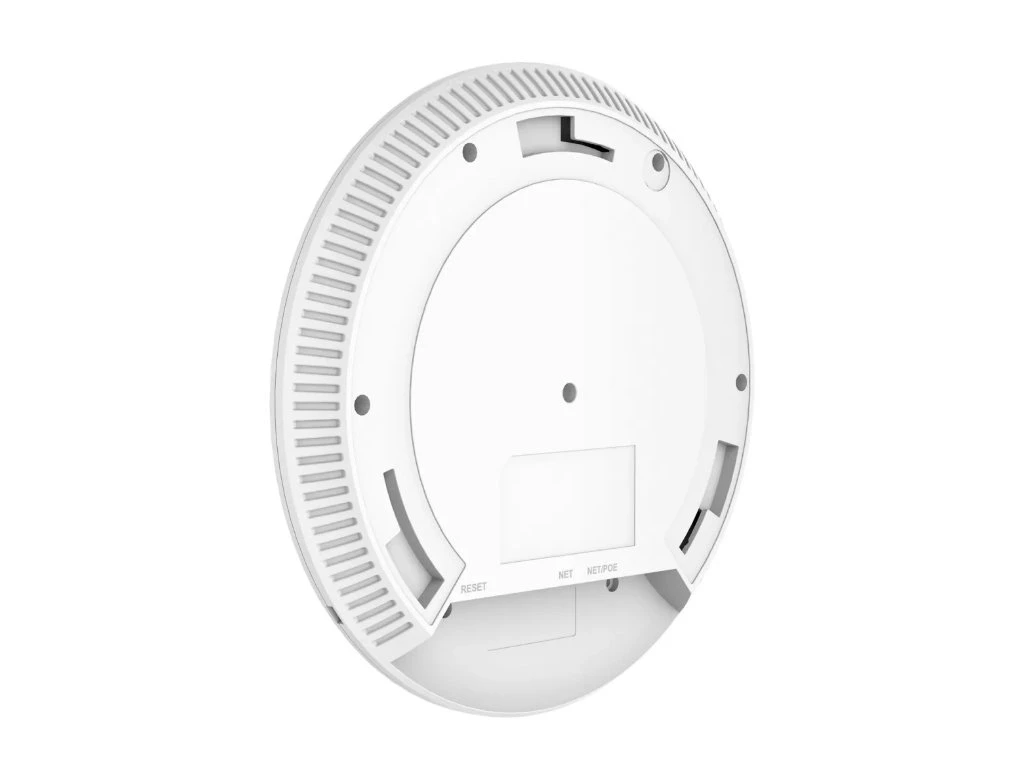

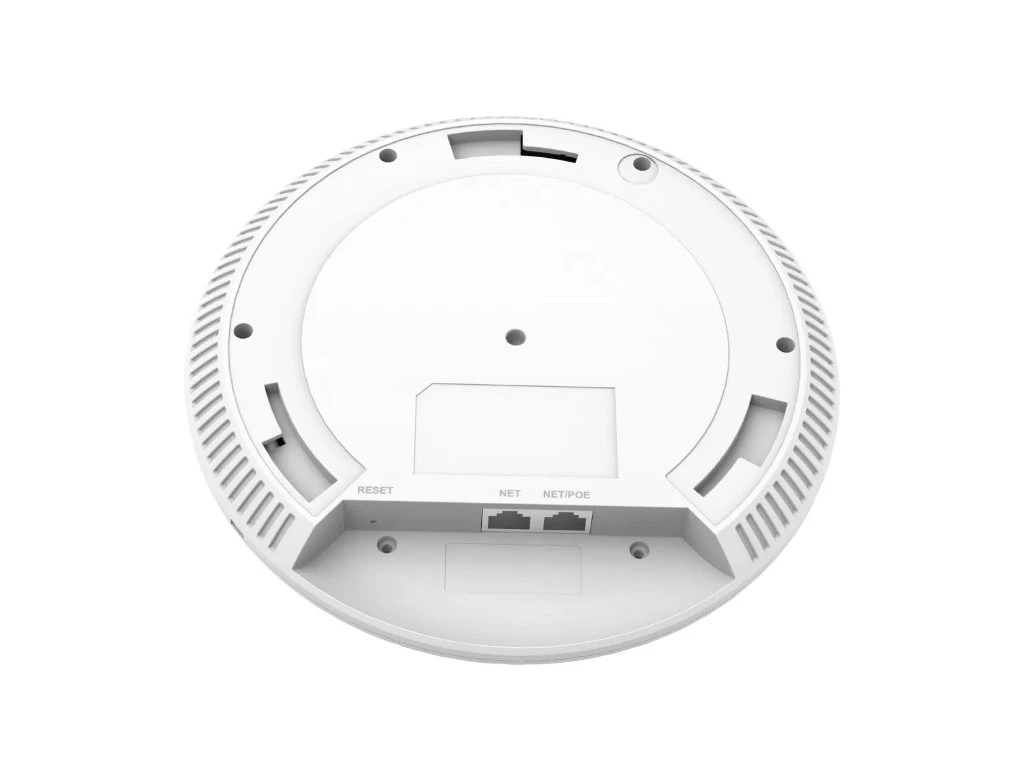

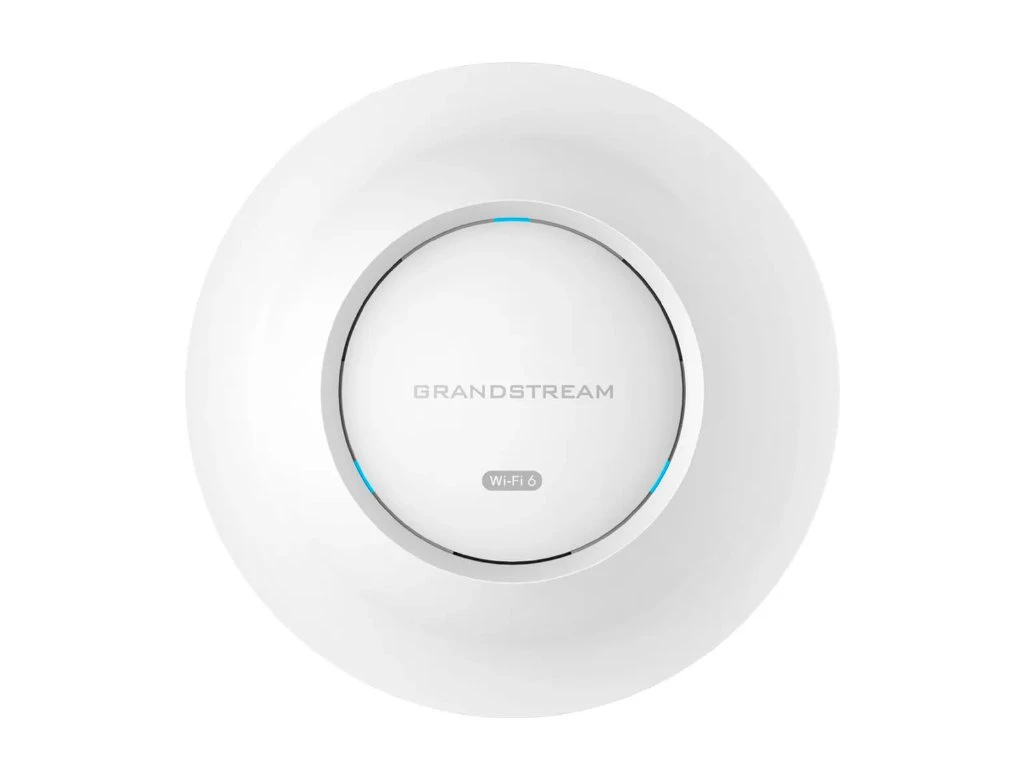

Grandstream GWN7664 4×4:4 Wi-Fi 6 Indoor Access Point

The GWN7664 offers dual-band 4×4:4 MU-MIMO with DL/UL OFDMA technology and a sophisticated internal antenna design for stronger anti-interference, more stable connection, maximum network throughput and expanded Wi-Fi coverage range.

The GWN7664 is supported by GWN.Cloud and GWN Manager, Grandstream’s cloud and on-premise Wi-Fi management platform that and makes managing your network or several networks across multiple locations easier than ever before. It also uses a controller-less network management architecture in which the controller is embedded within the product’s web user interface for easy administration of locally deployed Wi-Fi Aps.

The GWN7664 is the ideal Wi-Fi AP for voice-over-Wi-Fi deployments and offers a seamless connection with Grandstream’s Wi-Fi capable IP phones. With support for advanced QoS, low latency real-time applications, mesh networks, captive portals, 512 concurrent clients and dual Gigabit network ports with PoE/PoE+, the GWN7664 is an ideal Wi-Fi access point for business-grade wireless network deployments with mediumto-high user density.

Grandstream GWN7664 WiFi 6 AP Key Highlights

• Dual-band 4×4:4 MUMIMO with DL/UL OFDMA technology
• Wi-Fi Standards: IEEE 802.11 a/b/g/n/ac/ax
• Up to 175-meter coverage range
• Support 512 concurrent Wi-Fi client devices
• 8 x individual internal antennas, 4 per band: 2.4GHz, gain 3dBi; 5 GHz, gain 4dBi
• 3.55Gbps aggregate wireless throughput, 3.5Gbps aggregate wired throughout
• Advanced QoS to ensure real-time performance of low-latency applications
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Self power adaptation upon auto detection of PoE or PoE+
• Embedded controller manages up to 50 local GWN APs; GWN.Cloud offers unlimited AP management, & GWN Manager offers on-premise software AP management

What’s in the Box?

• Grandstream GWN7664 WiFi 6 Access Point
• Mounting Kits
• Quick Start Guide
