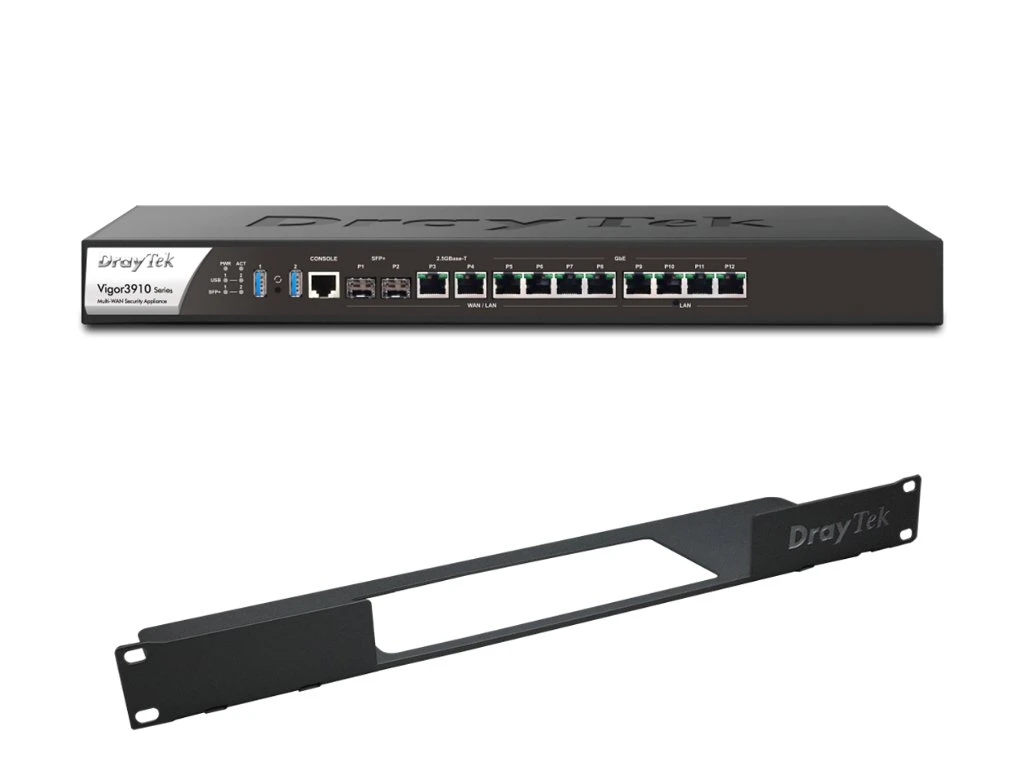

DrayTek Vigor 3910 Multi-WAN Gateway Router With Rack Mount (RM1)

The DrayTek Vigor 3910 is a powerful Internet Gateway Router capable of dealing with large, complex networks. Providing applications such as Remote Access, Firewalling, Load-Balancing and Failover, the V3910 can help cope with bandwidth intensive tasks of SMEs. With 12 Ports, the V3910-K gives the flexibility to switch between LAN or WAN Ports to meet the requirements of your networking needs.

The Vigor 3910 Router is a 10Gb Enterprise Level High Performance VPN Concentrator, with a powerful 1.2GHz Quad-Processor that helps it handle the demanding throughput of large and complex networks. This multi-WAN Router has 4 dedicated LAN Ports, 8 of with are switchable between LAN or WAN, allowing up to 11 WAN Ports, or the provision of Load-balancing of up to 8 WAN Connections.

The Vigor 3910 features a flexible Local Network Interface giving you the control to manage multiple Networks. Up to 50 separate Local Networks (subnets) can be created and managed. Each Network can contain anywhere from 253 to 1022 devices and Web Content Filtering helps you to control each Network by placing restrictions and blocks on any websites, applications and downloads of certain file types, to protect you from potentially harmful content. With Inter LAN routing you can ensure that specific Networks can communicate with each other whilst keeping other Subnets isolated and control the local traffic.

The robust Firewall can monitor and control access, filtering the traffic to your Network. VPN Trunking increases bandwidth and provides Failover (back-up). Control throughput with Bandwidth Limit, by setting speed limits for certain networks or groups of subnets.

Quality of Service gives you the ability to prioritise any latency-sensitive applications within your network. You can use 4 separate queues to give priority to servers & PCs with services such as VoIP. Auto Voice VLAN will allow the router to automatically prioritise your VoIP calls as they pass through the router without additional configuration.

Compared to its predecessor The DrayTek Vigor , the V3910 has many more additional features that can enhance your network architecture, including 2 extra WAN ports, 1 extra SFP interface, increased Firewall mB/s performance and increased NAT sessions. It also provides yous access to the DrayTek Hotspot Web Portal.

By using a pair of the V3910 Routers, there is scope for High Availability by providing a hardware backup solution, where if the primary unit happens to fail, the secondary one will take over. They can also be connected to any one of the switches from DrayTek VigorSwitch range, including the VigorSwitch

DrayTek V3910 Router with Rack Mount Key Highlights

• 12 Ports: 4 Fixed LAN, 8 switchable LAN or WAN ports
• 2 x Independant USB 3.0 ports 1x RJ-45 (RS-232)
• 1 x RJ-45 Console Port
• 9 Gb/s NAT Throughput
• Up to 150,000 NAT Sessions
• 3 Gb/s VPN Performance
• Up to 500 Concurrent VPN Tunnels
• Up to 50 LAN Subnets
• Up to 200 Concurrent SSL VPN
• Comprehensive Firewall – IPv4 / IPv6
• WAN Load Balancing & WAN Failover
• Web Content Filtering
• Quality of Service Assurance
• Bandwidth Limit
• High Availability
• VPN Truncking Support
• 1 x Factory Reset Button
• Optional VigorCare Available – Category 4 (

What’s in the Box?

• 1 x DrayTek Vigor 3910-K: Rack mounting kit; Instruction Manual
• 1 x RM1 Rack Mounting Bracket:
