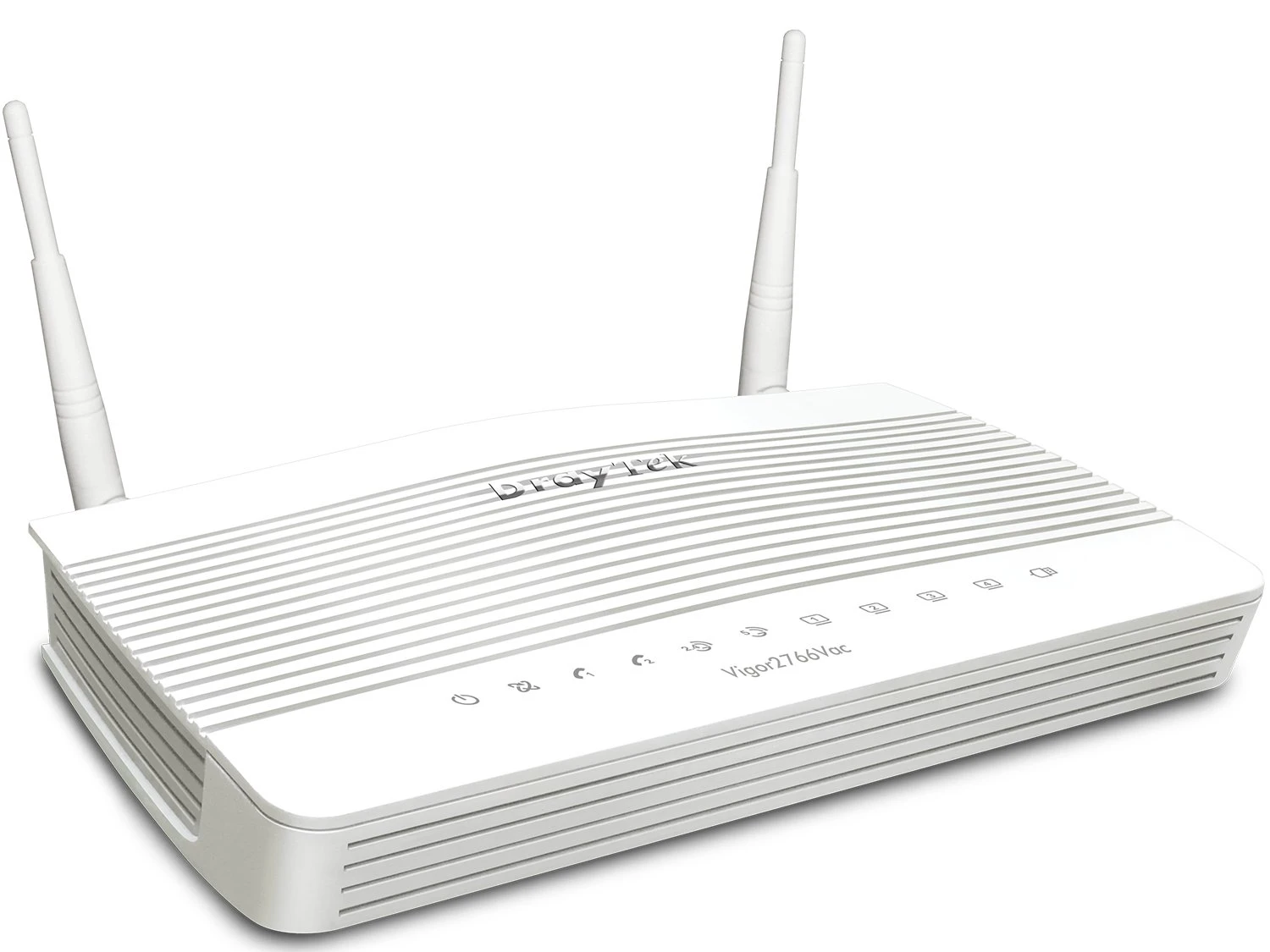

– DrayTek V2766Vac G.Fast Router
The V2766 is a G.Fast, VDSL or Ethernet WAN router with Gigabit performance, allowing you to make full use of DrayTek’s advanced feature set, with Quality of Service, VPN and Content Filtering. Connect the Vigor 2766 to Superfast Fibre with its integrated G.Fast and VDSL modem. Or connect to VirginMedia Cable and Ultrafast FTTP with Ethernet WAN.
Either connection, or a 4G USB modem can be used as the primary or Failover connections, so that if the main Internet connection goes down, the Vigor 2766 can use its backup connections to guarantee reliable Internet access and VPN connectivity.
The V2766Vac has integrated VoIP Telephone Ports allowing you to connect 2 analogue phones to VoIP. Great VoIP features such as auto VoIP QoS and configurable SIP ALG improve the reliability and quality of VoIP calls. All in one solution for Internet and Phone service.
DrayTek Vigor 2766Vac Router Key Highlights
- G.Fast (Ultrafast Fibre), VDSL2 (Superfast Fibre), ADSL and Ethernet Router with Failover
- Up to 950Mbps Firewall Throughput for Ethernet WAN
- 4 x Gigabit LAN Ports
- AC1300 – 11ac ‘Wave 2’ Dual Band Wireless
- 2 x PSTN Telephone (FXS) VoIP SIP ATA ports (‘Vac’ model) / 2x PSTN RJ-11 Telephone Ports
- 4 x LAN Subnets with VLANs (Port-based / 802.1q)
- SPI Firewall and Content Filtering
- Up to 200Mbps IPsec VPN Throughput
- 2 Dial-Out LAN-to-LAN or Remote Teleworker VPN Tunnels
- Power Consumption: 24 Watts maximum (Vac model)
- DrayTek SSL VPN and OpenVPN support
- Optional VigorCare Available
- Compatible with VigorACS central management platform
VoIP Features
- 2 x RJ-11 PSTN Telephone Ports (FXS)
- Integrated VoIP SIP ATA (Analogue Telephone Adapter)
- 6 x SIP Accounts with VoIP Setup Wizard
- Protocols: SIP, RTP / RTCP
- G.168 Line Echo-cancellation
- Dial Plan: Phone Book, Digit Map, Call Barring
- Voice Codecs: G.711 A / Law, G.723.1, G.726, G.729 A / B, VAD / CNG
- Tone Generation: DTMF, Dial, Busy, Ring Back, Call Progress
- DTMF Transmission: In Band, Out Band (RFC-2833), SIP info
- FAX / Modem Support with G.711 Pass-through and T.38
- Supplemental Services: Caller ID, Call Hold/Retrieve, Waiting, Transfer, Forwarding, Barring
- DND (Do not Disturb)
- MWI (Message Waiting Indicator) (RFC-3842)
- Hotline (Dial preset number when handset lifted)
- DrayTek V2766VAC Router
- Quick Start Guide
