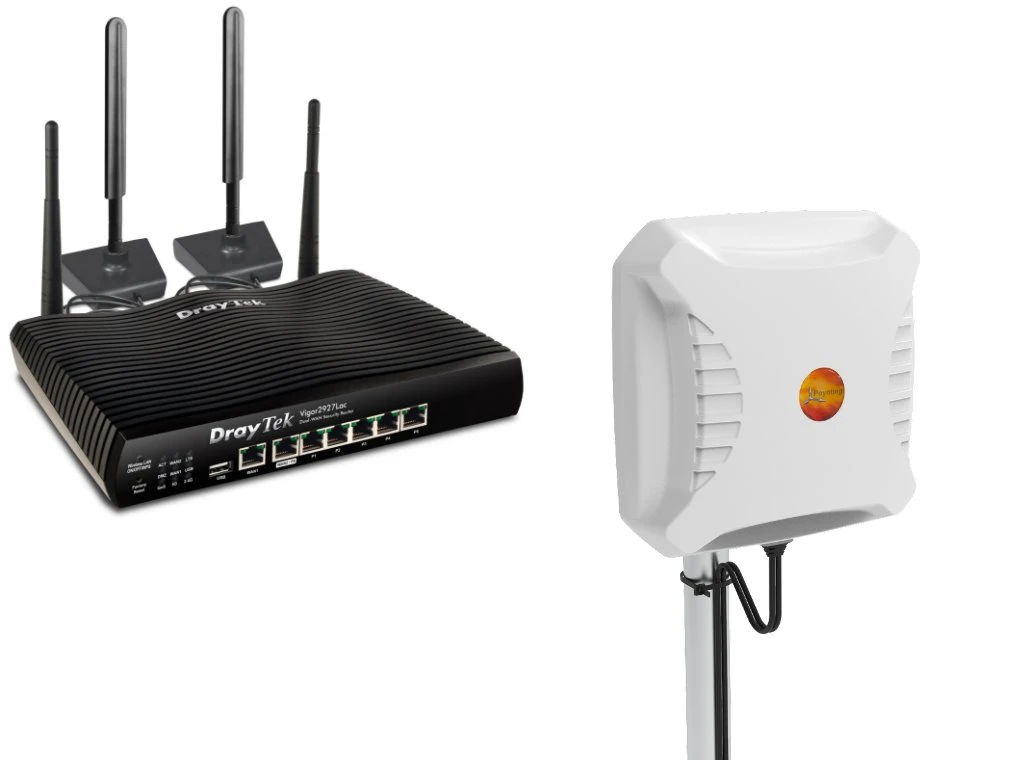

DrayTek V2927Lac WiFi 5 VPN Router & Poynting XPOL-2 Antenna

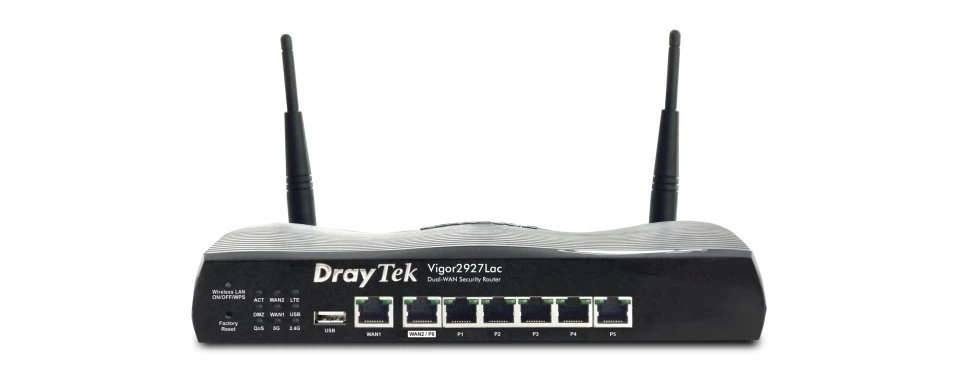

The DrayTek Vigor 2927Lac is a dual-WAN, load balancing, firewall & VPN router. The V2927Lac comes with extensive firewall, content filtering, and Quality of Service controls. It incorporates an integrated 4G/LTE modem so you can take advantage of mobile broadband, and with fast dual-band AC1300 Wi-Fi the V2927LAC-K provides a reliable, flexible, and secure network solution that’s ideal for small business and remote workers in home offices.

Handle Mobile network outages with Dual-SIM Failover. With up to 50 VPN tunnels, the Draytek Vigor V2927LAC-K can offer fast and secure VPN access. Enabling remote workers to access network resources and connecting remote sites.

Take advantage of DrayTek’s rich feature set and useful functionality such as Quality of Service, Route Policy, Hotspot Web Portal, VPN Matcher, DrayDDNS and more. You can configure and manage the Vigor 2927 series remotely through the VigorACS central management platform.

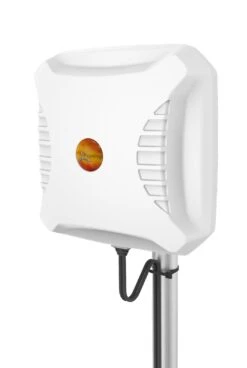

Poynting’s XPOL-2 Directional LTE MIMO Antenna provides a great solution for 4G / 3G and 2G networks, including Wi-Fi. It is a unique wall or pole mountable, cross polarised, full LTE band antenna which incorporates ultra wideband elements in a single housing. As the XPOL-2 is wideband, a new antenna is not needed per network operator, making it a cost effective solution for enhancing signal reception and throughput.

The XPOL-2 antenna increases signal reliability, ensures higher data throughput for users and provides a stable, high quality connection. This improves subscriber user experience and secures client retention. It is ideal for any application using the GSM network (LTE/HSPA/3G/EDGE/GPRS).

DrayTek Vigor 2927LAC Key Highlights

• Dual-WAN gigabit ethernet WAN router with load balancing & failover
• Up to 950Mbps throughput per WAN interface, 1800Mbps in total
• Up to 300Mbps IPsec VPN Throughput
• 50 LAN-to-LAN & remote teleworker VPN tunnels
• 25 DrayTek SSL VPN or OpenVPN tunnels
• 5+1 x Gigabit RJ-45 LAN ports
• 4G/LTE with dual-SIMs for second backup telco (‘L’ models only)
• AC1300 – 11ac ‘Wave 2’ dual band wireless (‘ac’ models only)
• 8 LAN subnets with VLANs (Port-based / 802.1q)
• SPI firewall and content filtering
• Optional VigorCare available
• Compatible with VigorACS Central Management platform

Poynting XPOL-2 Key Highlights

• High gain directional antenna (Max Gain: 9 dBi)
• Broadband covering multiple operational frequencies
• Frequency Bands: 698 – 960 MHz; 1710 – 2170 MHz; 2300 – 2700 MHz
• Wall or pole mountable
• Lightweight
• Waterproof
• Two cross polarised antennas in one enclosure (LTE & WIFI)
• Factory-mounted 5m Cable
• Cable type: HDF 195
• Connector type: 2 x SMA (Male) Gold plated -factory mounted
• IP65 Rating

What’s in the Box?

• V2927LAC Router: wall mounting kits; 1 x 2m Cat5 RJ-45 cable; 2 x detachable wireless LAN antennas; 2 x detachable LTE antennas; 2 x 1m LTE extension base; power supply; quick start guide
• XPOL-2: 1 x Z-shaped mounting bracket; user guide
