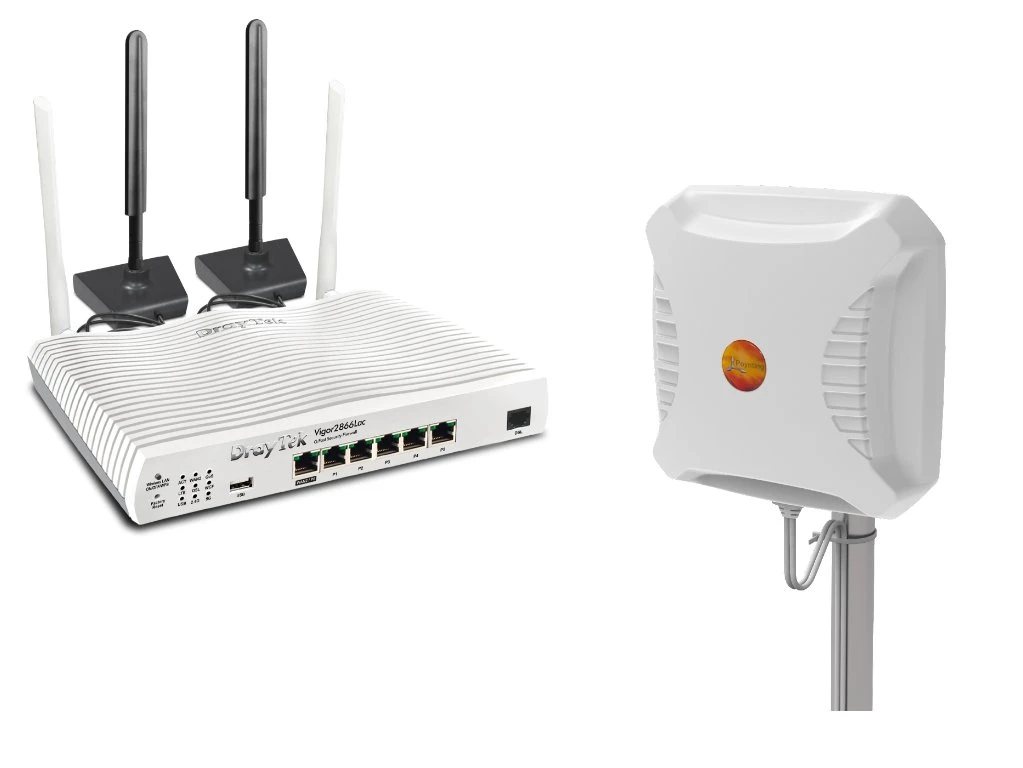

DrayTek V2866Lac G.Fast Router & Poynting XPOL-2 5G Antenna

The DrayTek V2866Lac is a G.Fast VDSL2/ADSL2+ Firewall VPN router. The V2866Lac router is ideally suited to connect directly to Ultrafast G.Fast broadband and Superfast VDSL. The V2866LAC-K provides advanced Firewall and Content Filtering, Quality of Service and VPN with Gigabit throughput. This router also provides 802.11ac (WiFi 5) simultaneous dual-band wireless, and the integrated 4G+ LTE modem takes full advantage of mobile broadband. The Vigor 2866Lac provides a reliable, flexible, and secure networking solution, that’s ideal for Home Offices, Small Business and Satellite Offices.

The Vigor 2866Lac router uses 2 x LTE aerials (antennae) which can rotate and tilt for optimum reception. The included extension bases provide a 1M extension cable to allow optimum positioning, avoiding obstructions, cabinets or equipment.

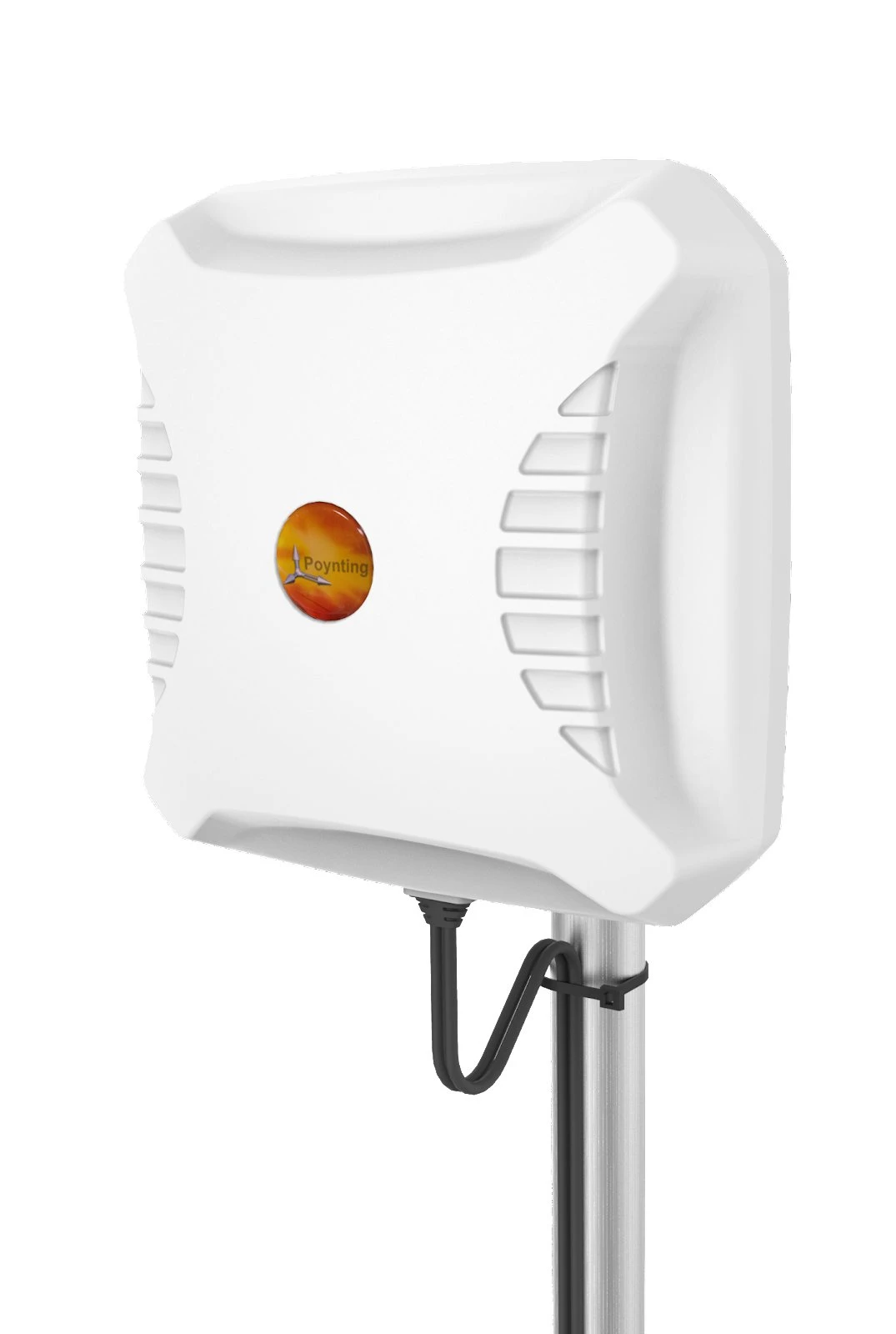

The XPOL-2-5G includes the newer 3400 – 3800 MHz bands, which were not previously covered by the “V2” antenna. This updated antenna version is suitable for 2G, 3G, 4G as well as 5G. The XPOL-2-5G will perform well in the following frequency bands: 698 – 960MHz, 1700 – 2170MHz, 2300 – 2700MHz & 3400 – 3800MHz. In addition, the gain in the 1700MHz and 2.7GHz is around 3dB higher than the “V2” over the same frequency bands.

DrayTek V2886LAC Key Highlights

• G.fast (Ultrafast Fibre), VDSL2 (Superfast Fibre), ADSL and Ethernet Router
• Multi-WAN Gigabit Performance Router with Load-Balancing & Failover
• Up to 950Mbps Firewall Throughput for Ethernet WAN
• 5+1 Gigabit RJ-45 LAN Ports
• Up to 800Mbps VPN Throughput with IPsec acceleration
• 32 LAN-to-LAN & Remote Teleworker VPN Tunnels
• 16 DrayTek SSL VPN or OpenVPN Tunnels
• AC1300 – 11ac ‘Wave 2’ Dual Band Wireless with Mesh (‘ac’ models only)
• 8 LAN Subnets with VLANs (Port-based / 802.1q)
• SPI Firewall and Content Filtering
• Optional VigorCare Available
• Compatible with VigorACS central management platform

Poynting XPOL-2-5G Key Highlights

• 2-3dB higher over all the bands compared to XPOL-2
• New 3400MHz-3800MHz, 5G band with 11dBi gain
• Frequency Bands: 698-960 MHz; 1710-2700 MHz; 3400-3800 MHz
• Broadband, including the latest 3.5GHz bands
• X-Polarised 2×2 MIMO Antenna
• Wall or pole mountable
• Lightweight & Rugged
• Weatherproof & waterproof (IP65)
• High pattern consistency across bands for 4G/5G carrier aggregation

What’s in the Box?

• V2866Lac Router: wall mounting kit; 2m Cat-5e RJ-45 cable; 2 x detachable wireless LAN antennas; 2 x detachable LTE antennas; 2 x 1m LTE extension base; power supply; quick start guide
• XPOL-2-5G: Z-shaped mounting bracket; coax cable included; user guide
