– Cradlepoint L950-C7B Adapter w/ NetCloud
The L950-C7B, despite its compact design, houses a Cat 7 modem, 2 x Ethernet interfaces with power over ethernet (PoE), a dual SIM capability to connect up to two carriers, and antenna. With this performance, many remote location operations and applications continue functioning while in failover.
The L950 Series cellular broadband adapter provides a cellular WAN link to networking equipment for a wide range of applications. In the event of a primary WAN link failure, it provides a secondary WAN connection to keep the network running.
The L950 can augment with a cellular connection as needed, based on regulations, for specific applications, or in the event of WAN performance degradation. While waiting for a wired connection to be deployed, organisations can create a secure day-1 LTE network connection to get operations up and running.
NetCloud can be used to configure these endpoints at scale to provide a full range of zero-touch deployment, debugging, and management services, as well as integrate into current configurations with standards-based routing, traffic shaping, and VPN compatibility. View failover data in the NetCloud Health dashboard and get quantified ROI in the NetCloud Insights failover report.
Cradlepoint L950-C7B LTE Adapter Key Highlights
- Embedded Cat 7 modem

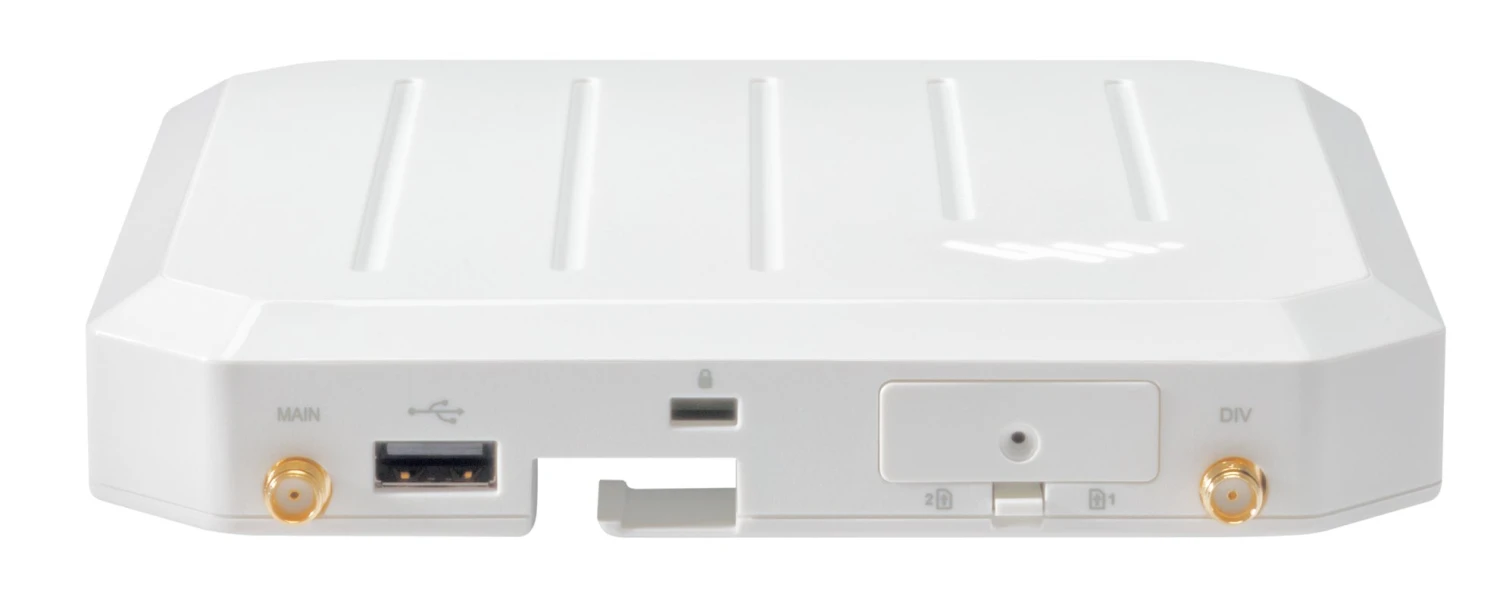

- 2 x SMA cellular antenna connectors
- 2 x GbE RJ45 (LAN/WAN switchable): LAN1 port pre-configured in IP NAT LAN mode; LAN2 port pre-configured in IP Passthrough LAN mode
- IP Passthrough: 940 Mbps
- Wi-Fi: N/A
- GNSS/GPS: Passive GNSS (multiplex with DIV antenna port)
- Maximise network uptime using LTE WAN for failover and link diversity
- Deploy within any existing networking or SD-WAN environment
- Configure with greater simplicity and confidence with the wizard-based installation application
- Utilise day-1 connectivity while waiting for terrestrial links
- Manage the Cradlepoint router and LTE adapter as one entity for singular control and visibility
- Troubleshoot adapter and in-line devices with advanced Out-of-Band Management to reduce truck rolls
- Offload primary connections during traffic surges and network congestion
NetCloud Key Highlights
- Cloud-managed for ease of deployment, remote management & reporting
- Includes NetCloud Perimeter for reliable IoT network securityNetCloud management and control service with branch-specific capabilities
- Customer choice of purpose-built hardware
- 24×7 support & limited lifetime warranty
- Option to purchase add-on plans for Advanced functionality
What’s in the Box?
- Cradlepoint L950-C7B LTE Adapter
- 2 x LTE cellular antennas
- 1 x SIM door screw
- 2 x #6 screws
- 1 x Getting Started reference sheet
- 1 x Safety, Regulatory, and Warranty guide
Please note: the L950-C7B is supplied directly from Cradlepoint and requires End User details upon ordering for the license details. The lead time from date of order is approximately 5-7 working days. For more information please contact us on 0330 043 3000 or email us at [email protected]
