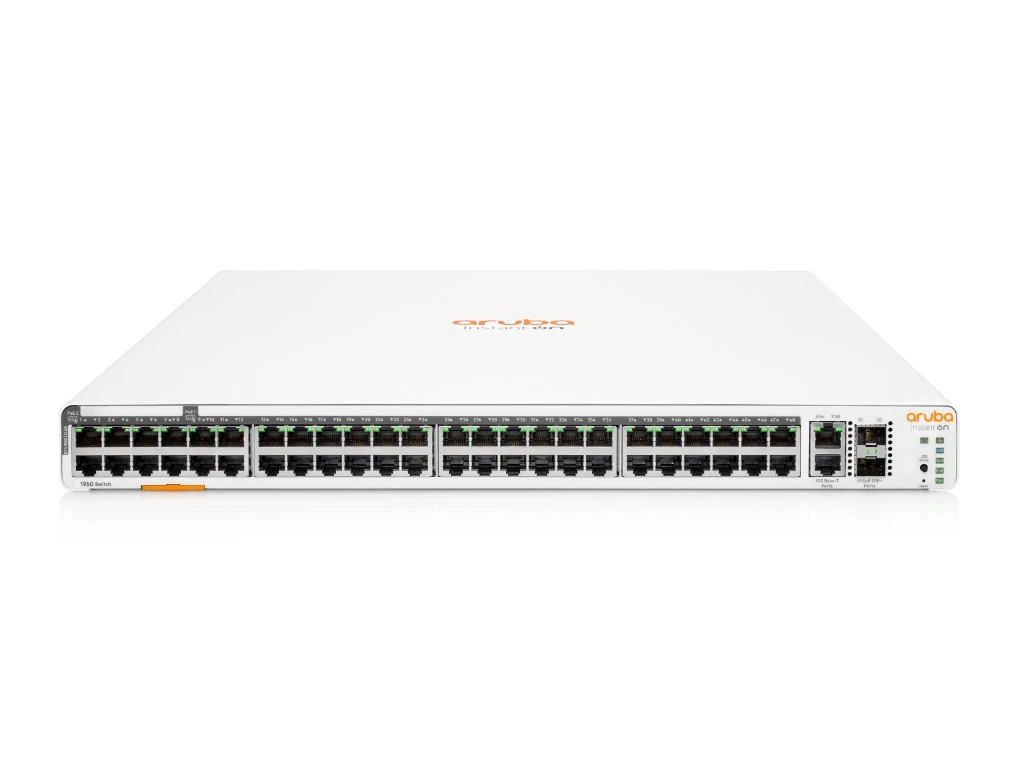

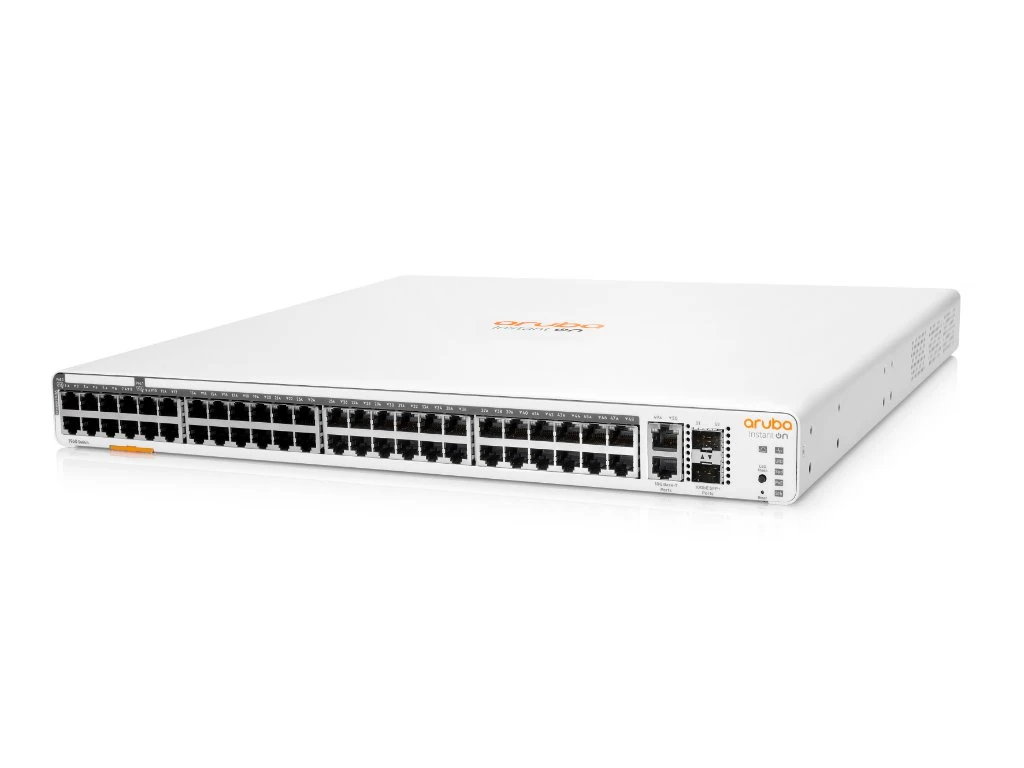

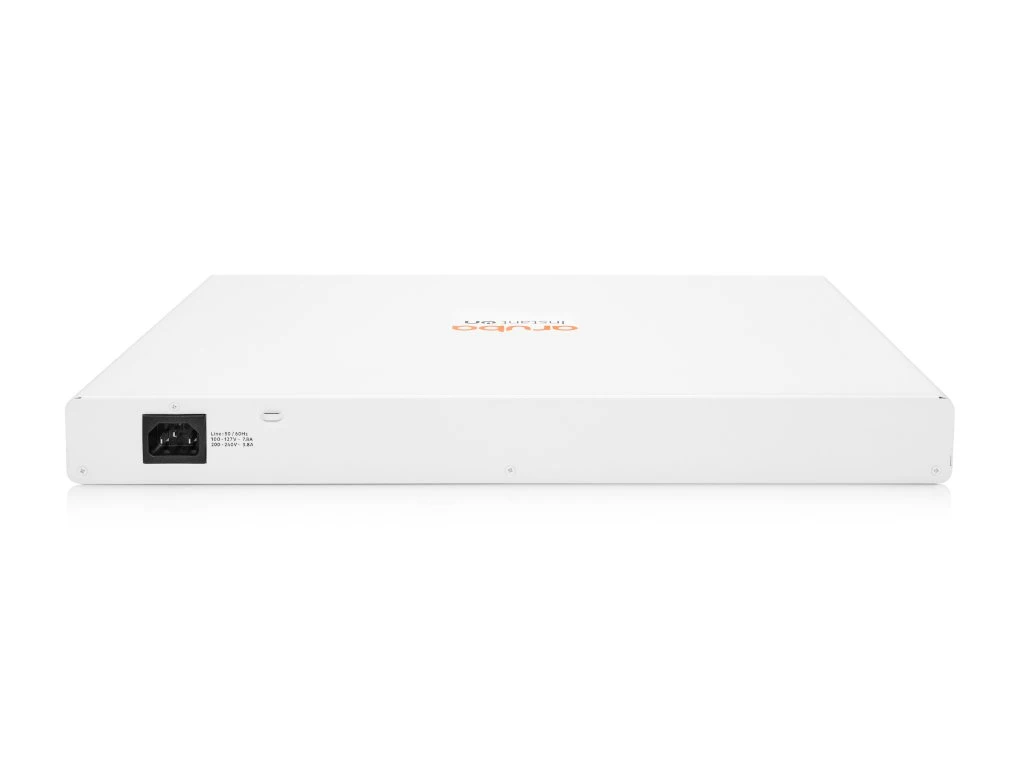

Aruba Instant On 1960 48G 2XGT 2SFP+ 600W PoE Switch (JL809A)

Each model of the Aruba Instant On 1960 Switch Series includes four 10GbE connections to connect to servers network storage devices or to other switches. Two connections of 10GBASE-T deliver 10GbE over copper Category 6a cabling for simple high-bandwidth connections to a maximum distance of 100 meters.

The Aruba Instant On mobile app and cloud-based web portal make cloud-managed stacking easy – just follow the recommendations to stack up to four Aruba Instant On 1960 switches and manage as a single entity. The Aruba Instant On mobile app automatically detects members making multiple stack members easy to setup and manage remotely.

The Aruba Instant On 1960 Switch Series lets you use VLANs and Access Control Lists to set bounds on what data can be seen by which users. Leverage 802.1X with a RADIUS server to ensure only known and authorised users can access your network. Supports automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.

For further information about Aruba’s range of switches and access points,

Aruba Instant On 1960 48-Port PoE Switch Key Highlights

• 48 x RJ-45 auto-sensing 10/100/1000 Mbps ports
• 2 x SFP+ 10GbE ports
• 2 x 10GBASE-T ports
• PoE capability: Total 600 W PoE Power (Up to 480 W of Class 6 or 600 W of Class 4 PoE)
• Switching Capacity: 176 Gbps
• True Stacking allows for redundancy while making it simple to configure, manage, and troubleshoot multiple switches as a single entity
• Stacking Capabilities: 4H height
• Throughput: 131 Mpps
• Memory and Processor: Single Core ARMv7 Cortex-A9 @800MHz
• Management Features: Aruba Instant On Cloud, convenient mobile app and web-based GUI for set up, management and troubleshooting; Web browser; SNMP Manager
• Luggage tag for easy cloud onboarding

What’s in the Box?

• Aruba Instant On 1960 Switch (JL809A)
