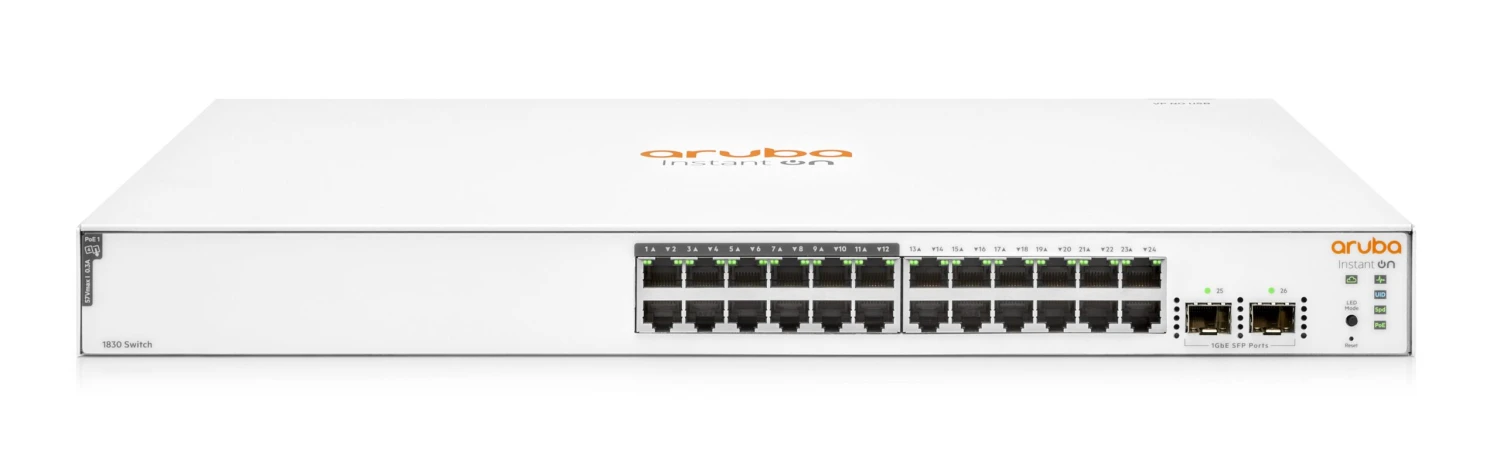

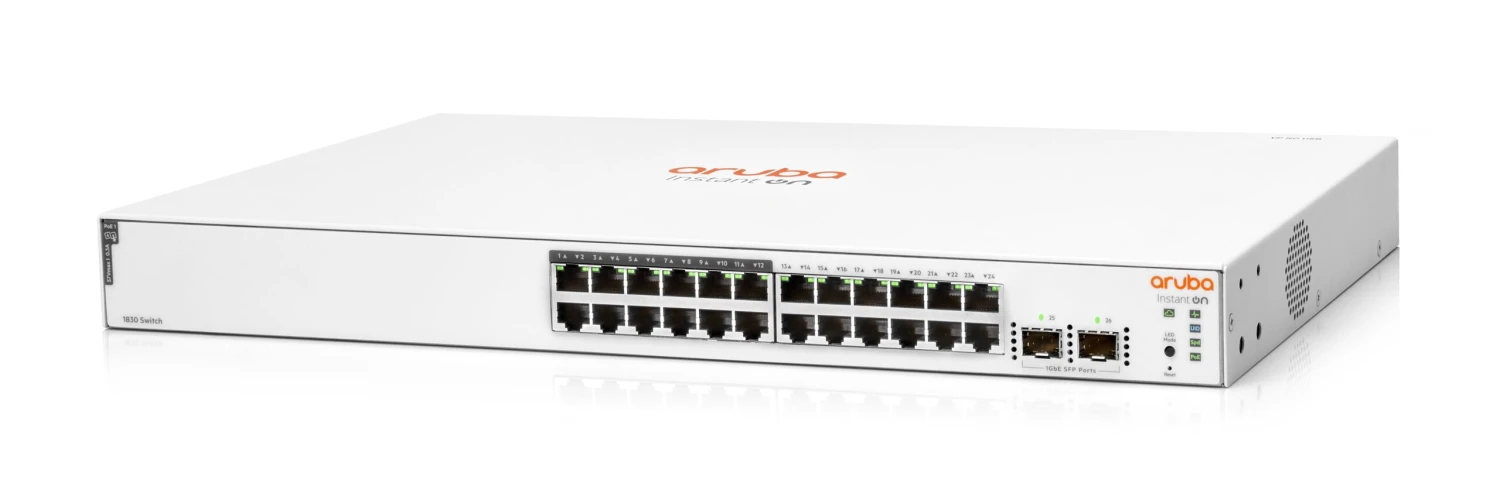

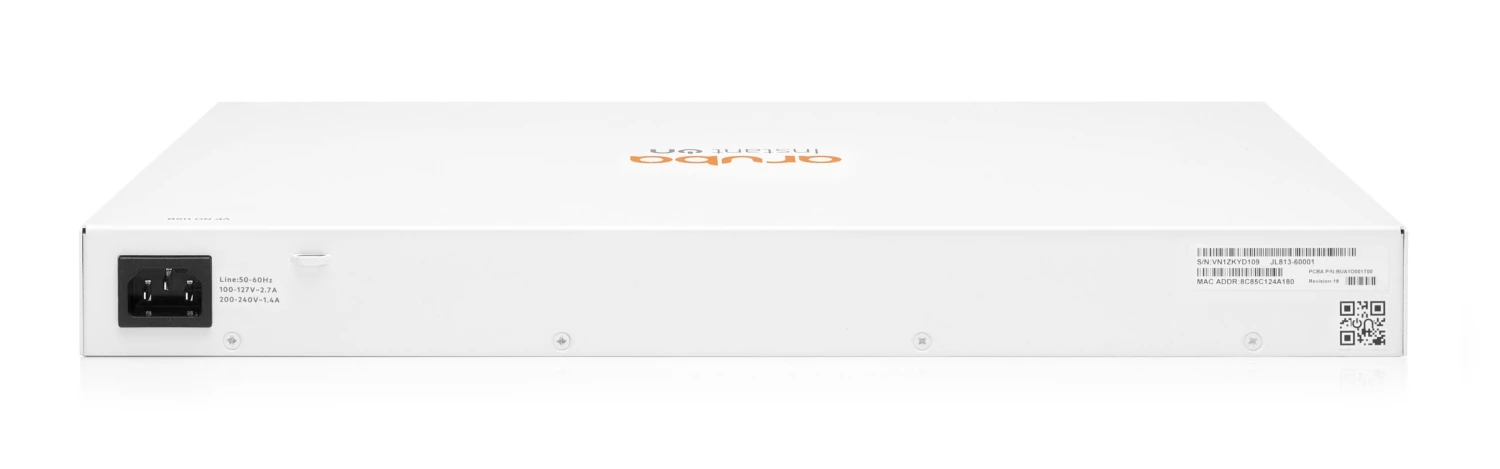

Aruba Instant On 1830 24-Port Switch With PoE And SFP – JL813A

The Aruba JL813A is an easy-to-deploy, smart-managed switch that is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands.

The JL813A offers Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes. With a flexible management dashboard and energy-efficient features, it can deliver a solid business network for SMBs with limited budgets.

The Aruba Instant On 1830 Switch Series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI.

The 1830 switches are enhanced with security features such as IEEE 802.1x, Global Storm Control, TPM (Trusted Platform module) based security, and VLANs to guard your network from unwanted or unauthorised access. Leverage 802.1X with a RADIUS server to verify only known and authorised users can access your network.

This JL813A has Energy Efficient Ethernet (EEE), and is compliant with 802.3az standard requirements to save energy during periods of low data activity.

This switch is suitable for mounting in an EIA standard 19 inch telco rack or equipment cabinet. It also supports table-top mounting, under-table mounting and wall mounting with ports facing either up or down.

For further information about Aruba’s range of switches and access points,

Aruba Instant On 1830 24-Port with PoE Key Highlights

• 24 x RJ-45 autosensing 10/100/1000 ports
• 12 x IEEE 802.3at Class 4 PoE (ports 1-12)
• 2 x SFP 1GbE ports
• PoE Power: 195 W Class 4 PoE
• Memory & Flash: ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash
• Packet Buffer: 1.5MB
• Throughput (Mpps): 38.68 Mpps
• Capacity: 52 Gbps
• MAC address table size (number of entries): 16,000 entries
• Fan for cooling
• Frequency: 50Hz/60Hz
• AC voltage: 100-127VAC / 200-240VAC
• Current: 2.7A/1.4A
• Internal power supply
• Supports rack mounting, table top mounting and wall mounting
• Device management: Aruba Instant On Cloud; Web browser; SNMP Manager
• Product Dimensions (DxWxH): 253mm x 443mm x 43.9mm
• Weight: 3.47 kg; 7.65 lb

What’s in the Box?

• Aruba JL813A
